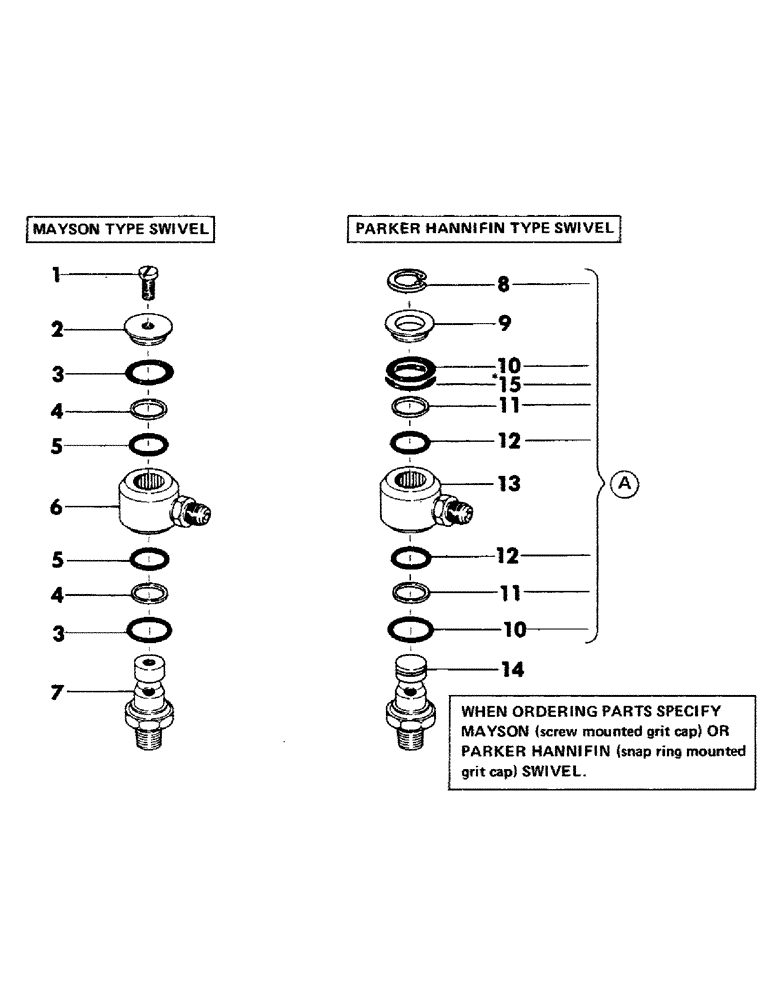

Запчасти Case 35YC (076) - TRACK SERVICE BRAKE SWIVEL (07) - HYDRAULIC SYSTEM

S209351

FITTING

SWIVEL, track brake (Mayson) - complete (Consists of items 1 thru 7)

1шт.

1

S63916

SCREW

fillister head - no. 10 NC x 3/8"

1шт.

2

S7989

CAP

grit

1шт.

3

S5709

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - .737" ID x .937" OD

2шт.

4

S80212

WASHER

RING, back up

2шт.

5

S6478

SEAL

"O" RING - .612" ID x .812 OD

2шт.

6

S80213

SLEEVE

1шт.

7

S79933

LINK

STEM

1шт.

S209351

FITTING

SWIVEL, track brake (Parker Hannifin) - complete (Consists of items 8 thru 15)

1шт.

Change in listing.

1шт.

8

RING, snap

1шт.

9

NSS

NOT SOLD SEPARAT

CAP, grit

1шт.

10

"O" RING

2шт.

11

RING, back up

2шт.

12

"O" RING

2шт.

13

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

14

NSS

NOT SOLD SEPARAT

STEM

1шт.

Change in listing.

1шт.

15

(A) "O" RING

1шт.

Added listing.

1шт.

a

S95177

KIT

service (Consists of items 8, 10, 11, and 15)

1шт.

Change in listing.

1шт.
