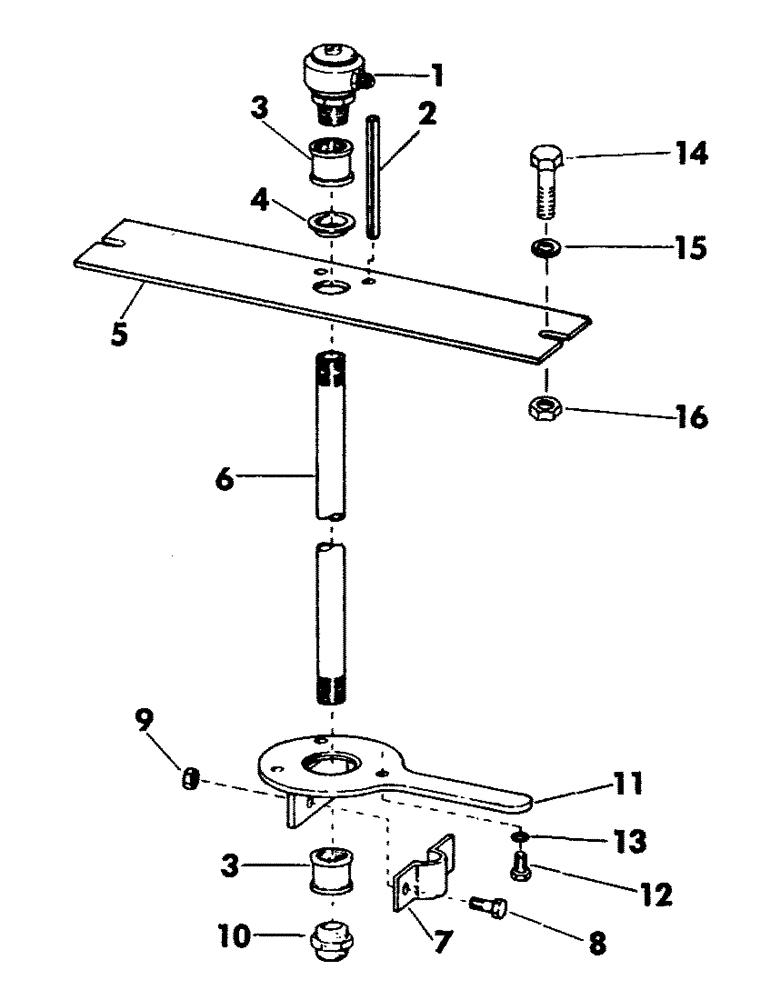

Запчасти Case 35YC (075) - INNER BRAKE SWIVEL, (TRACK) (07) - HYDRAULIC SYSTEM

S39517

SWIVEL CONNECTION

SWIVEL, inner brake - (Consists of items 1 thru 10)

1шт.

1

SWIVEL, track brake service - (For breakdown, see figure 76)

1шт.

2

S5467

PIN, ROLL

- 5/16" x 4" long

2шт.

3

S17706

COUPLING

- 1/4" NPT female

2шт.

4

S71802

NYLON BEARING,0.756" ID x 1.187" OD x 0.375"

BEARING, nylon

1шт.

5

S209352

GUIDE

PLATE, guide - (Includes items 2 and 4)

1шт.

6

S79230

NIPPLE, LUBE

NIPPLE, pipe - 1/4" NPT x 24-1/4" long

1шт.

7

S48542

CLAMP

1шт.

8

S2401

BOLT

CPSW - 3/8" NC x 1" gr 5

2шт.

9

S17167

INSTRUCTION

NUT, self locking 3/8" NC

2шт.

10

S101303

ADAPTER

- (1/4" tube) - 1/4" NPT male x 7/16" - 20 male - 37 degree flared

1шт.

11

S209353

PLATE

lower swivel mounting

1шт.

12

S2376

CPSW - 5/16" NC x 1" gr 5

3шт.

13

S4396

WASHER, LOCK

- 5/16"

3шт.

14

S2402

BOLT

CPSW - 3/8" NC x 1-1/4" gr 5

2шт.

15

S7385

INSTRUCTION

WASHER, flat - 3/8"

2шт.

16

S17169

INSTRUCTION

NUT, self locking - 3/8" NC

2шт.
