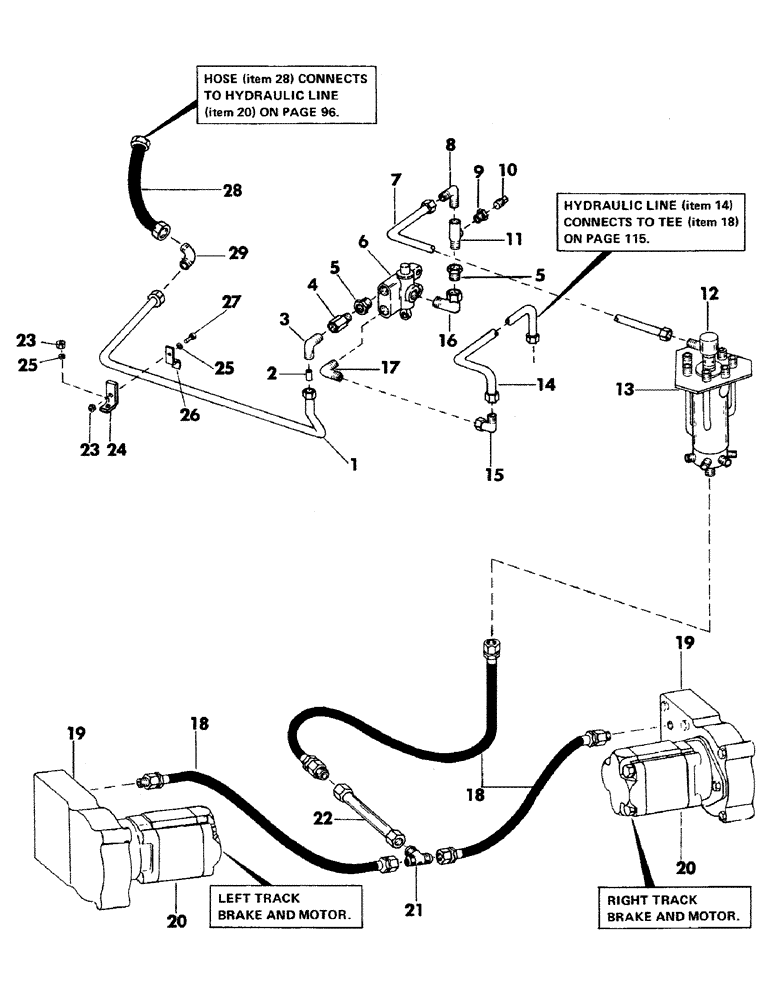

Запчасти Case 35YC (073) - TRACK BRAKE HYDRAULICS (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
S220518
LINE, hydraulic 0.375" OD
1шт.
2
S89669
VALVE
REGULATOR, flow
1шт.
3
S7734
ELBOW
90 degrees (3/8" tube) - 1/4" NPT male x 9/16" - 18 male - 37 degree flared
1шт.
4
S78869
VALVE
check
1шт.
5
S7772
BUSHING
reducing - 1/2" NPT male x 3/8" NPT female
2шт.
6
VALVE, track - (For breakdown, see figure 78)
1шт.
7
S220385
LINE, hydraulic 0.375" OD x 7.25, 14.25" L
1шт.
8
S63426
ELBOW
90 degrees - (5/16" tube) - 9/16" - 18 male x 3/8" NPT male
1шт.
9
S7780
BUSHING
reducing - 3/8" NPT male x 1/4" NPT female
1шт.
10
S15161
PLUG, pipe - 1/8" NPT
1шт.
11
S17935
TEE
- 3/8" NPT female x 3/8" NPT male x 3/8" NPT female
1шт.
12
SWIVEL, inner - (For breakdown, see figure 75)
1шт.
13
SWIVEL, 7-port hydraulic - (For breakdown, see figure 127)
1шт.
14
S220386
TUBE,0.375" OD
LINE, hydraulic
1шт.
15
S10356
ELBOW
90 degrees - (3/8" tube) - 9/16" - 18 male x 9/16" - 18 female - 37 degree flared
1шт.
16
S17526
ELBOW
90 degree street - 1/2" NPT male x 1/2" NPT female
1шт.
17
S63427
ELBOW
90 degrees - (3/8" tube) - 9/16" male x 1/2" NPT female - 37 degree flared
1шт.
18
S401729
HOSE
high pressure - 1/4" ID x 38" long - (7/16" - 20 male and female pressed on couplings)
3шт.
19
BRAKE, track drive - (For breakdown, see figure 79)
2шт.
20
MOTOR, track drive - (For breakdown, see figure 131)
2шт.
21
S60496
TEE
- (1/4" tube) - 7/16" - 20 male x 7/16" - 20 male x 7/16" - 20 male - 37 degree flared
1шт.
22
S404530
LINE,1/4" OD x 3.5" L
hydraulic
1шт.
23
S17167
INSTRUCTION
NUT, self locking - 3/8" NC
2шт.
24
S93424
ANGLE
BRACKET
1шт.
25
S7385
INSTRUCTION
WASHER, flat - 3/8"
2шт.
26
S64985
CLAMP
1шт.
27
S2401
BOLT
CPSW - 3/8" NC x 1" gr 5
1шт.
28
S77121
HOSE
high pressure - 1/4" ID x 20" long - (9/16" - 18 female pressed on couplings)
1шт.
29
S101875
ELBOW
90 degrees - (3/8" tube) - 9/16" - 18 male x 9/16" - 18 male - 37 degree flared
1шт.
Выбрано товаров: 29
