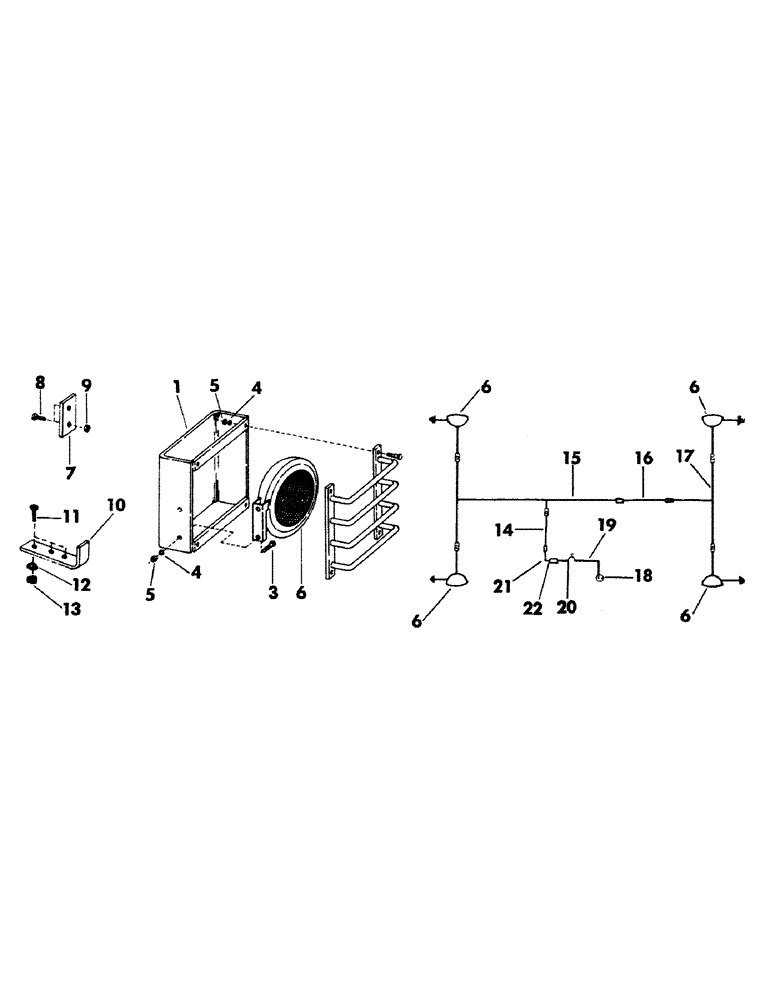

Запчасти Case 35YC (168) - WORKLIGHTS AND GUARDS WITH ELECTRICAL (06) - ELECTRICAL SYSTEMS

1

S212579

GUARD

4шт.

2

S212578

PROTECTOR

GUARD

4шт.

3

S2402

BOLT

CPSW - 3/8" NC x 1-1/4" Gr 5

24шт.

4

S4397

WASHER

lock - 3/8"

24шт.

5

S4222

NUT

- 3/8" NC

24шт.

6

S204221

LIGHT

4шт.

S94624

BULB

light - (Not illustrated)

4шт.

7

S86493

SPACER

4шт.

8

S2471

BOLT

CPSW - 7/16" NC x 1-1/4" Gr 5

8шт.

9

S17086

NUT

self locking - 7/16" NC

8шт.

10

S214615

BRACKET

4шт.

11

S2377

SCREW

CPSW - 5/16" NC x 1-1/4" Gr 5

12шт.

12

S7381

WASHER

flat - 5/16"

12шт.

13

231-1445

NUT,5/16"-18, GB

NUT, self locking - 5/16" NC

12шт.

14

S208710

WIRE, jumper - 14 gauge x 58" long - (Used with high cab only)

1шт.

15

S214635

WIRE ASSEMBLY - 14 gauge x 340" long

1шт.

16

S86527

WIRE, jumper - 14 gauge x 109" long - (Used with "E" boom only)

1шт.

17

S86526

WIRE ASSEMBLY - 14 gauge x 27" long

1шт.

18

S76366

SWITCH

ignition

1шт.

19

S206233

ELECTRICAL WIRE

WIRE, jumper - 14 gauge x 5" long

1шт.

20

S16866

SWITCH

light

1шт.

21

S209089

HARNESS

WIRE ASSEMBLY - 14 gauge x 8" long - (Includes item 22)

1шт.

22

S16869

HOLDER

fuse

1шт.
