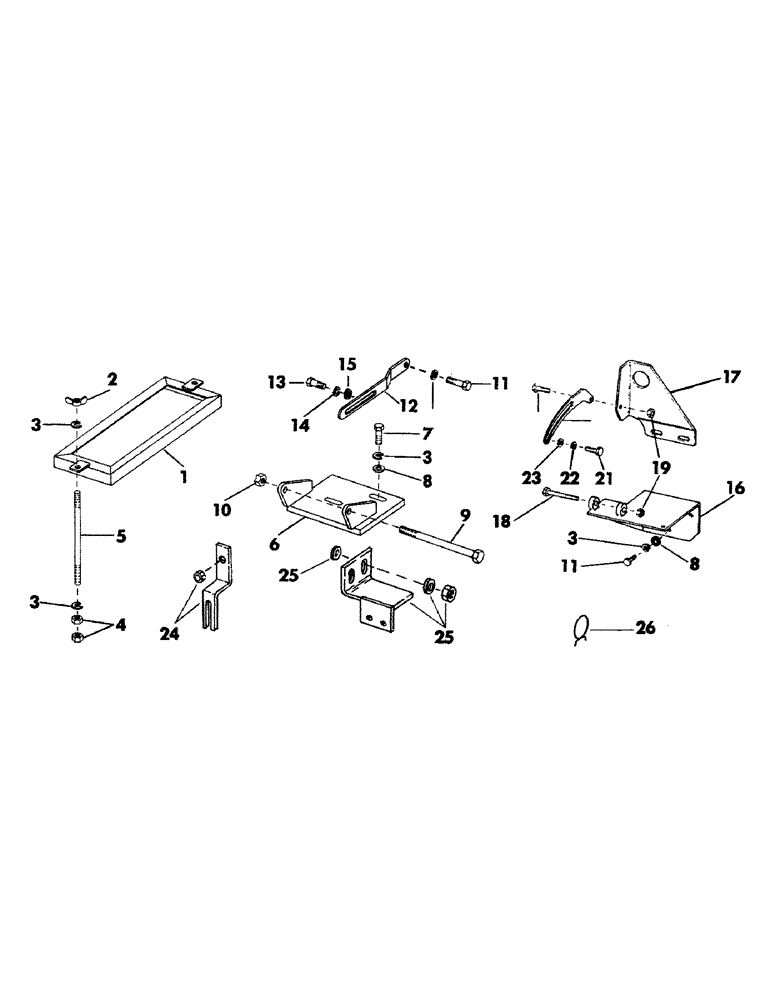

Запчасти Case 35YC (155) - ELECTRICAL MOUNTING BRACKETS AND HARDWARE (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
S202780
BRACKET
battery hold-down
2шт.
2
S77941
NUT, wing - 3/8" NC
4шт.
3
S4397
WASHER
lock - 3/8"
1шт.
4
S4222
NUT
- 3/8" NC
8шт.
5
S78386
STUD
ROD
4шт.
6
S505695
BRACKET, alternator mounting - (Used on Case 336 engine)
1шт.
7
S2402
BOLT
CPSW - 3/8" NC x 1-1/4" Gr 5
1шт.
8
S7385
INSTRUCTION
WASHER, flat - 3/8"
1шт.
9
S2485
BOLT
CPSW - 1/2" NC x 6" Gr 5 - (Used on Case 336 engine)
1шт.
10
S17169
INSTRUCTION
NUT, self locking - 1/2" NC - (Used on Case 336 engine)
1шт.
11
S2401
BOLT
CPSW - 3/8" NC x 1" Gr 5
1шт.
12
S219335
BRACKET
alternator adjusting - (Used on Case 336 engine)
1шт.
13
S2465
BOLT (MACHINE)
CPSW - 1/2" NC x 1" Gr 5 - (Used on Case 336 engine)
1шт.
14
S4399
WASHER
lock - 1/2" - (Used on Case 336 engine)
1шт.
15
S7395
WASHER
flat - 1/2" - (Used on Case 336 engine)
1шт.
16
S209833
BRACKET
alternator mounting - (Used on Detroit Diesel 4-53 engine)
1шт.
17
S38428
BRACKET
alternator adjusting mounting - (Used on Detroit Diesel 4-53 engine)
1шт.
18
S2411
BOLT
CPSW - 3/8" NC x 3-1/2" Gr 5 - (Used on Detroit Diesel 4-53 engine)
1шт.
19
S17167
INSTRUCTION
NUT, self locking - 3/8" NC - (Used on Detroit Diesel 4-53 engine)
2шт.
20
S200898M1
STRAP
BRACKET, alternator adjusting - (Used on Detroit Diesel 4-53 engine)
1шт.
21
S2376
CPSW - 5/16" NC x 1" Gr 5
1шт.
22
S7378
WASHER
flat - 5/16" - (Used on Detroit Diesel 4-53 engine)
1шт.
23
S4396
WASHER, LOCK
- 5/16" - (Used on Detroit Diesel 4-53 engine)
1шт.
24
S93331
BRACKET, micro switch mounting - (Brake warning system)
1шт.
231-1444
NUT,1/4"-20, GB
NUT, LOCK, 1/4"-20, GB
2шт.
25
S219384
BRACKET, micro switch mounting - (Brake warning system)
1шт.
S7395
WASHER
flat - 1/2"
2шт.
S7387
WASHER
flat - 13/16"
4шт.
S2425
CPSW - 3/8" NC x 1-3/8" Gr 5
2шт.
Added listing.
1шт.
S17167
INSTRUCTION
NUT, self locking - 3/8" NC
2шт.
26
S16608
CLAMP
1шт.
Выбрано товаров: 32
