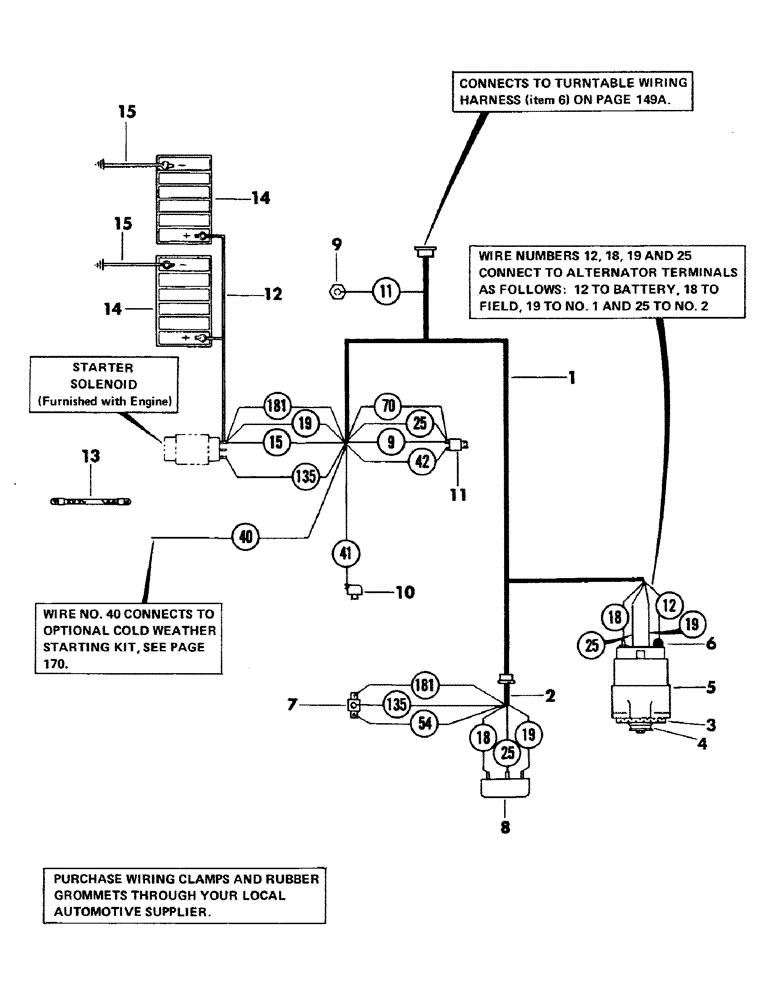

Запчасти Case 35YC (150) - ENGINE WIRING HARNESS FOR: CASE 336 BDT DIESEL ENGINE (06) - ELECTRICAL SYSTEMS

1

S603080

HARNESS, engine wiring

1шт.

2

S220887

HARNESS

engine components

1шт.

3

S32921

FAN

alternator

1шт.

4

S219716

PULLEY

alternator

1шт.

5

S84908

ALTERNATOR

1шт.

6

S64612

BOOT

rubber

1шт.

7

S2350

MUFFLER

SCREW, flat head machine - 1/4" NC x 3/4" Gr 5

2шт.

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

8

S62714

REGULATOR

voltage

1шт.

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

9

S27825M1

X

SENDING UNIT, engine temperature

1шт.

10

S27826M1

X

SENDING UNIT, engine oil pressure

1шт.

11

S63884

SWITCH

pressure - for warning light

1шт.

12

S217866M1

CABLE, Serial Range: battery-starter

1шт.

13

S81455

STRAP

ground

2шт.

S7385

INSTRUCTION

WASHER, flat - 1/2"

2шт.

S17169

INSTRUCTION

NUT - 1/2" NC

2шт.

14

NSS

NOT SOLD SEPARAT

BATTERY - 12 volt

2шт.

15

S45608

STRAP

CABLE, battery ground

2шт.

S7385

INSTRUCTION

WASHER - 1/2"

2шт.

S17167

INSTRUCTION

NUT - 3/8" NC

2шт.
