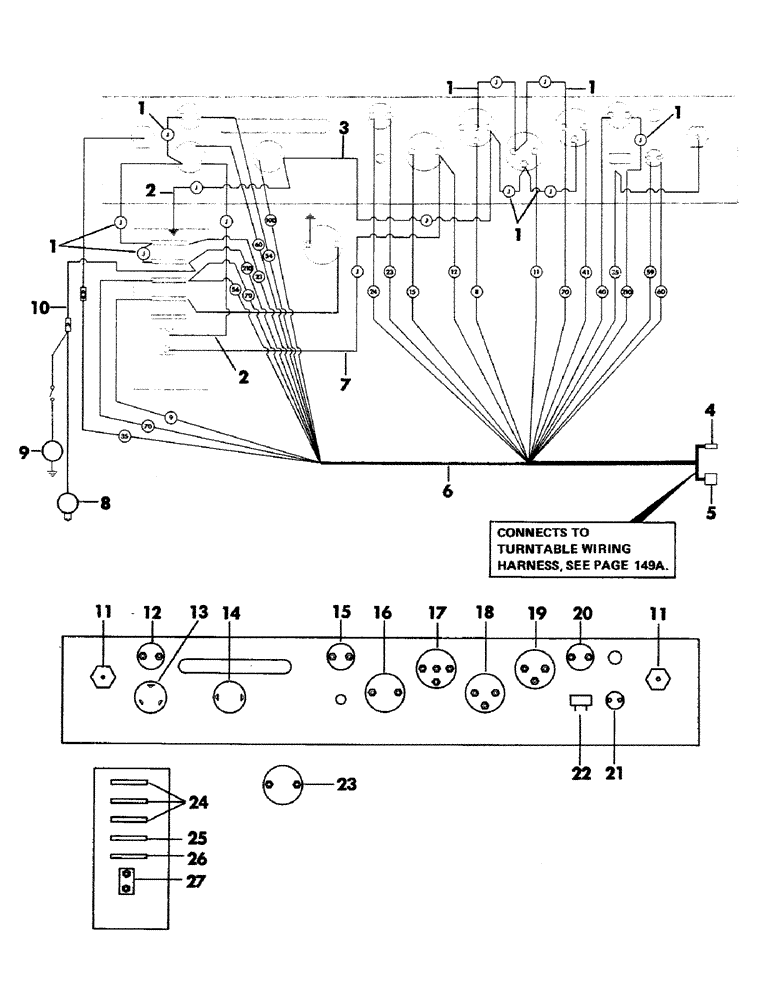

Запчасти Case 35YC (148) - INSTRUMENT PANEL WIRING HARNESS AND ELECTRICAL COMPONENTS (06) - ELECTRICAL SYSTEMS

1

S208230

WIRE, jumper - No. 12 gauge x 4" long

7шт.

2

S208228

WIRE, jumper - No. 12 gauge x 9" long

2шт.

3

S209787

ELECTRICAL WIRE

WIRE, jumper - No. 14 gauge x 20" long

1шт.

4

S72216

ROD, CONNECTING

CONNECTOR BODY

1шт.

5

S72172

ROD, CONNECTING

CONNECTOR BODY

1шт.

6

S223282

HARNESS

WIRING HARNESS, instrument panel - (Includes items 4 and 5) - (Supersedes S220679)

1шт.

Change in listing.

1шт.

7

S213755

ELECTRICAL WIRE

WIRE, jumper - No. 10 gauge x 22" long

1шт.

S62256

LOOM

(Bulk) - 1 piece - 22" long - (Over wire for protection)

1шт.

8

S85807

FAN

defroster

1шт.

S40799M1

SCREW, self tapping - 1/4" NC x 1/2"

3шт.

9

MOTOR, wiper - (For wiper motor and switch, see item 29 and 32 on page 36)

1шт.

S78162

CLAMP

-, Serial Range: (Wiper-cab)

5шт.

S62256

LOOM

(Bulk) - 1 piece - 70" long - (Around wiper wire for protection)

1шт.

10

S221693

WIRE, jumper - No. 14 gauge x 73" long

1шт.

11

S85560

LIGHT

panel

2шт.

12

S63242

BUTTON

starter

1шт.

13

S76366

SWITCH

ignition

1шт.

14

S96034

LIGHT

brake

1шт.

S96096

BULB

1шт.

15

S63242

BUTTON

horn

1шт.

16

S27828M1

AMMETER

1шт.

17

S27829M1

X

GAUGE, fuel

1шт.

18

S27824M2

X

GAUGE, engine temperature

1шт.

19

S27827M2

X

GAUGE, oil pressure

1шт.

20

S63242

BUTTON

cold weather starting - (Furnish with optional cold weather starting kit)

1шт.

21

SWITCH, heater - (Furnish with heater)

1шт.

22

S16866

SWITCH

panel light

1шт.

23

S213391M1

HOURMETER

- (Furnish with wires)

1шт.

S85106

FLANGE

DAMPNER

1шт.

S14523

SCREW, machine - No. 4 NC x 3/4"

3шт.

S2128

LOCK WASHER

WASHER, lock - No. 6

3шт.

S17259

NUT

- No. 4 NC

3шт.

S78681

TERMINAL CONNECTOR

TERMINAL - (Crimp to hourmeter wire for ground)

1шт.

S70973

TERMINAL CONNECTOR

TERMINAL - (Crimp to hourmeter wire to fuse panel)

1шт.

24

S66917

FUSE

- 15 amp

3шт.

25

S92483

FUSE

- 7.5 amp

1шт.

26

S49918

BREAKER

circuit

1шт.

S14514

SCREW, machine - No. 10 NC x 5/8" NC - (Mounts breaker to fuse holder)

2шт.

S7480

WASHER, LOCK

- No. 10

2шт.

S17263

NUT

- No. 10 NC

2шт.

S17276

NUT

- No. 10 NF - (For breaker terminal post)

2шт.

S7340

WASHER, LOCK

- No. 10 - (Internal tooth)

2шт.

27

S213686

HOLDER

fuse

1шт.

S14869

SCREW, machine - No. 6 NC x 3/4" - (Mounts fuse holder to instrument panel)

2шт.

S2128

LOCK WASHER

WASHER, lock - No. 6

2шт.

S17261

NUT

- No. 6

2шт.
