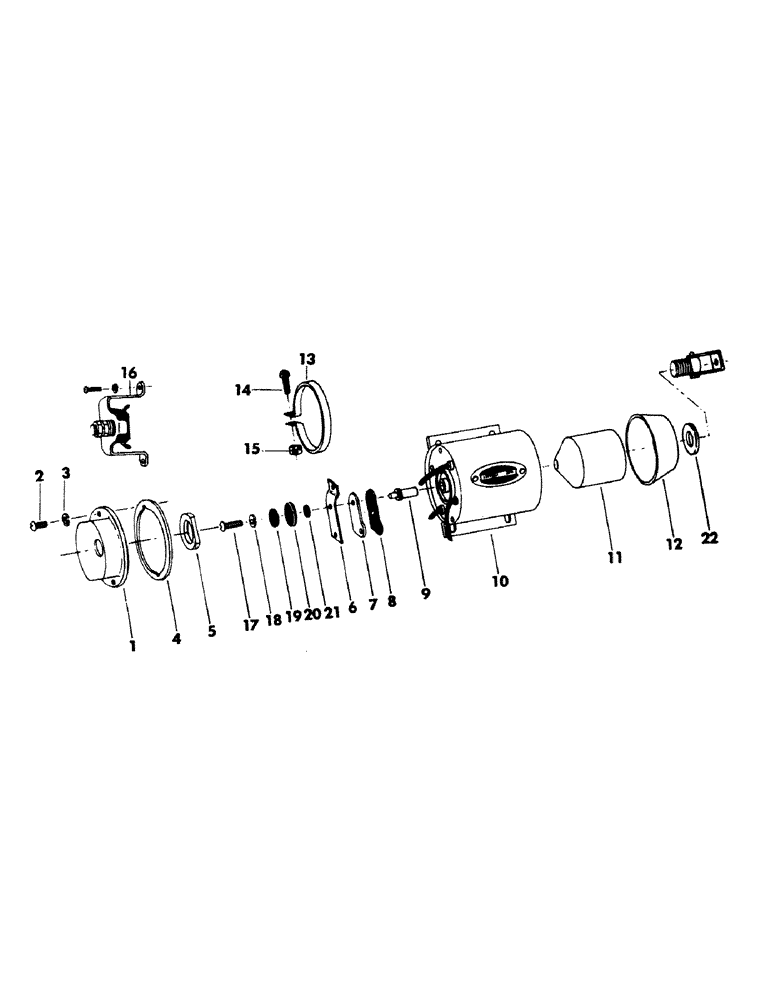

Запчасти Case 35YC (166) - FAST HOIST SOLENOID (05) - UPPERSTRUCTURE CHASSIS

S205334

SOLENOID

switch - complete (Consists of items 1 thru 23)

2шт.

1

S73263

COVER

1шт.

2

S14453

SCREW, machine - No. 8 NC x 5/16"

2шт.

3

S4395

WASHER, LOCK

- 1/4"

2шт.

4

S73264

GASKET

1шт.

5

S73265

GASKET

1шт.

6

S73266

SPRING

contact

1шт.

7

S73267

CONTACT

AND SUPPORT

1шт.

8

S73268

INSULATOR

contact

1шт.

9

S73269

ROD

push

1шт.

10

NSS

NOT SOLD SEPARAT

CASE AND COIL

1шт.

11

S73270

PLUNGER

1шт.

12

S73271

BOOT

plunger

1шт.

13

S73272

CLAMP, boot

1шт.

14

S14515

SCREW, machine - No. 10 NF x 5/8"

1шт.

15

S17262

NUT

- No. 10 NF

1шт.

16

S73273

BRACKET, terminal

1шт.

17

S14491

SCREW, machine - No. 8 NC x 1/2"

1шт.

18

S7479

WASHER

lock - No. 8

1шт.

19

S7371

WASHER

flat - 3/16"

1шт.

20

S73274

WASHER

insulated

1шт.

21

S73275

WASHER

insulated

1шт.

22

WASHER, space adjusting screw

1шт.

23

S73276

LINK

AND SCREW ASSEMBLY

1шт.
