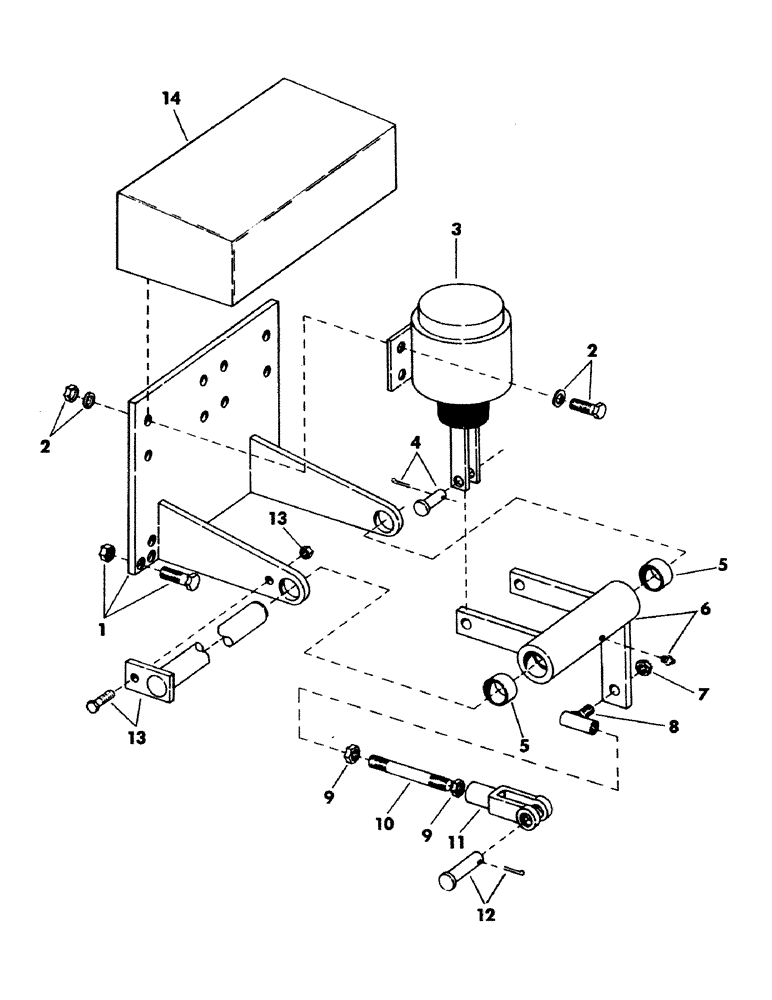

Запчасти Case 35YC (162) - FAST HOIST LINKAGE AND ATTACHING PARTS (05) - UPPERSTRUCTURE CHASSIS

1

S219436

BRACKET, solenoid mounting

1шт.

S2467

BOLT

CPSW - 1/2" NC x 1-1/2" Gr 5

3шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

3шт.

2

S4320

NUT - 1/4" NC

8шт.

S4495

WASHER, lock - 1/4"

8шт.

S7380

WASHER

flat - 1/4"

8шт.

S2351

BOLT

CPSW - 1/4" NC x 1" Gr 5

8шт.

3

SOLENOID - (For breakdown, see figure 166)

2шт.

4

S10737

CLEVIS PIN

PIN, clevis - 5/16" x .766" grip length

1шт.

S4627

SPLIT PIN

PIN, cotter - 1/8" x 1" long

1шт.

5

S63168

NEEDLE BEARING,0.625" ID x 0.8125" OD x 0.5"

BEARING, needle

2шт.

6

S220218

ARM ASSY.

BELLCRANK

1шт.

S46960

FITTING

grease - 1/4" NPT - (Straight)

1шт.

7

231-2446

NUT,3/8"-24, GB

NUT, self locking - 3/8" NF

1шт.

8

S215594

BALL

JOINT, ball

1шт.

9

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" NF

1шт.

10

S91966

ROD, connecting

1шт.

11

S12514

YOKE

1шт.

12

S10768

PIN

clevis - 3/8" x 1.1016" grip length

1шт.

S4643

SPLIT PIN

PIN, cotter - 5/32" x 1-1/2" long

1шт.

13

S219444

SHAFT

1шт.

S2352

BOLT

CPSW - 1/4" NC x 1-1/4" Gr 5

1шт.

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

14

S220790

SHIELD

1шт.
