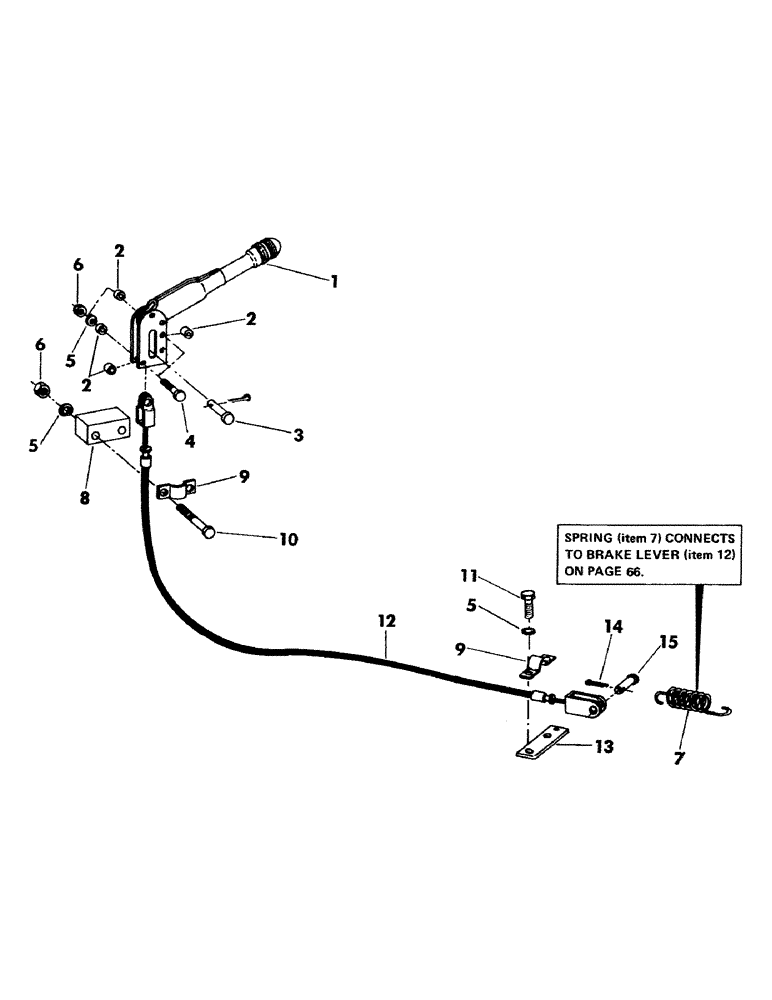

Запчасти Case 35YC (067) - SWING BRAKE CONTROL (05) - UPPERSTRUCTURE CHASSIS

1

S26639

LEVER

hand brake - (Includes item 3 and (3) of item 2)

1шт.

2

S48851

SPACER

hand brake - (2 used with brake lever and 2 used to space lever from mounting)

4шт.

3

S10742

PIN

clevis - 5/16" x 1.266" grip length

1шт.

4

S2409

BOLT

CPSW - 3/8" NC x 3" gr 5

2шт.

5

S4397

WASHER

lock - 3/8"

6шт.

6

S4222

NUT

- 3/8" NC

4шт.

7

S202938

SPRING

valve return

1шт.

8

S64927

SPACER

1шт.

9

S48542

CLAMP

2шт.

10

S2406

BOLT (MACHINE)

CPSW - 3/8" NC x 2-1/4" gr 5

2шт.

11

S2400

MUFFLER

CPSW - 3/8" NC x 3/4" gr 5

2шт.

12

S33995

CABLE

brake

1шт.

13

S68977

CLAMP

SPACER

1шт.

14

S4610

SPLIT PIN

PIN, cotter - 3/32" x 1/2" long

1шт.

15

S10715

PIN

clevis - 1/4" x 1.851" grip length

1шт.
