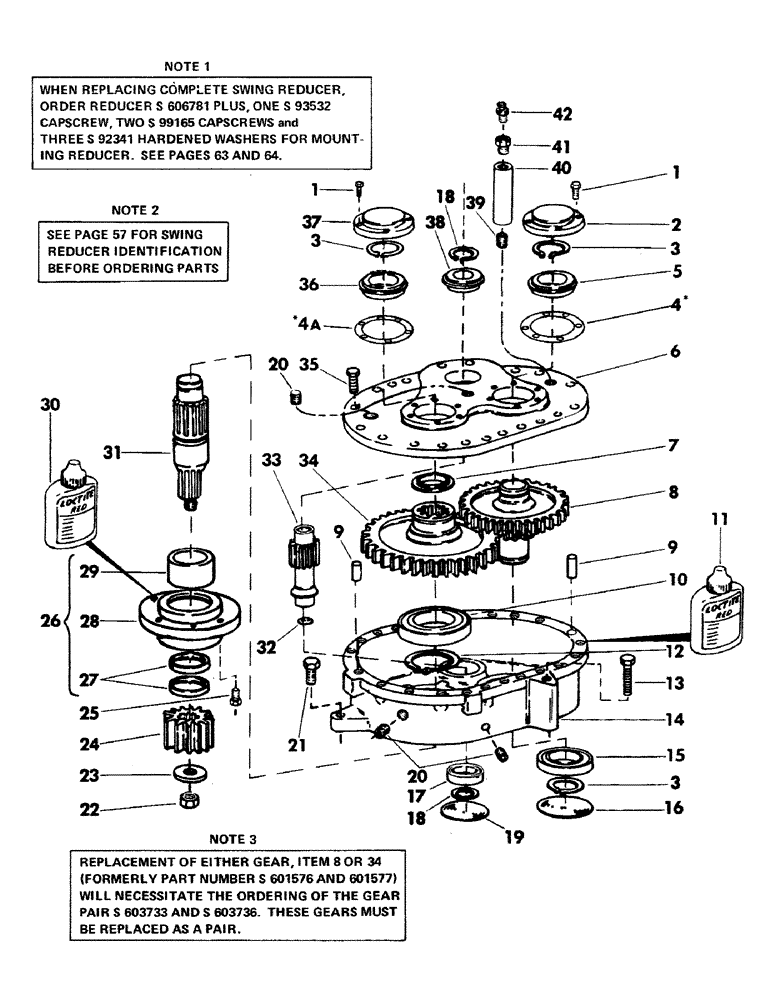

Запчасти Case 35YC (058) - SWING REDUCER, (USED AS ORIGINAL EQUIPMENT) (05) - UPPERSTRUCTURE CHASSIS

REDUCER, swing - complete (See notes 1 and 2)

1шт.

1

S16475

CAPSCREW

CPSW - 5/16" NC x 1" grade 8

12шт.

2

S402194M1

CAP

bearing

1шт.

3

S62721

RING, SNAP

RING, retaining

3шт.

4

S103261

GASKET

1шт.

Change in listing.

1шт.

4a

S85842

GASKET

1шт.

Added listing.

1шт.

5

S64314

BALL BEARING,40 mm ID x 80 mm OD x 18 mm

BEARING, ball

1шт.

6

S503551

COVER

gear case

1шт.

7

S214014

SPACER

, Serial Range: bearing-gear

1шт.

8

S603733

GEAR

cluster - (See note 3)

1шт.

9

S64319

CALIPER

DOWEL - 3/8" diameter

2шт.

10

S64321

BALL BEARING,70mm ID x 110mm OD x 20mm W

BEARING, ball

1шт.

11

S96077

SEAL

- 10 CC bottle - (Red) - (Substitutes must not be used) - (Replaces cover gasket)

1шт.

12

S15409

OIL SEAL

RING , retaining

1шт.

13

S2596

BOLT

CPSW - 7/8" NC x 5-1/2" grade 5 - (Reducer mounting)

2шт.

14

S55373M4

CASE, gear

1шт.

15

S64316

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

1шт.

16

S64317

PLUG

expansion

1шт.

17

S64313

BALL BEARING,35 mm ID x 72 mm OD x 17 mm

BEARING, ball

1шт.

18

S62725

RING

retaining

2шт.

19

S64328

PLUG

expansion

1шт.

20

S7873

PLUG

pipe - 3/8" NPT - (Socket head)

5шт.

21

S2582

CPSW - 7/8" NC x 2" grade 8 - (Reducer mounting)

1шт.

22

S64448

NUT

self locking

1шт.

23

S83676

SPACER

1шт.

24

S502648

PINION

output - 10 tooth

1шт.

25

S16906

BOLT

CPSW - 1/2" NC x 1-3/4" grade 8 - (Nylok) (Special DMC)

6шт.

26

S59406M1

HOUSING - (Includes Refs. 27 thru 29)

1шт.

27

S206136

OIL SEAL

oil

2шт.

28

NSS

NOT SOLD SEPARAT

SUPPORT, reducer

1шт.

29

S72921M1

BUSHING

1шт.

30

S96077

SEAL

- 10 CC bottle - (Red) - (Substitutes must not be used) - (Replaces reducer support gasket)

1шт.

31

SHAFT, output

1шт.

If replacement of shaft Ref. 31 (Formerly part number S504959) is required, you must order shaft part number S603734 as illustrated on figure 61 as item 20. In addition, you must order housing part number S603774 (Ref. 21) on figure 61 also.

1шт.

32

S81286

PLUG

expansion

1шт.

33

S37176

PINION

AND SHAFT, input

1шт.

34

S603736

GEAR

drive - (See note 3)

1шт.

35

S73499

BOLT

CPSW - 3/8" NC x 1-1/4" grade 8

23шт.

36

S98375

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING, ball - (Supersedes S85843)

1шт.

Change in listing.

1шт.

37

S214012M1

X

CAP, bearing

1шт.

38

S64312

BALL BEARING,35 mm ID x 62 mm OD x 14 mm

BEARING, ball

1шт.

39

S7840

NIPPLE - 3/8" NPT x 1" long

1шт.

40

S216625

TUBE,60" L

oil filler and breather

1шт.

41

S7780

BUSHING

REDUCER - 3/8" NPT male x 1/8" NPT female

1шт.

42

S17478

VENT

breather

1шт.
