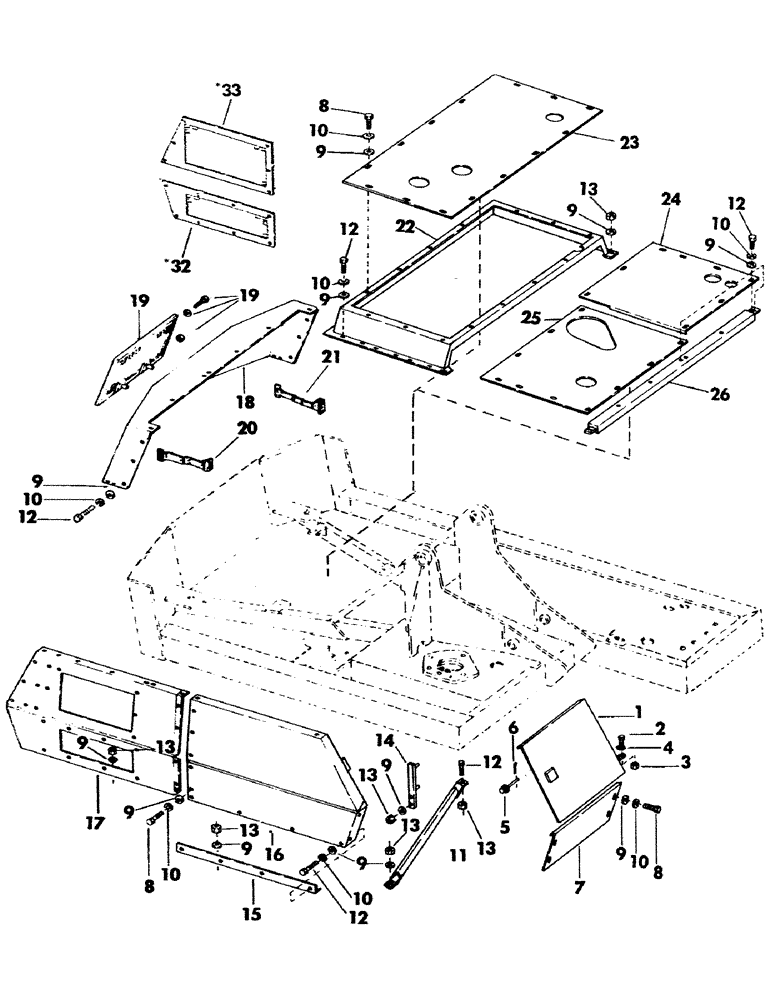

Запчасти Case 35YC (051) - TURNTABLE SHROUDING AND ATTACHING PARTS, (TOP, REAR AND RIGHT SIDE) (05) - UPPERSTRUCTURE CHASSIS

1

S505883

DOOR, front

1шт.

2

S2404

BOLT (MACHINE)

CPSW, 3/8" NC x 1-1/2" grade 5

2шт.

3

S4222

NUT

- 3/8" NC

2шт.

4

S7387

WASHER

flat - 3/8"

2шт.

5

S217887

PIN

2шт.

6

S81895

COTTER PIN

PIN, hair

2шт.

7

S219775

SHEET

front

1шт.

8

S2465

BOLT (MACHINE)

CPSW - 1/2" NC x 1" grade 5

1шт.

9

S86132

WASHER

flat - 1/2"

1шт.

10

S4399

WASHER

lock - 1/2"

1шт.

11

S219774

BRACE

2шт.

12

S2466

BOLT

CPSW - 1/2" NC x 1-1/4" grade 5

1шт.

13

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

1шт.

14

S220373

BRACKET

1шт.

15

S219895

ANGLE

1шт.

16

S602548

SHROUD, side panel - (Right front)

1шт.

17

S602550

SHROUD

side panel - (Right rear)

1шт.

18

S602552

SHROUD, rear panel

1шт.

19

S505863

DOOR, rear

1шт.

S2403

BOLT

CPSW - 3/8" NC x 1-1/2" grade 5

2шт.

S7385

INSTRUCTION

WASHER, flat - 3/8"

2шт.

87016560

JAM NUT,Jam, 3/8"-16, G5

- 3/8" NC

2шт.

20

S219460

BRACE

- (Right hand)

1шт.

21

S219473

BRACE

- (Left hand)

1шт.

S2350

MUFFLER

CPSW - 1/2" NC x 3/4" grade 5

6шт.

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

10шт.

S2351

BOLT

CPSW - 1/4" NC x 1" grade 5

4шт.

S7378

WASHER

flat - 1/4"

4шт.

S7380

WASHER

flat - 1/4"

2шт.

22

S7407

WASHER

flat - 13/16"

1шт.

23

S602568

SHROUD, engine - (Used with Case engine)

1шт.

24

S602570

COVER, engine - (Used with Case engine) - (Used on units with serial number 300 thru 707)

1шт.

S607038

COVER, engine - (Used with Case engine) - (Used on units with serial number 708 and after)

1шт.

25

S505890

COVER, engine - (Used with Detroit diesel engine) - (Used on units with serial number 300 thru 707)

1шт.

S508709

COVER, engine - (Used with Detroit diesel engine) - (Used on units with serial number 708 and after)

1шт.

26

S505889

COVER, engine - (Used on Detroit diesel engine)

1шт.

27

S505861

CHANNEL

1шт.

28

S2401

BOLT

CPSW - 3/8" NC x 1" grade 5

4шт.

S7385

INSTRUCTION

WASHER, flat - 3/8"

4шт.

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

4шт.

29

S219346

LATCH

ING, door

1шт.

30

S221453

BRACKET

hinge

1шт.

31

S221455

BRACKET

hinge

1шт.

32

S505834

GRILLE

1шт.

Added listing.

1шт.

33

505835

HOUSING

GRILLE

1шт.

Added listing.

1шт.
