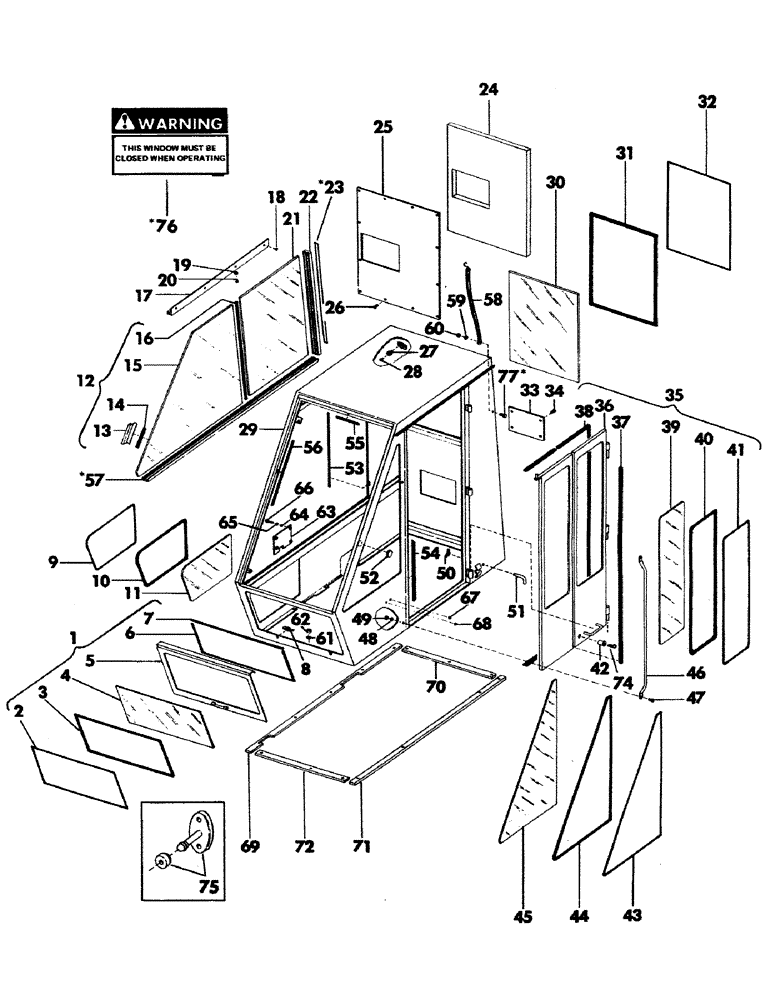

Запчасти Case 35YC (034) - STANDARD CAB AND ATTACHING PARTS (05) - UPPERSTRUCTURE CHASSIS

S952943M1

CAB ASSEMBLY - (Includes Refs. 1 thru 56 and figure 32)

1шт.

1

S221463

COVER

ASSEMBLY - (Includes Refs. 2 thru 8)

1шт.

Part of cab assembly P/N S952943M1

1шт.

2

S75830

SEAL

STRIP, filler - (Bulk) - 86.8" long

1шт.

Part of cab assembly P/N S952943M1

1шт.

Part of cover assembly P/N S75830

1шт.

3

S75829

SEAL

SETTING MATERIAL, glass - (Bulk) - 86.8" long

1шт.

Part of cab assembly P/N S952943M1

1шт.

Part of cover assembly P/N S75830

1шт.

4

S94320

GLASS - (Tempered)

1шт.

Part of cab assembly P/N S952943M1

1шт.

Part of cover assembly P/N S75830

1шт.

5

S94319

FRAME, cover

1шт.

Part of cab assembly P/N S952943M1

1шт.

Part of cover assembly P/N S75830

1шт.

6

S75852

SEAL - (Bulk) - 63.6" long

1шт.

Part of cab assembly P/N S952943M1

1шт.

Part of cover assembly P/N S75830

1шт.

7

S75851

SEAL - (Bulk) - 30.5" long

1шт.

Part of cab assembly P/N S952943M1

1шт.

Part of cover assembly P/N S75830

1шт.

8

S94321

NUT

wing - 5/16" NC

2шт.

Part of cab assembly P/N S952943M1

1шт.

Part of cover assembly P/N S75830

1шт.

9

S75830

SEAL

STRIP, filler - (Bulk) - 42" long

1шт.

Part of cab assembly P/N S952943M1

1шт.

10

S75829

SEAL

SETTING MATERIAL, glass - (Bulk) - 42" long

1шт.

Part of cab assembly P/N S952943M1

1шт.

11

S94303

GLASS - (Tempered)

1шт.

Part of cab assembly P/N S952943M1

1шт.

12

S218056

CAB GLASS ASSY

GLASS ASSEMBLY, sliding - (Includes Refs. 13 thru 16)

1шт.

Part of cab assembly P/N S952943M1

1шт.

13

S90089

HANDLE

1шт.

Part of cab assembly P/N S952943M1

1шт.

Part of sliding glass assembly P/N S90091

1шт.

14

S90091

SEAL

1шт.

Part of cab assembly P/N S952943M1

1шт.

Part of sliding glass assembly P/N S90091

1шт.

15

S89974

GLASS

- (Tempered)

1шт.

Part of cab assembly P/N S952943M1

1шт.

Part of sliding glass assembly P/N S90091

1шт.

16

S90092

SEAL

1шт.

Part of cab assembly P/N S952943M1

1шт.

Part of sliding glass assembly P/N S90091

1шт.

17

S218052

RETAINER

ASSEMBLY

1шт.

Part of cab assembly P/N S952943M1

1шт.

18

S90054

SCREW, Phillips pan head - 1/4" NC x 1/2"

4шт.

Part of sliding glass assembly P/N S90091

1шт.

19

S90062

SPACER

2шт.

Part of cab assembly P/N S952943M1

1шт.

20

S90063

SCREW

Phillips pan head - no. 10 x 3/4"

2шт.

Part of cab assembly P/N S952943M1

1шт.

21

S89968

GLASS - (Tempered)

1шт.

Part of cab assembly P/N S952943M1

1шт.

22

S79219

SEAL

CHANNEL, glass run - (Bulk) - 1 piece x 36" long

1шт.

Change in listing.

1шт.

Part of cab assembly P/N S952943M1

1шт.

23

S90055

STRIP, nylon - 3/8"

1шт.

Change in listing.

1шт.

Part of cab assembly P/N S952943M1

1шт.

24

S90050

FOAM INSULATION

INSULATION - (Back of cab inside)

1шт.

Part of cab assembly P/N S952943M1

1шт.

25

S90077

LINING

LINER - (Back if cab inside)

1шт.

Part of cab assembly P/N S952943M1

1шт.

26

S90051

SCREW, self tapping Phillips head - no. 10 x 1/2"

12шт.

Part of cab assembly P/N S952943M1

1шт.

27

S94282

BUMPER - (Inside back of cab)

2шт.

Part of cab assembly P/N S952943M1

1шт.

28

S14515

SCREW, Phillips head - no. 10 NF x 5/8"

2шт.

Part of cab assembly P/N S952943M1

1шт.

29

S94280

BODY, cab

1шт.

Part of cab assembly P/N S952943M1

1шт.

30

S89969

GLASS - (Tempered)

1шт.

Part of cab assembly P/N S952943M1

1шт.

31

S75829

SEAL

SETTING MATERIAL, glass - (Bulk) - 102" long

1шт.

Part of cab assembly P/N S952943M1

1шт.

32

S75830

SEAL

STRIP, filler - (Bulk) - 102" long

1шт.

Part of cab assembly P/N S952943M1

1шт.

33

S90094

COVER - (Not used with cab heater)

1шт.

Part of cab assembly P/N S952943M1

1шт.

34

S94308

SCREW

pan head - 3/8" NC x 5/8" - (Not used with cab heater)

4шт.

Part of cab assembly P/N S952943M1

1шт.

35

S221461

DOOR ASSY.

DOOR ASSEMBLY - (Includes Refs. 36 thru 42)

1шт.

Part of cab assembly P/N S952943M1

1шт.

36

NSS

NOT SOLD SEPARAT

FRAME, door

1шт.

Change in listing.

1шт.

Part of cab assembly P/N S952943M1

1шт.

Part of door assembly P/N S221461

1шт.

37

S90079

SEAL - (Bulk) - 54" long - (Between doors)

1шт.

Part of cab assembly P/N S952943M1

1шт.

Part of door assembly P/N S221461

1шт.

38

S75838

SEAL

- (Bulk) - 109" long

1шт.

Part of cab assembly P/N S952943M1

1шт.

Part of door assembly P/N S221461

1шт.

39

S89973

GLASS - (Tempered)

2шт.

Part of cab assembly P/N S952943M1

1шт.

Part of door assembly P/N S221461

1шт.

40

S75829

SEAL

SETTING MATERIAL - (Bulk) - 2 pieces - 94" long

1шт.

Part of cab assembly P/N S952943M1

1шт.

Part of door assembly P/N S221461

1шт.

41

S75830

SEAL

STRIP, filler - (Bulk) - 2 pieces - 94" long

1шт.

Part of cab assembly P/N S952943M1

1шт.

Part of door assembly P/N S221461

1шт.

42

S90080

LOCK

1шт.

Part of cab assembly P/N S952943M1

1шт.

Part of door assembly P/N S221461

1шт.

If replacement of cab lock keys is required, check lock prior to ordering. If lock is stamped as 915 order key No. S94605 or if stamped 1363 order key No. S104954.

1шт.

43

S75830

SEAL

STRIP, filler - (Bulk) - 106" long

1шт.

Part of cab assembly P/N S952943M1

1шт.

44

S75829

SEAL

SETTING MATERIAL, glass - (Bulk) - 106" long

1шт.

Part of cab assembly P/N S952943M1

1шт.

45

S89967

GLASS - (Tempered)

1шт.

Part of cab assembly P/N S952943M1

1шт.

46

S90093

HANDLE, grab

1шт.

Part of cab assembly P/N S952943M1

1шт.

47

S90048

SCREW, Phillips pan head - 5/16" NC x 3/4"

2шт.

Part of cab assembly P/N S952943M1

1шт.

48

S4396

WASHER, LOCK

- 5/16"

2шт.

Part of cab assembly P/N S952943M1

1шт.

49

9635082

NUT,5/16" - 18, Gr 5

- 5/16" NC

2шт.

Part of cab assembly P/N S952943M1

1шт.

50

S90040

NUT

wing - 1/2" NC

1шт.

Part of cab assembly P/N S952943M1

1шт.

51

S90058

HOOK

1шт.

Part of cab assembly P/N S952943M1

1шт.

52

S94281

PLUG, bottom

1шт.

Part of cab assembly P/N S952943M1

1шт.

53

S90053

WEATHERSTRIP - (Bulk) - 35.5" long

1шт.

Part of cab assembly P/N S952943M1

1шт.

54

S90049

SEAL - (Bulk) - 55" long

1шт.

Part of cab assembly P/N S952943M1

1шт.

55

F67064

SEAL

1шт.

Part of cab assembly P/N S952943M1

1шт.

56

F67064

SEAL

2шт.

Part of cab assembly P/N S952943M1

1шт.

57

S2352

BOLT

CPSW - 1/4" NC x 1-1/4" grade 5

1шт.

58

S92823

RETAINER, rubber - (Window storage)

1шт.

59

S7380

WASHER

flat - 9/32"

1шт.

60

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

61

S86132

WASHER

hard - 17/32" ID x 1-1/16" O.D.

15шт.

62

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

15шт.

63

S220310

COVER

1шт.

64

S7380

WASHER

flat - 9/32"

4шт.

65

S4395

WASHER, LOCK

- 1/4"

4шт.

66

S2350

MUFFLER

CPSW - 1/4" NC x 3/4" grade 5

4шт.

67

S93083

PLUG - (In cab horn mounting hole)

1шт.

68

S92987

PLUG - (In cab horn mounting hole)

1шт.

69

S87620

STRIP, rubber

1шт.

70

S87616

STRIP, rubber

1шт.

71

S218166

STRIP

rubber

1шт.

72

S87617

STRIP, rubber

1шт.

73

S200069

SEAL

CHANNEL, rubber (Bulk) - 4" long - (Use where required)

1шт.

74

KEY, door lock

1шт.

If replacement of cab lock keys is required, check lock prior to ordering. If lock is stamped as 915 order key No. S94605 or if stamped 1363 order key No. S104954.

1шт.

75

S97487

PLUNGER

SOCKET AND PLUNGER ASSEMBLY - (Holds doors together in open position)

1шт.
