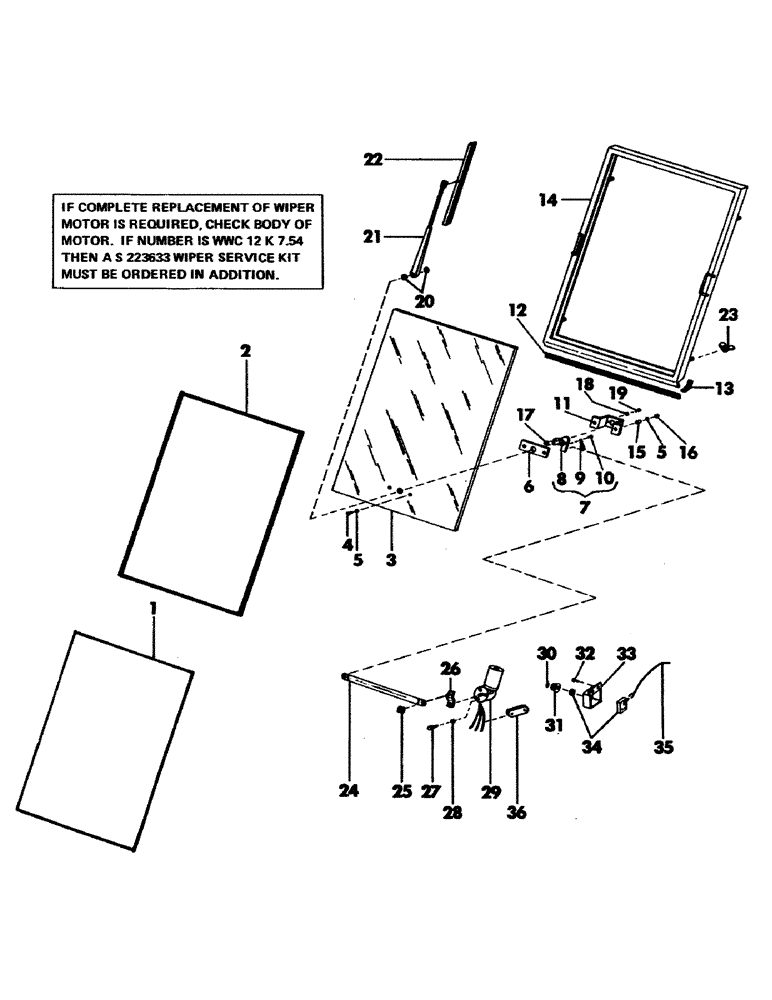

Запчасти Case 35YC (032) - STANDARD CAB UPPER FRONT WINDOW AND ATTACHING PARTS (05) - UPPERSTRUCTURE CHASSIS

S221460

WINDOW

ASSEMBLY, upper front - (Includes items 1 thru 9)

1шт.

1

S75830

SEAL

STRIP, filler - (Bulk) - 158" long

1шт.

2

S75829

SEAL

SETTING MATERIAL, glass - (Bulk) - 158" long

1шт.

3

S89971

SHIELD

GLASS - (Tempered)

1шт.

4

S90069

SCREW

pan head - no. 10 NC x 1"

2шт.

5

S90070

WASHER, flat - no. 10 NC

4шт.

6

S218046

GASKET

1шт.

7

S218045

ARM ASSY.

PIVOT ARM ASSEMBLY - (Includes items 8 thru 10)

1шт.

8

S90074

ARM ASSY.

ARM, pivot

1шт.

9

S90073

CHAIN

1шт.

10

S90075

SCREW

binding head - no. 8 x /16"

1шт.

11

S94305

BRACKET

pivot arm

1шт.

12

S75838

SEAL

weather - (Bulk) - 32.4" long

1шт.

13

F67064

SEAL

2шт.

14

S94304

FUNNEL

FRAME, window

1шт.

15

S90068

BUSHING

2шт.

16

S90072

NUT

lock - no. 10 NC

2шт.

17

S17262

NUT

- no. 8 NF

2шт.

18

S7339

WASHER, internal tooth lock - no. 8

2шт.

19

S90071

SCREW

pan head - no. 8 NF x 5/8"

2шт.

20

S90044

WASHER

flat

2шт.

21

S217996

ARM

wiper

1шт.

22

S90047

HALF BLADE

BLADE, wiper

1шт.

23

S90039

NUT

wing - 3/8" NC

4шт.

24

S90046

PITMAN

LINK, arm

1шт.

25

S90045

CLIP

- (Fits on drive arm)

1шт.

26

S89993

ARM

drive

1шт.

27

S7500

CPSW - 1/4" NC x 5/8" gr 5

3шт.

28

S4395

WASHER, LOCK

- 1/4"

3шт.

29

S90043

MOTOR

wiper

1шт.

30

S90057

DECAL

1шт.

31

A41647

KNOB

wiper switch

1шт.

32

S90056

SCREW

- 1/4" NC x 1/2"

2шт.

33

S90076

BRACKET

wiper switch - (Used with WWC 12 K 7.54 motor)

1шт.

S96777

BRACKET

wiper switch - (Used with WWC 12 L 7.54 motor, Drott no. S96755)

1шт.

34

S88046

SWITCH

wiper - (Includes nut) - (Used with WWC 12 K 7.54 motor)

1шт.

S96776

SWITCH

wiper - (Includes nut) -(Used with WWC 12 L 7.54 motor, Drott no. S96755)

1шт.

S96788

NUT, jam

1шт.

35

S90088

WIRE ASSEMBLY

1шт.

36

S90066

CLIP

wiper wires

2шт.

37

S223633

MOTOR

KIT, wiper service - (Consists of items 33 and 34)

1шт.
