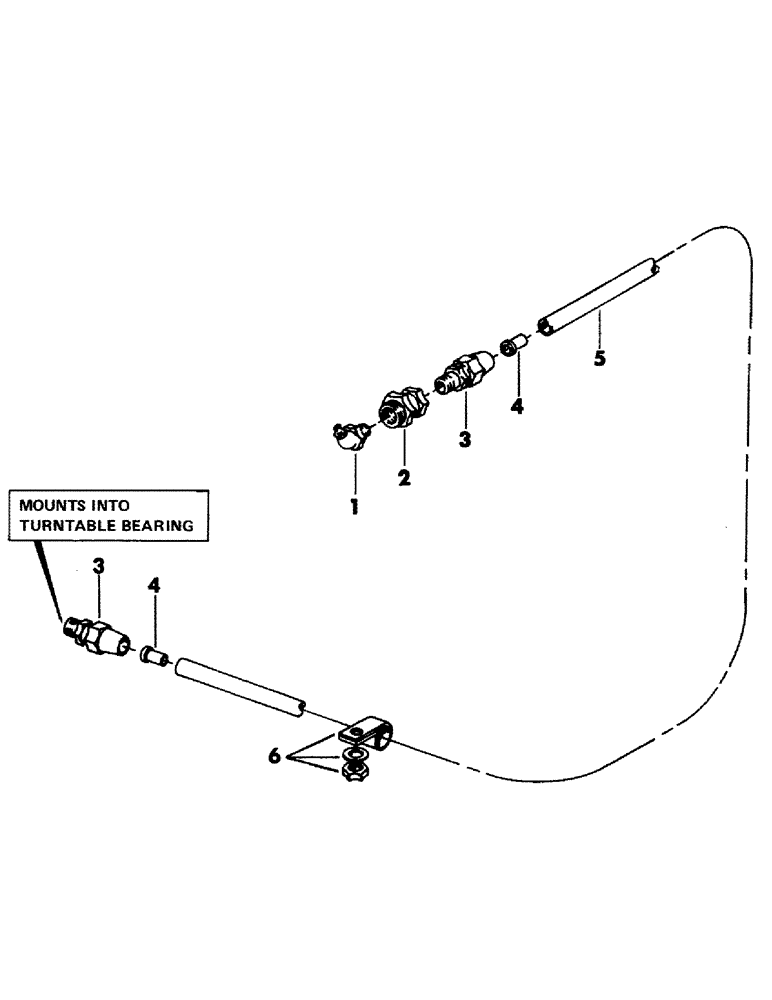

Запчасти Case 35YC (031) - TURNTABLE BEARING LUBRICATION LINE, (USED ON UNITS WITH SN. 653 AND AFTER) (05) - UPPERSTRUCTURE CHASSIS

1

S13732

FITTING

grease - 1/8" NPT x 45 degrees

1шт.

2

S93277

COUPLING

bulkhead - 1/8" NPT female x 1-1/2" long

1шт.

3

S90681

UNION

- 3/8" tube x 1/8" NPT male

2шт.

4

S85495

SLEEVE

- (For 3/8" OD nylon tube)

2шт.

5

S85503

TUBE,37.5" OD

nylon (Bulk) - 1 piece - 3/8" OD x 47" long

1шт.

6

S64985

CLAMP

1шт.

S7387

WASHER

flat - 3/8"

1шт.

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

1шт.
