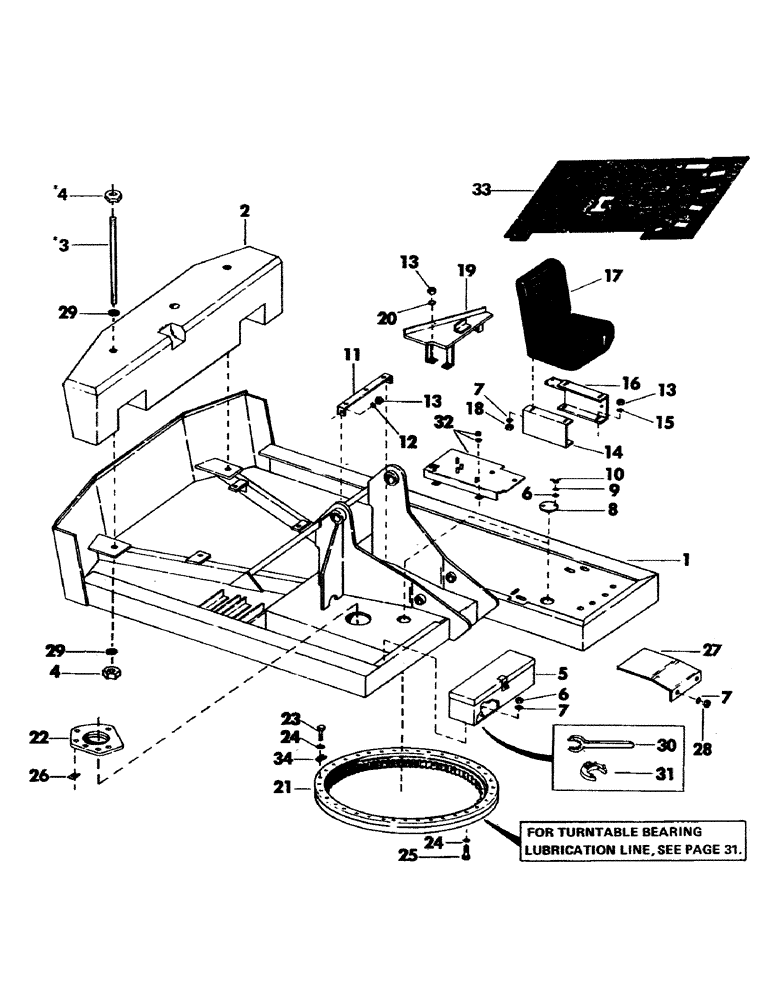

Запчасти Case 35YC (029) - TURNTABLE, COUNTERWEIGHT, BEARING AND ATTACHING PARTS (05) - UPPERSTRUCTURE CHASSIS

1

S604778

TURNTABLE, machined - (Supersedes S952908) - (Used on units with serial number 300 thru 707)

1шт.

1

S606625

TURNTABLE, machined and with sound reduction features - (Used on units with serial number 708 and after)

1шт.

2

S603034

COUNTERWEIGHT

1шт.

3

S228705

STUD

2шт.

#11 - A28183 was thinner than S6030

1шт.

4

S17093

LOCK NUT

NUT - 1-1/4" NC

4шт.

#11 - A28183 was thinner than S6030

1шт.

5

S219842

BOX, TOOL

TOOL BOX - (Optional)

1шт.

6

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

4шт.

7

S7385

INSTRUCTION

WASHER, flat - 3/8"

14шт.

8

S76664

COVER

- (Bearing access and cleaning hole)

2шт.

9

S4397

WASHER

lock - 3/8"

4шт.

10

S77941

NUT, wing - 3/8" NC

4шт.

11

S68667

BRACKET, hydraulic clamp mounting

1шт.

12

S86132

WASHER

flat - 1/2"

2шт.

13

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

9шт.

14

S219432

CHANNEL, seat mounting - (Right hand)

1шт.

15

S7397

WASHER

flat - 1/2"

1шт.

16

S506117

CHANNEL, seat mounting - (Left hand)

1шт.

17

S220432

NO LONGER SERVICED

SEAT, operators

1шт.

18

S9088

NUT

self locking - 5/16" NC

4шт.

19

S506187

GUIDE, window storage

1шт.

20

S7395

WASHER

flat - 1/2"

3шт.

21

S508668

SLEWING RING

BEARING, turntable

1шт.

22

S506965M1

X

PLATE, swing reducer mounting

1шт.

23

S86503

BOLT

CPSW - 5/8" NC x 2-1/4" - (Special D.M.C. CPSW - use item 24 also

36шт.

#11 - A28183 was thinner than S6030

1шт.

24

S92353

WASHER

hardened - 5/8"

72шт.

#11 - A28183 was thinner than S6030

1шт.

25

S84906

BOLT

CPSW - 5/8" NC x 2" - (Special D.M.C. CPSW - use item 24 also)

36шт.

26

S77916

SHIM,.005" Thk

Reducer plate to turntable .005" Thk

1шт.

26

S77917

SHIM,.010" Thk

Reducer plate to turntable .010" Thk

1шт.

26

S77918

SHIM,.015" Thk

Reducer plate to turntable .015" Thk

1шт.

26

S77919

SHIM,.030" Thk

Reducer plate to turntable .030" Thk

1шт.

26

S77920

SHIM,.060" Thk

Reducer plate to turntable .060" Thk

1шт.

26

S84889

SHIM,.003" Thk

Reducer plate to turntable .003" Thk

1шт.

26

S84890

SHIM,.007" Thk

Reducer plate to turntable .007" Thk

1шт.

27

S210964

COVER

turntable bearing bolts

1шт.

28

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

2шт.

29

S94627

WASHER, flat - 1-3/8"

4шт.

30

S206800

OPEN END WRENCH

WRENCH, tube - 1-1/2"

1шт.

31

S33236

WRENCH, spanner

1шт.

32

S505720

PLATE

1шт.

S7397

WASHER

flat - 1/2"

2шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

2шт.

33

S603731

MAT, floor

1шт.

34

S77916

SHIM,.005" Thk

Bearing to turntable .005" Thk

1шт.

S77917

SHIM,.010" Thk

Bearing to turntable .010" Thk

1шт.

S77918

SHIM,.015" Thk

Bearing to turntable .015" Thk

1шт.

S77919

SHIM,.030" Thk

Bearing to turntable .030" Thk

1шт.

S77920

SHIM,.060" Thk

Bearing to turntable .060" Thk

1шт.

S84889

SHIM,.003" Thk

Bearing to turntable .003" Thk

1шт.

S84890

SHIM,.007" Thk

Bearing to turntable .007" Thk

1шт.
