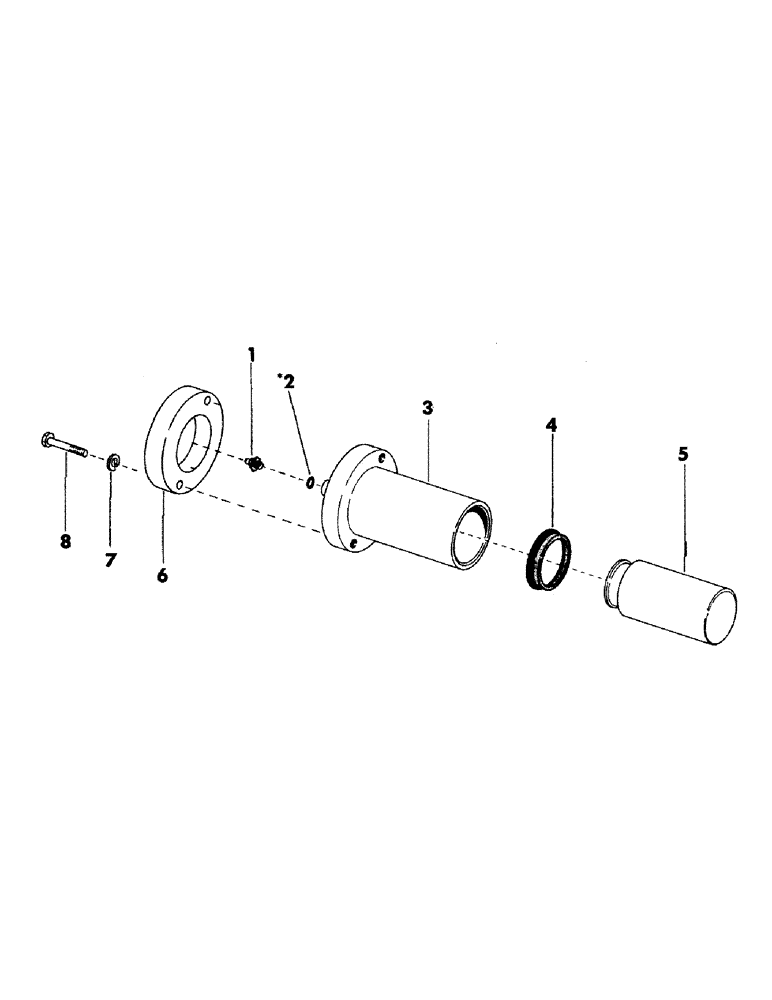

Запчасти Case 35YC (016) - TRACK ADJUSTMENT CYLINDER (04) - UNDERCARRIAGE

S56864

CYLINDER

track adjustment - complete (Consists of Refs. 1 thru 5)

2шт.

1

S233299

FITTING

ASSEMBLY - (Special) - (Replaces S86260 and S79901)

1шт.

Change in listing.

1шт.

Part of track adjustment cylinder P/N S56864

1шт.

2

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - .406" ID x .547" O.D.

1шт.

Part of track adjustment cylinder P/N S56864

1шт.

3

S39298

TUBE,7.5" L

cylinder

1шт.

Part of track adjustment cylinder P/N S56864

1шт.

4

S78837

SEAL

1шт.

Part of track adjustment cylinder P/N S56864

1шт.

5

S209107

PISTON

1шт.

Part of track adjustment cylinder P/N S56864

1шт.

6

S79135

SPACER

cylinder mounting

1шт.

7

S4399

WASHER

lock - 1/2"

2шт.

8

S2469

BOLT

CPSW - 1/2" NC x 2" grade 5 - (Mounts cylinder to track frame)

2шт.
