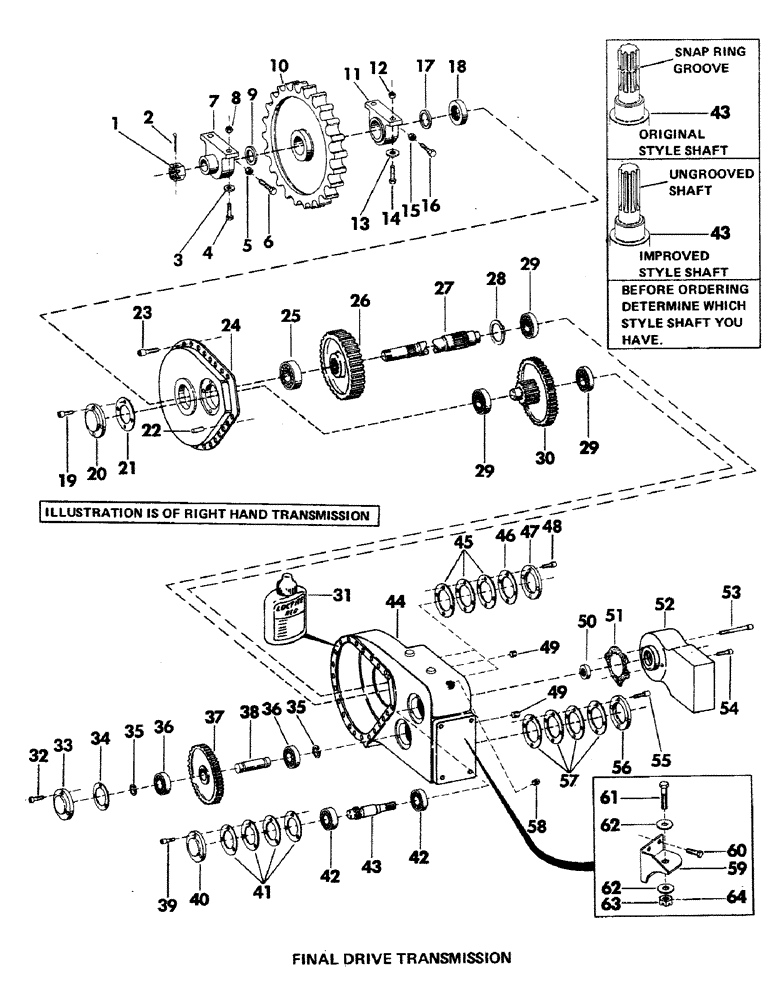

Запчасти Case 35YC (013) - FINAL DRIVE TRANSMISSION (04) - UNDERCARRIAGE

S604785

TRANSMISSION, final drive - complete (Consists of Refs. 1, 2, and 18 thru 58) - (Right hand)

1шт.

S604786

TRANSMISSION, final drive - complete (Consists of Refs. 1, 2, and 18 thru 58) - (Left hand)

1шт.

1

S9311

NUT

- 2" NF

1шт.

Part of final drive transmission P/N S604785

1шт.

2

S5462

PIN

roll - 5/16" x 2-3/4" long

1шт.

Part of final drive transmission P/N S604785

1шт.

3

S84753

WASHER

flat - 5/8" - (Hardened)

2шт.

4

S75591

BOLT

CPSW - 5/8" NC x 3-1/2" grade 8 - (Mounts pillow, Serial Range: block-frame)

2шт.

5

86632557

JAM NUT,Jam, 3/4"-10, G5

NUT, jam - 3/4" NC

1шт.

6

S12261

CAPSCREW

CPSW - 3/4" NC x 3" - (Pillow block adjustment)

1шт.

7

S209722

BLOCK

pillow - (Outer)

1шт.

8

S17088

NUT

self locking - 5/8" NC

2шт.

9

S83872M1

X

SPACER, outer

1шт.

10

S951464

SPROCKET ASSY.

SPROCKET, drive

1шт.

Change in listing.

1шт.

11

S212544

BEARING CARRIER

BLOCK, pillow - (Inner)

1шт.

12

S17089

NUT

self locking - 3/4" NC

2шт.

13

S84752

WASHER

flat - 3/4" - (Hardened)

2шт.

14

S84785

BOLT

CPSW - 3/4" NC x 4-1/2" - (Special) - (Mounts pillow, Serial Range: block-frame)

2шт.

15

86632557

JAM NUT,Jam, 3/4"-10, G5

NUT, jam - 3/4" NC

1шт.

16

S12261

CAPSCREW

CPSW - 3/4" NC x 3" - (Pillow block adjustment)

1шт.

17

S83873

SPACER

inner

1шт.

18

S83874

OIL SEAL

SEAL, oil

1шт.

Part of final drive transmission P/N S604785

1шт.

19

S91176

CAPSCREW

CPSW - 3/8" NC x 7/8" - (Socket head nylok)

4шт.

Part of final drive transmission P/N S604785

1шт.

20

S217974M1

COVER

bearing

1шт.

Part of final drive transmission P/N S604785

1шт.

21

S204088

SHIM,.010" Thk

Gasket .010" Thk

1шт.

Part of final drive transmission P/N S604785

1шт.

22

S65037

DOWEL

- 5/8" x 1-1/4" long

2шт.

Part of final drive transmission P/N S604785

1шт.

23

S4113

CAPSCREW

CPSW - 1/2" NC x 1-1/8" - (Socket head nylok)

21шт.

Part of final drive transmission P/N S604785

1шт.

24

S952720M1

X

COVER, transmission

1шт.

Part of final drive transmission P/N S604785

1шт.

25

S83875

ROLLER BEARING

BEARING, roller

1шт.

Part of final drive transmission P/N S604785

1шт.

26

S603741

GEAR

output

1шт.

Replacment of either gear Ref. 26 or 30 (Formerly S600865M2 and S601244) will necessitate the ordering of the gear part S603741 and S603740. These gears must be replaced as a pair. See Service Bulletin no. 81 dated September 1, 1972.

1шт.

Part of final drive transmission P/N S604785

1шт.

27

S59165M2

X

SHAFT, output

1шт.

Part of final drive transmission P/N S604785

1шт.

28

S76259

RING, SNAP

RING, retaining

1шт.

Part of final drive transmission P/N S604785

1шт.

29

S65025

BEARING ASSY

BEARING, roller

3шт.

Part of final drive transmission P/N S604785

1шт.

30

S603740

GEAR

CLUSTER AND SHAFT

1шт.

Replacment of either gear Ref. 26 or 30 (Formerly S600865M2 and S601244) will necessitate the ordering of the gear part S603741 and S603740. These gears must be replaced as a pair. See Service Bulletin no. 81 dated September 1, 1972.

1шт.

Part of final drive transmission P/N S604785

1шт.

31

S96077

SEAL

- 10CC bottle - (Red) - (Replaces transmission cover gasket - substitutes must not be used)

1шт.

Part of final drive transmission P/N S604785

1шт.

32

S3896

CAPSCREW

CPSW - 3/8" NC x 3/4" - (Socket head nylok)

3шт.

Part of final drive transmission P/N S604785

1шт.

33

S210368

COVER

bearing

1шт.

Part of final drive transmission P/N S604785

1шт.

34

S204092

SHIM,.010" Thk

Gasket .010" Thk

1шт.

Part of final drive transmission P/N S604785

1шт.

35

S62725

RING

retaining

2шт.

Part of final drive transmission P/N S604785

1шт.

36

S65035

ROLLER BEARING

BEARING, roller

2шт.

Part of final drive transmission P/N S604785

1шт.

37

S53338

GEAR

CLUSTER, intermediate

1шт.

Part of final drive transmission P/N S604785

1шт.

38

S210366

SHAFT

intermediate

1шт.

Part of final drive transmission P/N S604785

1шт.

39

S3896

CAPSCREW

CPSW - 3/8" NC x 3/4" - (Socket head nylok)

3шт.

Part of final drive transmission P/N S604785

1шт.

40

S20341

COVER, bearing

1шт.

Part of final drive transmission P/N S604785

1шт.

41

S204093

SHIM,.003" Thk

Gasket .003" Thk

1шт.

Part of final drive transmission P/N S604785

1шт.

S204094

SHIM

GASKET, shim - .005"

1шт.

S204095

SHIM

GASKET, shim - .007"

1шт.

S204096

SHIM,.010" Thk

Gasket .010" Thk

1шт.

42

S65036

BEARING ASSY

BEARING

2шт.

Part of final drive transmission P/N S604785

1шт.

43

S508255

SHAFT

improved style - (Without snap ring groove)

1шт.

Part of final drive transmission P/N S604785

1шт.

S34044

SHAFT

original style - (With snap ring groove) - (Replaced by kit, Ref. 65) - (See note)

1шт.

44

S952724M1

X

HOUSING, transmission - (Right hand)

1шт.

Part of final drive transmission P/N S604785

1шт.

S952725M1

HOUSING

transmission - (Left hand)

1шт.

45

S204085

GASKET

shim - .003"

1шт.

Part of final drive transmission P/N S604785

1шт.

S204086

SHIM,.005" Thk

Gasket .005" Thk

1шт.

S204087

SHIM,.007" Thk

Gasket .007" Thk

1шт.

S204088

SHIM,.010" Thk

Gasket .010" Thk

1шт.

46

S204097

SHIM,.030" Thk

Gasket .030" Thk

1шт.

Part of final drive transmission P/N S604785

1шт.

47

S217974M1

COVER

bearing

2шт.

Part of final drive transmission P/N S604785

1шт.

48

S91176

CAPSCREW

CPSW - 3/8" NC x 7/8" - (Socket head nylok)

8шт.

Part of final drive transmission P/N S604785

1шт.

49

S7880

PLUG

pipe - 3/4" NPT - (Socket head)

2шт.

Part of final drive transmission P/N S604785

1шт.

50

S65001

OIL SEAL

oil - (Brake housing)

1шт.

Part of final drive transmission P/N S604785

1шт.

51

S80305

GASKET

brake, Serial Range: housing-transmission

1шт.

Part of final drive transmission P/N S604785

1шт.

52

S57642

HOUSING

track brake - (Right hand and left hand)

1шт.

Part of final drive transmission P/N S604785

1шт.

53

S12276

CAPSCREW

CPSW - 1/2" NC x 3" - (Brake housing to transmission) - (Socket head nylok)

1шт.

Part of final drive transmission P/N S604785

1шт.

54

S4113

CAPSCREW

CPSW - 1/2" NC x 1-1/8" (Brake housing to transmission) - (Socket head nylok)

1шт.

Part of final drive transmission P/N S604785

1шт.

55

S3896

CAPSCREW

CPSW - 3/8" NC x 3/4" - (Socket head nylok)

3шт.

Part of final drive transmission P/N S604785

1шт.

56

S210368

COVER

bearing

1шт.

Part of final drive transmission P/N S604785

1шт.

57

S204089

SHIM,.003" Thk

Gasket .003" Thk

1шт.

Part of final drive transmission P/N S604785

1шт.

S204090

SHIM,.005" Thk

Gasket .005" Thk

1шт.

S204091

SHIM,.007" Thk

Gasket .007" Thk

1шт.

S204092

SHIM,.010" Thk

Gasket .010" Thk

1шт.

58

S15165

PLUG, pipe - 3/4" NPT - (Hexagon head) - (Breather hole)

1шт.

Part of final drive transmission P/N S604785

1шт.

59

S218815

BRACKET, transmission mounting - (Right hand) - (Illustrated)

1шт.

S218816

BRACKET, transmission mounting - (Left hand) - (Not illustrated)

1шт.

60

S2542

BOLT

CPSW - 3/4" NC x 1-1/2" grade 5 -, Serial Range: (Bracket-transmission)

4шт.

61

S91149

BOLT

CPSW - 1" NC x 2-3/4" grade 8 -, Serial Range: (Bracket-frame)

1шт.

62

S89556

WASHER

flat - 1" - (Special)

2шт.

63

S89793

NUT

castle - 1" NC

1шт.

64

S4674

SPLIT PIN

PIN, cotter - 1/4" x 2" long

1шт.

65

S607927

SHAFT

KIT, shaft - (Includes shaft S508255, splined coupling S224667, and snap ring S74048) - (See page 85) - (Supersedes S34044)

1шт.
