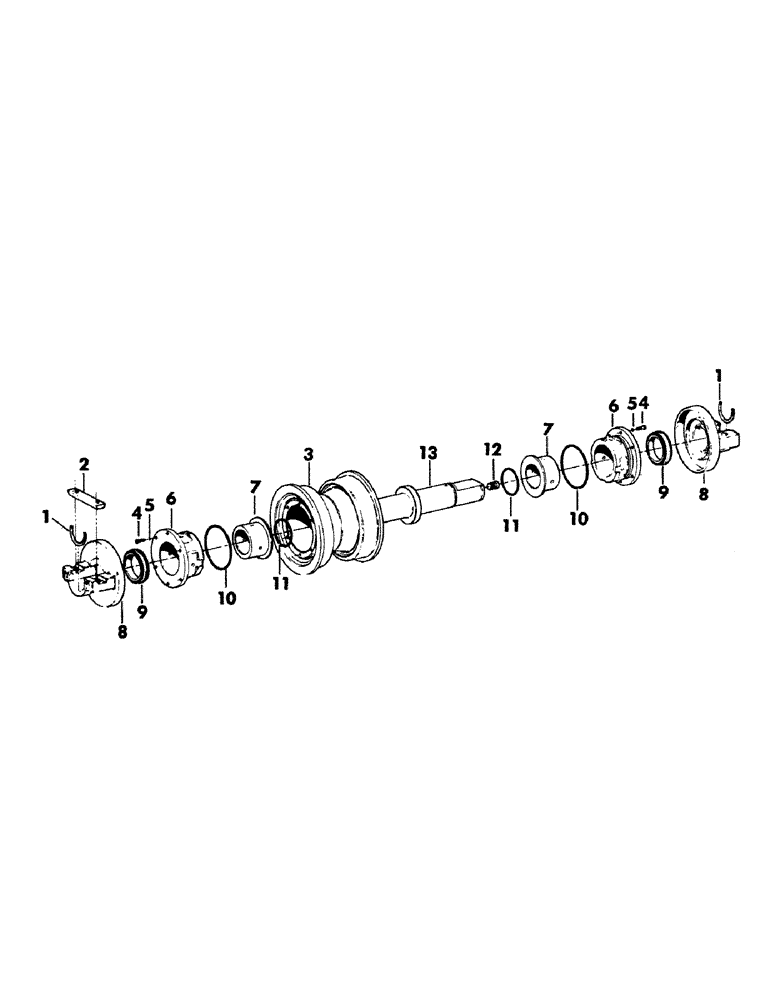

Запчасти Case 35YC (011) - TRACK ROLLER, * (USED ON UNITS WITH SERIAL NUMBER 300 THRU 6266040) (04) - UNDERCARRIAGE

S214642

ROLLER, single flange - complete (Consists of items 1 thru 13) - (Supersedes S214726)

20шт.

1

S87417

RING, snap

2шт.

2

S87426

LOCK

1шт.

3

S87459

RIM

1шт.

4

S87457

CAPSCREW

CPSW - 3/8" NC x 1-1/8" gr 5

12шт.

5

S87458

LOCK

12шт.

6

S87461

BUSHING ASSEMBLY - (Includes item 7) - (Each bushing consists of 2 pieces as a match set)

2шт.

7

NSS

NOT SOLD SEPARAT

BUSHING

2шт.

8

S87425

COLLAR

2шт.

9

S95098

SEAL

GROUP

2шт.

10

S6318

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

"O" RING - 2.234" ID x 2.500" OD

2шт.

11

S6315

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

"O" RING - 1.859" ID x 2.125" OD

2шт.

12

S87854

PLUG

oil filler

1шт.

13

S87460

SHAFT

1шт.
