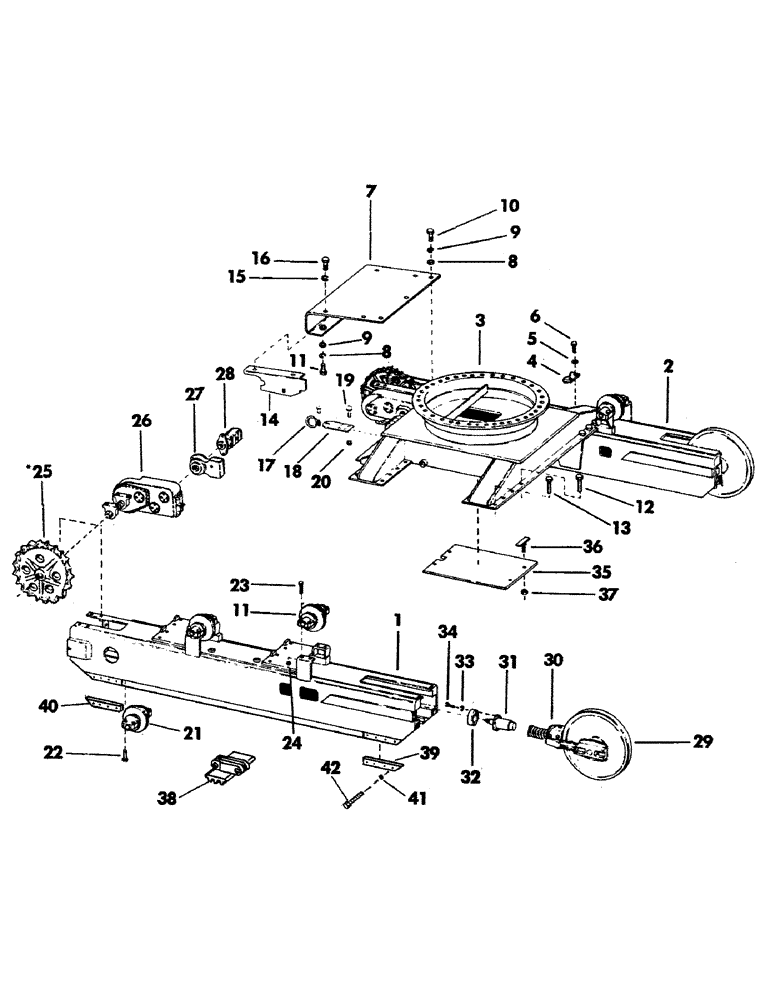

Запчасти Case 35YC (007) - CRAWLER UNDERCARRIAGE AND ATTACHING PARTS (04) - UNDERCARRIAGE

1

S953039

FRAME, track - (Right hand)

1шт.

2

S953040

FRAME, track - (Left hand)

1шт.

3

S953036

CARBODY

1шт.

4

S209072

STOP, track adjusting

4шт.

5

S4399

WASHER

lock - 1/2"

8шт.

6

S2466

BOLT

CPSW - 1/2" NC x 1-1/4" gr 5

8шт.

7

S57024

GUARD, motor

1шт.

8

S7393

WASHER

flat - 1/2"

5шт.

9

S4399

WASHER

lock - 1/2"

5шт.

10

S2466

BOLT

CPSW - 1/2" NC x 1-1/4" gr 5

3шт.

11

S2468

BOLT

CPSW - 1/2" NC x 1-3/4" gr 5

2шт.

12

S93531

BOLT

CPSW - 7/8 NC x 3" gr 8

16шт.

13

S93532

BOLT

CPSW - 7/8" NC x 2" gr 8

16шт.

14

S501901M2

SHIELD - (Right hand) - (Illustrated)

1шт.

S501900M2

SHIELD - (Left hand) - (Not illustrated)

1шт.

15

S4399

WASHER

lock - 1/2"

8шт.

16

S2467

BOLT

CPSW - 1/2" NC x 1-1/2" gr 5

8шт.

17

S100742

SHACKLE

round pin - (Optional)

1шт.

18

S209710

PLATE

draw bar - (Optional)

1шт.

19

S2548

BOLT (MACHINE)

CPSW - 3/4" NC x 2-3/4" gr 5

4шт.

20

S4227

NUT

- 3/4" NC

4шт.

21

ROLLER, track - (For breakdown, see figure 11)

20шт.

22

CPSW - 5/8" NC x 2" gr 8 - (Furnished with track roller)

64шт.

23

S2506

BOLT (MACHINE)

CPSW - 5/8" NC x 2" gr 5

16шт.

24

280374

NUT,Hex, 5/8" - 11, Gr 5

16шт.

25

S951464

SPROCKET ASSY.

WHEEL, sprocket drive

2шт.

26

TRANSMISSION, final drive - (Left hand) - (For breakdown, see figure 13)

1шт.

TRANSMISSION, final drive - (Right hand) - (For breakdown, see figure13)

1шт.

27

BRAKE, track drive - (For breakdown, see figure 79)

2шт.

28

MOTOR, track drive - (For breakdown, see figure 131)

2шт.

29

WHEEL, front idler - (For breakdown, see figure 9)

2шт.

30

TRACK ADJUSTER GROUP - (For breakdown, see figure 9)

2шт.

31

CYLINDER, track adjustment - (For breakdown, see figure 16)

2шт.

32

S79135

SPACER

2шт.

33

S4399

WASHER

lock - 1/2"

4шт.

34

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

4шт.

35

S210279

PLATE, swivel guard

1шт.

36

S210280

CLAMP

4шт.

37

S9093

NUT, self locking - 5/8" NC

4шт.

38

TRACK ASSEMBLY - (For breakdown, see page 12)

2шт.

39

S215812

BAR

wear - (Right hand)

4шт.

40

S215813

BAR

wear - (Left hand)

4шт.

41

S4399

WASHER

lock - 1/2"

32шт.

42

S76337

BOLT

CPSW - 1/2" NC x 2" gr 8

32шт.
