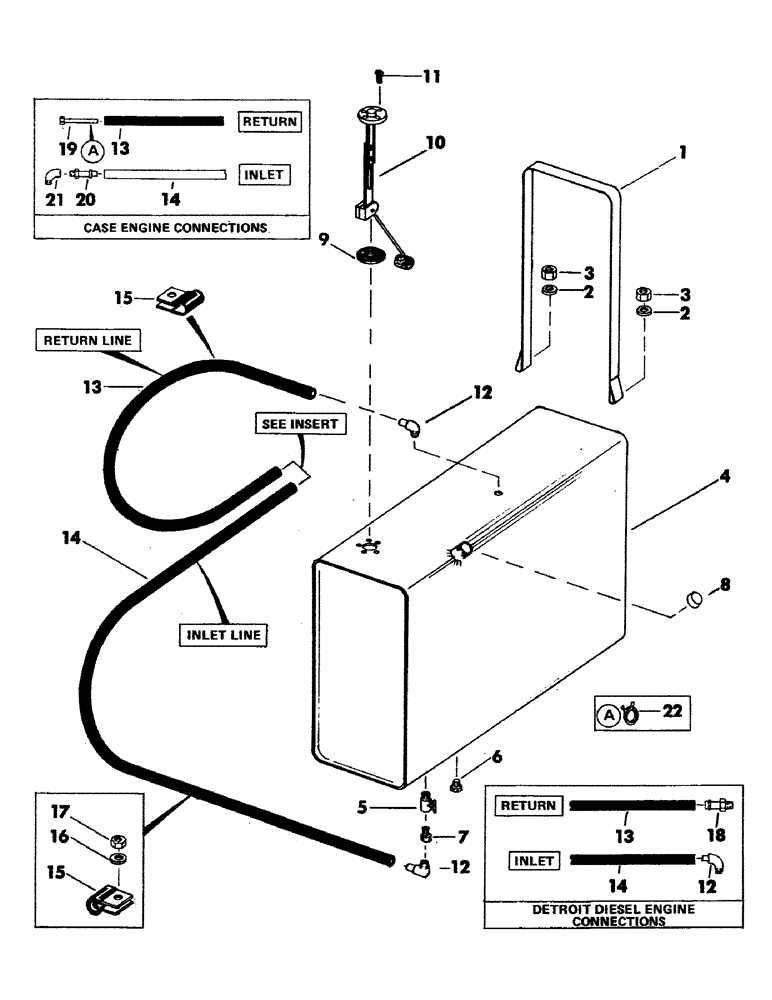

Запчасти Case 35YC (025) - FUEL TANK AND LINES (02) - FUEL SYSTEM

1

S81133

STRAP, fuel tank mounting

2шт.

2

S7385

INSTRUCTION

WASHER, flat - 3/8"

4шт.

3

S17167

INSTRUCTION

NUT, self locking - 3/8"

4шт.

4

S502212M2

TANK, fuel

1шт.

5

S218848

VALVE

shut off

1шт.

6

S15162

PLUG

fuel tank drain

1шт.

7

S17551

BUSHING

reducing - 3/8" NPT male x 1/4" NPT female

1шт.

8

S64019

FILLER CAP

CAP, fuel tank

1шт.

9

S49745

GASKET

GASKET, fuel gauge sending unit

1шт.

10

S502600

SENDER UNIT

SENDING UNIT, fuel gauge

1шт.

11

S14530

SCREW, machine - no. 10 NF x 3/4"

5шт.

12

S92668

ELBOW

2шт.

13

S63654

HOSE

fuel line - 3/8" ID x 125" long - (Used on Detroit Diesel engine)

1шт.

S63654

HOSE

fuel line - 3/8" ID x 106" long - (Used on Case engine)

1шт.

14

S63654

HOSE

fuel line - 3/8" ID x 111" long

1шт.

Change in listing.

1шт.

15

S76696

CLAMP

- (Used on Detroit Diesel engine)

5шт.

S76696

CLAMP

- (Used on Case engine)

4шт.

16

S7387

WASHER

flat - 3/8"

2шт.

17

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

2шт.

18

S67644

HOSE END - (Detroit Diesel engine ) - (Return)

1шт.

19

S209418

LINE, fuel - (Case engine) - (Return)

1шт.

20

S63652

END ASSY.

HOSE END - (Case engine) - (Inlet)

1шт.

21

S63648

ELBOW

- (Case engine ) - (Inlet)

1шт.

22

S16604

CLAMP, tube

1шт.
