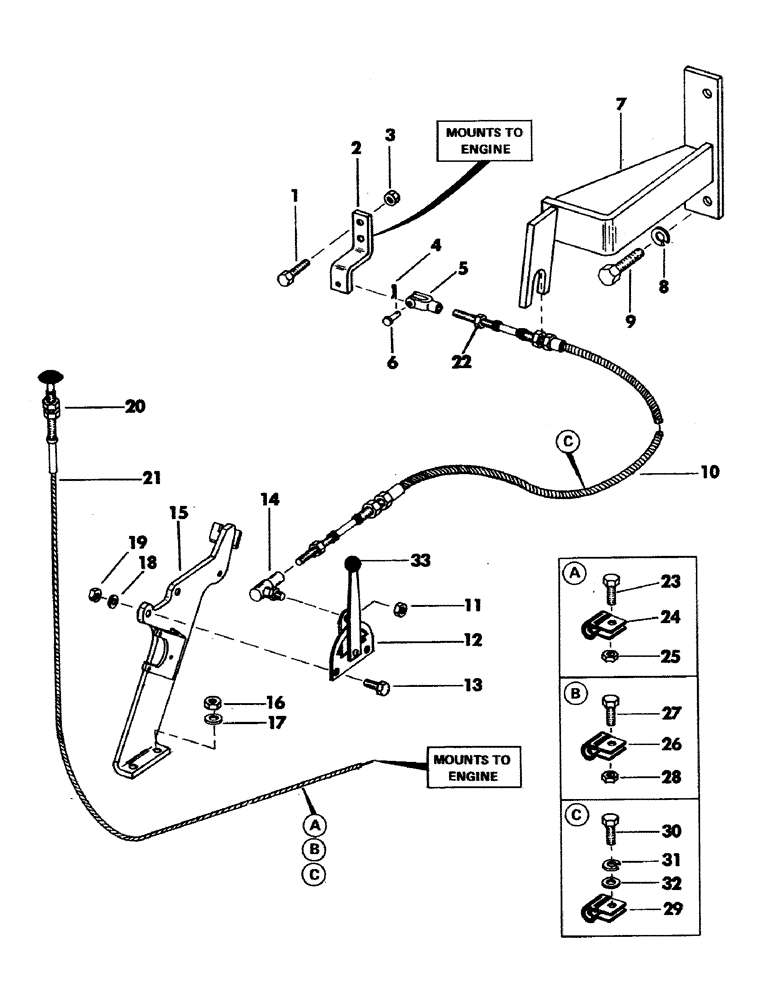

Запчасти Case 35YC (027) - THROTTLE AND SHUT-OFF CONTROL CABLES (01) - ENGINE

1

S2360

SCREW

CPSW - 1/4" NC x 7/8" gr 5 - (Used on Case engine)

2шт.

S2021

BOLT

CPSW - 5/16" NF x 1" gr 5 - (Used on Detroit Diesel engine)

2шт.

2

S92631

LEVER

throttle control - (Used on Case engine)

1шт.

S219755

LEVER, throttle control - (Used on Detroit Diesel engine)

1шт.

3

231-1444

NUT,1/4"-20, GB

NUT, LOCK, (Used on Case Engine) 1/4"-20, GB

2шт.

231-2445

LOCK NUT,5/16"-24, GB

NUT, self locking - 5/16" NF - (used on Detroit Diesel engine)

2шт.

4

S4610

SPLIT PIN

PIN, cotter - 3/32" x 1/2" long

1шт.

5

S12568

YOKE

1шт.

6

S10714

CLEVIS PIN

PIN, clevis - 1/4" x .648" grip length

1шт.

7

S602574

BRACKET, throttle control - (Used on Case engine)

1шт.

S219754

BRACKET, throttle control - (Used on Detroit Diesel engine)

1шт.

8

S4397

WASHER

lock - 3/8" - (Used on Case engine)

2шт.

9

S2400

MUFFLER

CPSW - 3/8" NC x 3/4" gr 5 - (Used on Case engine - Detroit Diesel engine uses existing hardware)

2шт.

10

S219334

CABLE

throttle control

1шт.

11

S17151

NUT

self locking

1шт.

12

S91894

CONTROL LEVER

LEVER, throttle

1шт.

13

S2351

BOLT

CPSW - 1/4" NC x 1" gr 5

2шт.

14

S76046

GASKET

JOINT, ball

1шт.

15

S506156

BRACKET, throttle lever mounting - (Supersedes S505702)

1шт.

16

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

1шт.

17

S7387

WASHER

flat - 3/8"

1шт.

18

S7380

WASHER

flat - 1/4"

2шт.

19

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

20

S7381

WASHER

flat - 5/16" (Quantity of 1 used with Case engine and quantity of 2 used with Detroit Diesel engine)

1шт.

21

S201620M1

CABLE, control - (Quantity of 1 cable used on Case engine for shut-off control and quantity of 2 cables used on Detroit Diesel engine for shut-off and emergency control)

1шт.

22

425-154

JAM NUT,Jam, 1/4"-28, G5

jam - 1/4" NF

1шт.

23

S2349

BOLT

CPSW - 1/4" NC x 1/2" gr 5 - (Used with Case engine)

1шт.

24

S93104

CLAMP

- (Used with Case engine)

1шт.

25

231-1444

NUT,1/4"-20, GB

NUT, LOCK, (Used with Case Engine) 1/4"-20, GB

1шт.

26

S84479

CLAMP

- (Used with Detroit Diesel engine)

1шт.

27

S17169

INSTRUCTION

NUT, self locking - 1/2" NC - (Used with Detroit Diesel engine)

1шт.

28

S7393

WASHER

flat - 1/2" - (Used with Detroit Diesel engine)

1шт.

29

S76696

CLAMP

- (Used with Case engine)

1шт.

30

S2399

BOLT

CPSW - 3/8" NC x 1/2" gr 5 - (Used with Case engine)

1шт.

31

S4397

WASHER

lock - 1/2" - (Used with Case engine)

1шт.

32

S7387

WASHER

flat - 1/2" - (Used with Case engine)

1шт.

33

S94426

KNOB

BALL, throttle lever

1шт.
