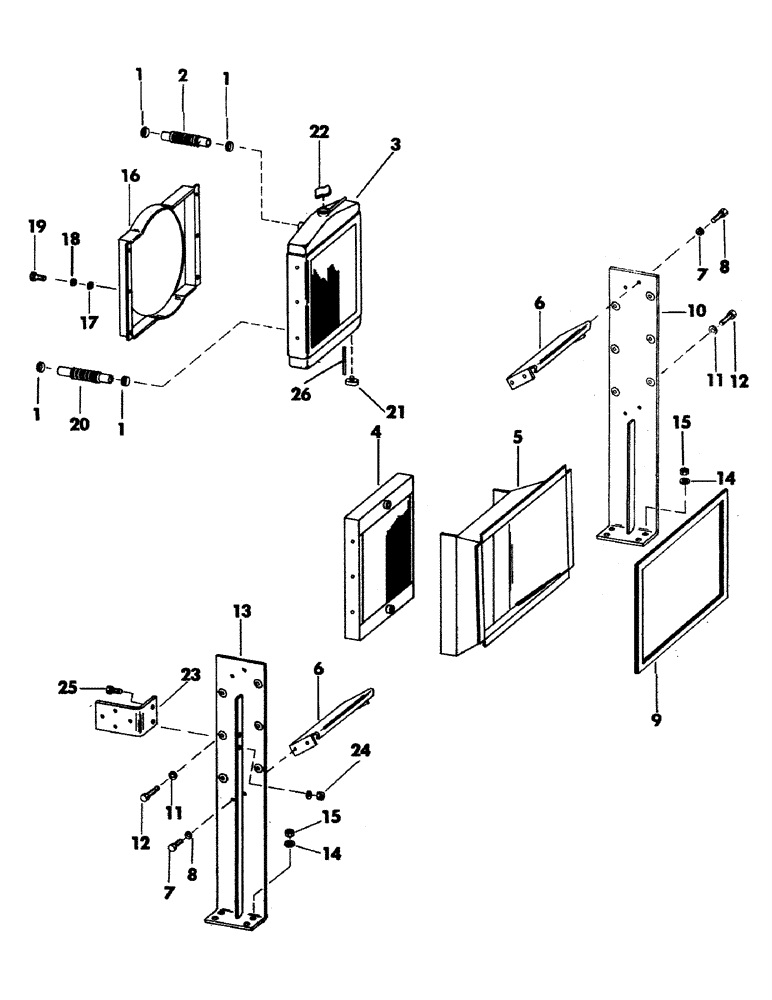

Запчасти Case 35YC (023) - RADIATOR, OIL COOLER AND HOSES (01) - ENGINE

1

S10880

HOSE CLAMP

CLAMP - (Used on Case engine)

4шт.

S10877

HOSE CLAMP

CLAMP - (Used on Detroit Diesel 4-53 engine)

4шт.

2

S94322

RADIATOR HOSE,2.50" ID x 8.50", SAE 20R4 CLASS SC

- (Used on Case engine) 2.50" ID x 8.50", SAE 20R4 CLASS SC

1шт.

S85934

RADIATOR HOSE

- (Used on Detroit Diesel 4-53 engine)

1шт.

3

S505699

RADIATOR - (Used on Case engine)

1шт.

S56881

RADIATOR - (Used on Detroit Diesel 4-53 engine)

1шт.

4

S601957

COOLER

1шт.

5

S602563

SHROUD, air

1шт.

6

S224302

BRACKET, radiator to cooler - (Upper) - (Used with Case 336BDT diesel engine) - (Used on units with serial number 300 thru 6265999)

1шт.

S224308

BRACKET, radiator to cooler - (Lower) - (Used with Case 336BDT diesel engine) - (Used on units with serial number 300 thru 6265999)

1шт.

S224304

BRACKET, radiator to cooler - (Upper and lower) - (Used with Detroit Diesel 4-53 engine) - (Used on units with serial number 300 thru 6265999)

2шт.

S509820

BRACKET, radiator to cooler - (Upper and lower) - (Used on units with serial number 6266000 and after)

2шт.

7

S4396

WASHER, LOCK

- 5/16"

8шт.

S7381

WASHER

flat - 5/16"

8шт.

8

S2375

BOLT

CPSW - 5/16" NC x 3/4" grade 5

7шт.

S2376

CPSW - 5/16" NC x 1" grade 5

1шт.

9

S76711

SEAL

MOULDING - (Bulk) - 1 piece x 116" long

1шт.

10

S505909

BRACKET, oil cooler and radiator - (Used with Case 336BDT diesel engine) - (Used on units with serial number 300 thru 6265999)

1шт.

S509828

BRACKET, oil cooler and radiator - (Used with Case 335BDT diesel engine) - (Used on units with serial number 6266000 and after)

1шт.

S219952

BRACKET, oil cooler and radiator - (Used with Detroit Diesel 4-53 engine) - (Used on units with serial number 300 thru 6265999)

1шт.

S228767

BRACKET, oil cooler and radiator - (Used with Detroit Diesel 4-53 engine) - (Used on units with serial number 6266000 and after)

1шт.

11

S7344

WASHER, LOCK

- 3/8"

12шт.

12

S76819

STEP BOLT

BOLT, shoulder - 5/16" NC x 1-/8" grade 5

12шт.

13

S505910

BRACKET, oil cooler and radiator - (Used with Case 336BDT diesel engine) - (Used on units with serial number 300 thru 6265999)

1шт.

S509827

BRACKET, oil cooler and radiator - (Used with Case 336BDT diesel engine) - (Used on units with serial number 6266000 and after)

1шт.

S219950

BRACKET, oil cooler and radiator - (Used with Detroit Diesel 4-53 engine) - (Used on units with serial number 300 thru 6265999)

1шт.

S228765

BRACKET, oil cooler and radiator - (Used with Detroit Diesel 4-53 engine) - (Used on units with serial number 6266000 and after)

1шт.

14

S84753

WASHER

flat - 1/2"

8шт.

15

S17086

NUT

self locking - 1/2" NC

8шт.

16

S602301

SHROUD

radiator - (Used with Case 336BDT engine)

1шт.

S602597

SHROUD, radiator - (Used with Detroit Diesel 4-53 engine)

1шт.

17

S7380

WASHER

flat - 1/4"

6шт.

18

S7342

WASHER, LOCK

- 1/4"

6шт.

19

S14458

SCREW, machine - 1/4" NC x 5/16" grade 5

6шт.

20

S85822

HOSE

2.50" ID x 16.00"; Used With CASE 336BD Engine

1шт.

S64061

HOSE,120.00 mm

RADIATOR HOSE, , Lower (Used with Detroit Diesel 4-53 Engine) 120.00 mm

1шт.

21

S49610

VALVE

radiator drain

1шт.

22

S89404

CAP

radiator - (7 lbs. pressure)

1шт.

23

S220540

BRACKET, relay mounting

1шт.

Change in listing.

1шт.

24

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

2шт.

25

S2402

BOLT

CPSW - 3/8" NC x 1-1/4" grade 5

1шт.

S2403

BOLT

CPSW - 3/8" NC x 1-1/2" grade 5

1шт.

26

S78385

TUBE, overflow - (Used with Detroit Diesel 4-53 engine) 25 mm OD x 1900 mm L

1шт.
