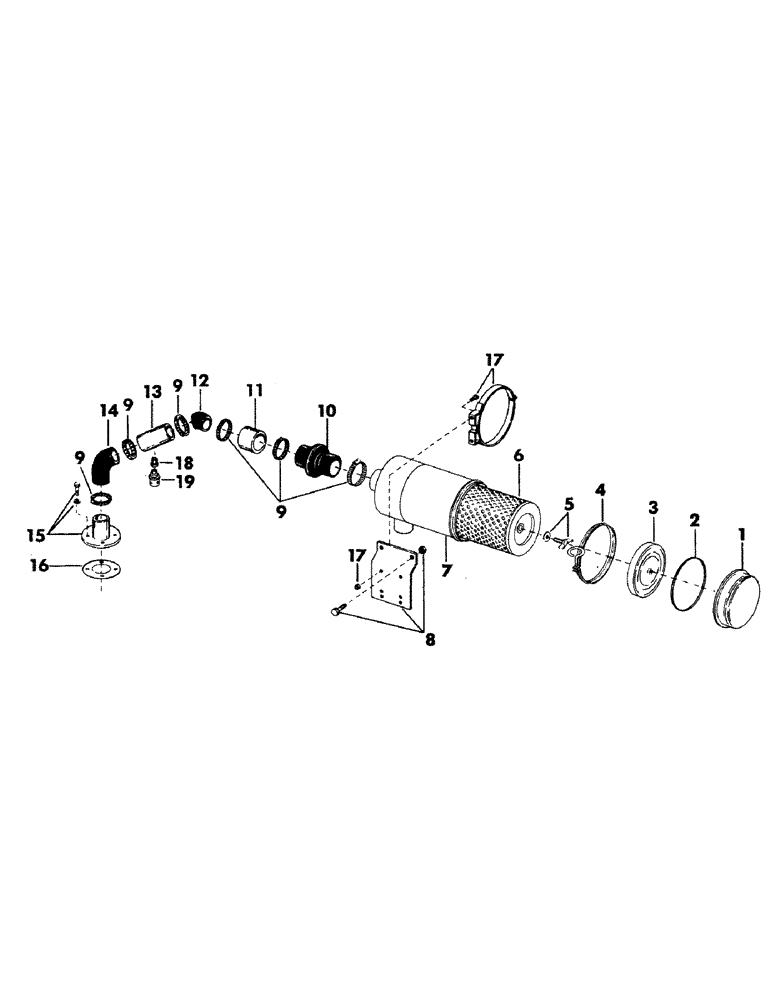

Запчасти Case 35YC (022) - AIR CLEANER AND RELATED PARTS FOR: DETROIT DIESEL 4-53 ENGINE. (01) - ENGINE

S505847

AIR CLEANER - complete (Consists of items 1 thru 7)

1шт.

1

L33819

CUP

1шт.

2

D50946

GASKET

"O" RING

1шт.

3

D50942

BAFFLE

1шт.

4

D50941

CLAMP

ASSEMBLY

1шт.

5

S221107

BOLT (MACHINE)

NUT ASSEMBLY

1шт.

6

S221106

ELEMENT

1шт.

7

NSS

NOT SOLD SEPARAT

BODY

1шт.

8

S219891

PLATE, air cleaner mounting -, Serial Range: (Mounts-shroud)

1шт.

S2466

BOLT

CPSW - 1/2" NC x 1-1/4" gr 5

2шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

2шт.

9

S83027

CLAMP

6шт.

10

S89590

HOSE,4.00" ID x 5.25"

ADAPTOR, , Straight Hump, Rubber 4.00" ID x 5.25"

1шт.

11

S80630

TUBE ASSY.,4" OD x 5" L

TUBE

1шт.

12

S92499

ELBOW

rubber - 45 degress

1шт.

13

S221273

TUBE 5.5" L

1шт.

14

S80631

90 ELBOW,58.0 mm ID mm ID

ELBOW, 4.00" ID x 5.80", 90-Degree, Rubber

1шт.

15

S206577

PIPE

ADAPTER -, Serial Range: (Mounts-engine)

1шт.

S2376

CPSW - 5/6" NC x 1" gr 5

4шт.

S4396

WASHER, LOCK

- 5/16"

4шт.

16

S69424

GASKET

1шт.

17

S219850

BAND

air cleaner mounting

2шт.

S2401

BOLT

CPSW - 3/8" NC x 1" gr 5

3шт.

S2402

BOLT

CPSW - 3/8" NC x 1-1/4" NC

1шт.

S17167

INSTRUCTION

NUT, self locking - 3/8"

4шт.

18

D36264

FITTING

CONNECTOR, special filter type

1шт.

19

A59569

INDICATOR

FILTER INDICATOR, air cleaner

1шт.
