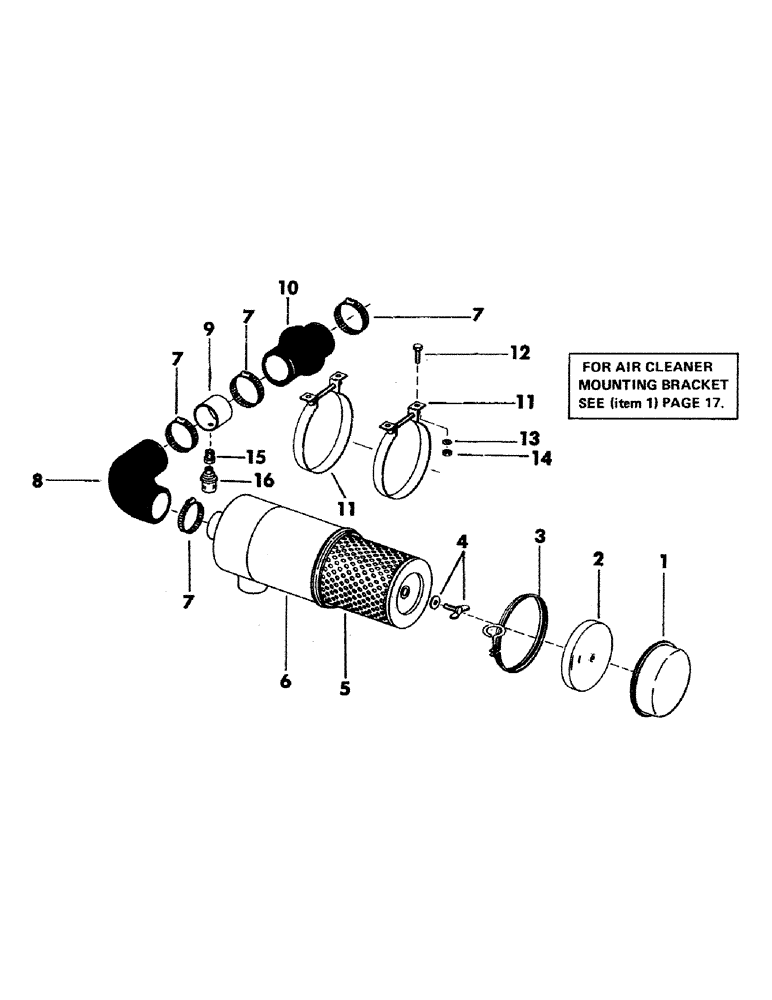

Запчасти Case 35YC (021) - AIR CLEANER AND RELATED PARTS FOR: CASE 336BDT DIESEL ENGINE (01) - ENGINE

S505694

AIR CLEANER

- (Consists of items 1 thru 6)

1шт.

1

A40951

CUP

air cleaner

1шт.

2

D37979

BAFFLE

air cleaner

1шт.

3

R15731

CLAMP

ASSEMBLY, air cleaner

1шт.

4

F91761

WING NUT

ASSEMBLY, air cleaner

1шт.

5

D37975

FILTER

ELEMENT, air cleaner

1шт.

6

NSS

NOT SOLD SEPARAT

BODY, air cleaner

1шт.

7

S83025

CLAMP

4шт.

8

S82466

ADAPTER

ELBOW, rubber

1шт.

9

S220418

TUBE

1шт.

10

S87799

ROD, CONNECTING

CONNECTOR, rubber hump

1шт.

11

S64722

BAND, slip

2шт.

12

S2401

BOLT

CPSW - 3/8" NC x 1" long

4шт.

13

S7387

WASHER

flat - 3/8"

4шт.

14

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

4шт.

15

D36264

FITTING

CONNECTOR, special filter type

1шт.

16

A59568

INDICATOR

FILTER INDICATOR, air cleaner

1шт.
