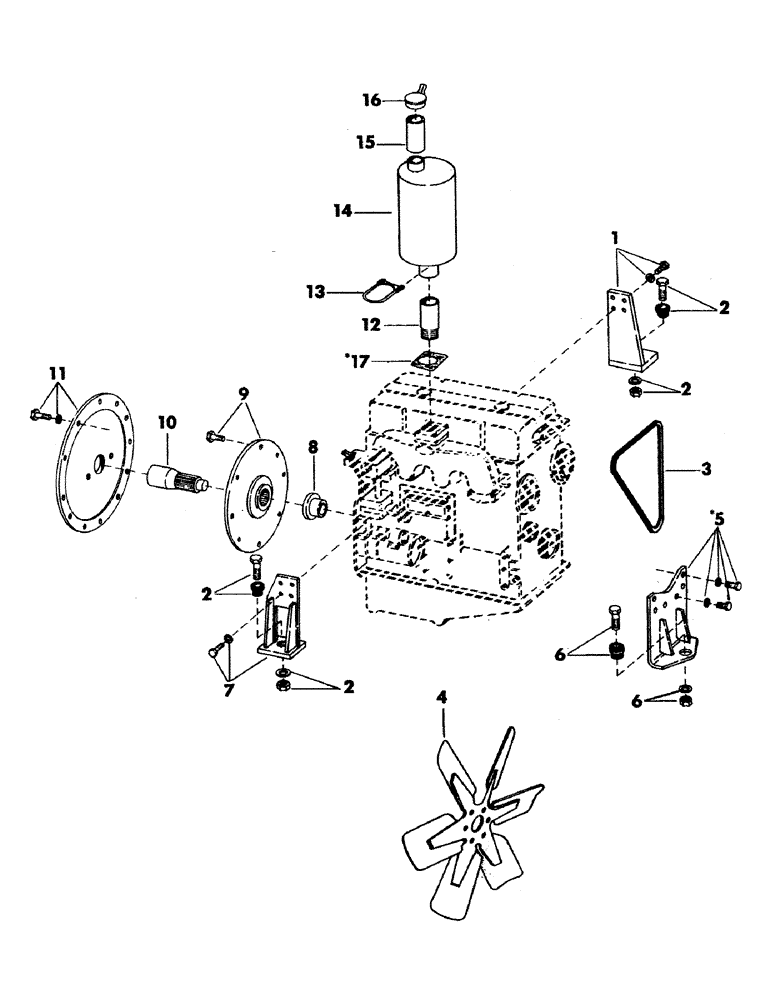

Запчасти Case 35YC (019) - DETROIT DIESEL 4-53 ENGINE (DROTT NO. S55950M1) AND ATTACHING PARTS. (01) - ENGINE

1

S505899

MOUNT, engine - (L.R.)

1шт.

S4399

WASHER

lock - 1/2"

4шт.

S2466

BOLT

CPSW - 1/2" NC x 1-1/4" grade 5

4шт.

2

S2554

BOLT (MACHINE)

CPSW - 3/4" NC x 4-1/4" grade 5

2шт.

S93392

MOUNTING PARTS

MOUNT, rubber

2шт.

S82255

WASHER

snubbing

2шт.

231-14012

LOCK NUT,3/4"-10, GB

NUT, self locking - 3/4"

2шт.

3

S80926

SET OF BELTS, Fan, V-Belt (Matched set of 2)

1шт.

S27955

SET OF BELTS,0.38" W

V Belt, Alternator (Matched set of 2) 0.38" W

1шт.

4

S505472

FAN

1шт.

S80925

HUB

1шт.

5

S505897

MOUNT, engine - (Front)

1шт.

S4397

WASHER

lock - 3/8"

4шт.

S2412

BOLT

CPSW - 3/8" NC x 3-3/4" grade 5

4шт.

S4398

WASHER, LOCK

- 7/16"

2шт.

S2431

BOLT

CPSW - 7/16" NC x 1-1/4" grade 5

2шт.

6

S2555

BOLT (MACHINE)

CPSW - 3/4" NC x 4-1/2" grade 5

1шт.

S93392

MOUNTING PARTS

MOUNT, rubber

1шт.

S82255

WASHER

snubbing

1шт.

231-14012

LOCK NUT,3/4"-10, GB

NUT, self locking - 3/4" NC

1шт.

7

S505901

MOUNT, engine - (R.R.)

1шт.

S2471

BOLT

CPSW - 1/2" NC x 2-1/2" grade 5

4шт.

S4399

WASHER

lock - 1/2"

4шт.

8

S63071

SPACER

1шт.

9

S502452M1

DAMPENER

1шт.

S63218

BOLT

CPSW - 3/8" NC x 5/8" grade 8

8шт.

10

S63201

COUPLING

1шт.

11

S52615

MOUNTING PARTS

MOUNTING, hydraulic pump

1шт.

S2401

BOLT

CPSW - 3/8" NC x 1" grade 5

11шт.

S2402

BOLT

CPSW - 3/8" NC x 1-1/4" grade 5

1шт.

S4397

WASHER

flat - 3/8"

12шт.

12

S219957

ADAPTER, exhaust - (Used on units with serial number 300 thru 707)

1шт.

S219958

ADAPTER, exhaust - (Used on units with serial number 708 and after)

1шт.

13

S92543

CLAMP, exhaust pipe - (Used on units with serial number 300 thru 707)

2шт.

S68529

CLAMP

exhaust pipe - (Used on units with serial number 708 and after)

2шт.

14

S505881

MUFFLER

- (Used on units with serial number 300 thru 707)

1шт.

S508420

MUFFLER

- (Used on units with serial number 708 and after)

1шт.

15

S93396

TUBE,4" OD x 18" L

PIPE, exhaust - (Used on units with serial number 300 thru 707)

1шт.

S98927

PIPE CLAMP

PIPE, exhaust - (Used on units with serial number 708 and after)

1шт.

16

S93398

CAP

exhaust pipe - (Used on units with serial number 300 thru 707)

1шт.

A19795

CAP

exhaust pipe - (Used on units with serial number 708 and after)

1шт.

17

S99909

GASKET, exhaust

1шт.

Added listing.

1шт.
