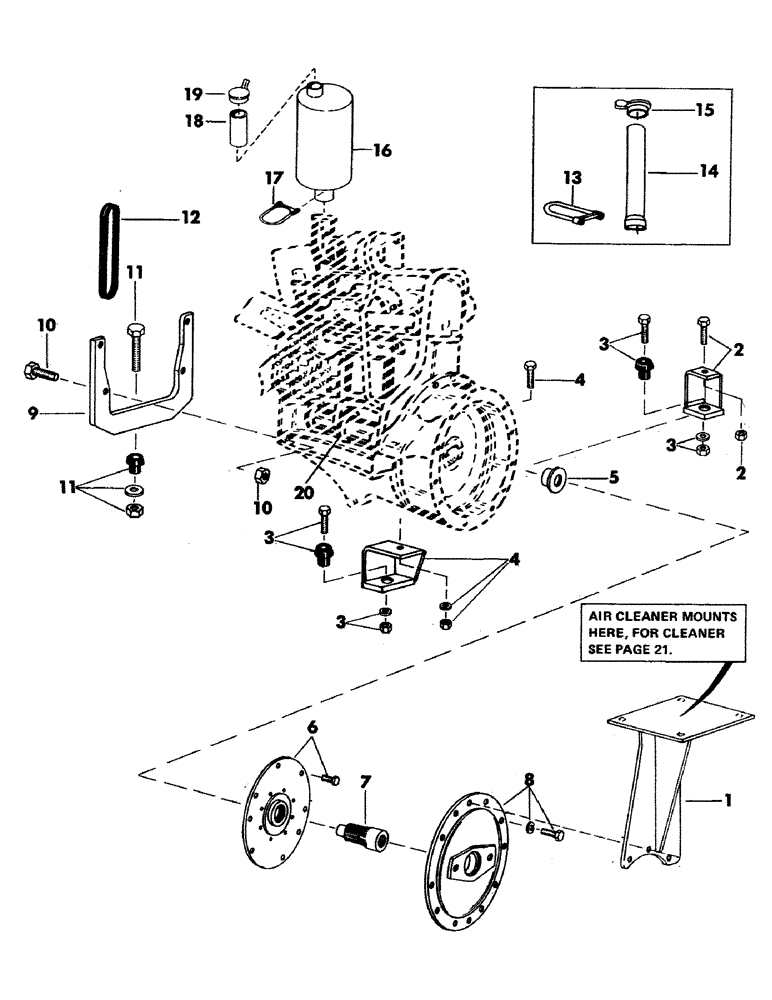

Запчасти Case 35YC (017) - CASE 336BDT DIESEL ENGINE (DROTT NO. A58528) AND ATTACHING PARTS (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
S506325M1
BRACKET, air cleaner mounting
1шт.
2
S220155
BRACKET, engine mounting - (Right rear)
1шт.
S2550
BOLT (MACHINE)
CPSW - 3/4" NC x 1/4" grade 5
1шт.
S17089
NUT
self locking - 3/4" NC
1шт.
3
S2554
BOLT (MACHINE)
CPSW - 3/4" NC x 4-1/4" grade 5
2шт.
S82255
WASHER
flat - 3/4"
2шт.
S93392
MOUNTING PARTS
GROMMET, rubber
2шт.
S17089
NUT
self locking - 3/4" NC
2шт.
4
S220156
BRACKET, engine mounting - (Left rear)
1шт.
S2550
BOLT (MACHINE)
CPSW - 3/4" NC x 3-1/4" grade 5
1шт.
S17089
NUT
self locking - 3/4" NC
1шт.
5
S87483
ADAPTER
1шт.
6
S33201M1
DAMPER
DAMPENER
1шт.
S63218
BOLT
CPSW - 3/8" NC x 5/8" grade 8
8шт.
7
S63201
COUPLING
1шт.
8
S52615
MOUNTING PARTS
MOUNTING, pump
1шт.
S4397
WASHER
lock - 3/8"
12шт.
S2401
BOLT
CPSW - 3/8" NC x 1" grade 5
8шт.
S2402
BOLT
CPSW - 3/8" NC x 1-1/4" grade 5
4шт.
9
S219772
BRACKET, front engine mounting
1шт.
10
S2549
BOLT
CPSW - 3/4" NC x 3" grade 5
4шт.
S17089
NUT
self locking - 3/4" NC
4шт.
11
S2555
BOLT (MACHINE)
CPSW - 3/4" NC x 4-1/2" grade 5
1шт.
S93392
MOUNTING PARTS
GROMMET, rubber
1шт.
S82255
WASHER
flat - 3/4"
1шт.
S17089
NUT
self locking - 3/4" NC
1шт.
12
S86287
SET OF BELTS,0.69" W x 62.00" L
V- Belt (Matched set) 0.69" W x 62.00" L
1шт.
13
S85396
CLAMP
- (Used on units with serial number 300 thru 707)
1шт.
14
S93395
PIPE
exhaust - (Used on units with serial number 300 thru 707)
1шт.
15
A62175
CYLINDER END CAP
CAP, pipe - (Used on units with serial number 300 thru 707)
1шт.
Change in listing.
1шт.
16
S508420
MUFFLER
- (Used on units with serial number 708 and after)
1шт.
17
S68529
CLAMP
- (Used on units with serial number 708 and after)
2шт.
18
S98927
PIPE CLAMP
PIPE, exhaust - (Used on units with serial number 708 and after)
1шт.
19
A19795
CAP
pipe - (Used on units with serial number 708 and after)
1шт.
20
A64907
ELECTRIC MOTOR
STARTER, 12 volt
1шт.
A75865
WASHER
1шт.
S2469
BOLT
CPSW - 1/2" NC x 2" grade 5
2шт.
S2474
BOLT (MACHINE)
CPSW - 1/2" NC x 3-1/4" grade 5
1шт.
S4399
WASHER
lock - 1/2"
3шт.
Выбрано товаров: 40
