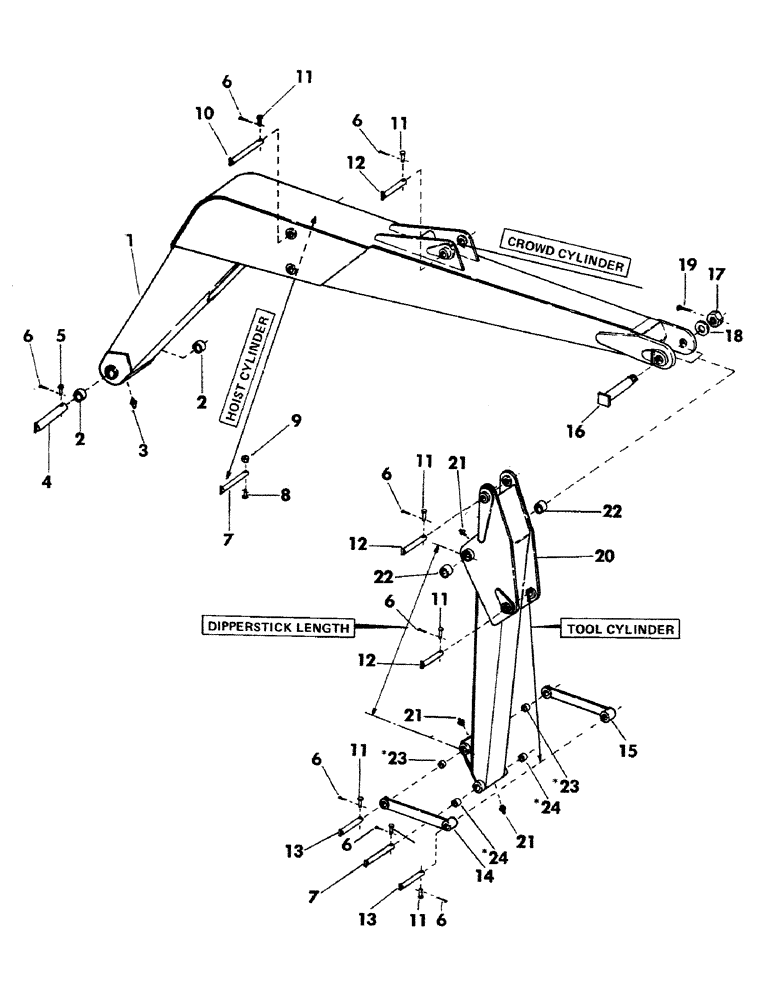

Запчасти Case 35YC (055) - "E" MAIN BOOM AND DIPPERSTICK (09) - BOOMS

1

S954033

BOOM

main excavator - (Includes items 1 and 3) - (Supersedes S951385M1) - (When kit no. S608903 is used, see item 25)

1шт.

2

S210602

BUSHING,63.42mm ID x 76.31mm OD x 50.8mm L

2шт.

3

S12031

FITTING,1/8"-27 x .66 lg

grease - 1/8" NPT - (Straight)

1шт.

4

S201023M1

PIN

1шт.

5

S61976

CLEVIS PIN

PIN, clevis - 5/8" x 3.766" grip length

1шт.

6

S4627

SPLIT PIN

PIN, cotter - 1/8" x 1" long

8шт.

7

S213911

PIN

2шт.

8

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

9

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

1шт.

10

S208517

PIN ASSY.

PIN - (Hoist, Serial Range: cylinder-boom)

1шт.

11

S61973

AXLE PIN

PIN, clevis - 1/2" x 3.766" grip length

7шт.

12

S208704

PIN

- (Crowd, Serial Range: cylinder-boom)

2шт.

13

S223986

PIN

2шт.

14

S38354

LINK

guide - (Right hand)

1шт.

15

S38355M1

LINK

guide - (Left hand)

1шт.

16

S208708

PIN

shoulder

1шт.

17

S9396

NUT

slotted - 2" NC

1шт.

18

S7436

WASHER

flat - 2"

1шт.

19

S4678

PIN

cotter - 1/4" x 3-1/2" long

1шт.

20

S952921M1

DIPPERSTICK - 9'-0" - (Includes items 21 thru 24)

1шт.

S953264

DIPPER

STICK - 10'-6" (Includes items 21 thru 24)

1шт.

21

S12031

FITTING,1/8"-27 x .66 lg

grease - 1/8" NPT - (Straight)

3шт.

22

S210602

BUSHING,63.42mm ID x 76.31mm OD x 50.8mm L

2шт.

23

S202134

BUSHING

2шт.

24

S202137

BUSHING,50.73mm ID x 63.63mm OD x 63.5mm L

2шт.

25

S608903

KIT, "E" boom sound conversion - (Required on units with serial number 300 thru 707 when replacement of boom S951385M1 is required) - (Not illustrated)

1шт.
