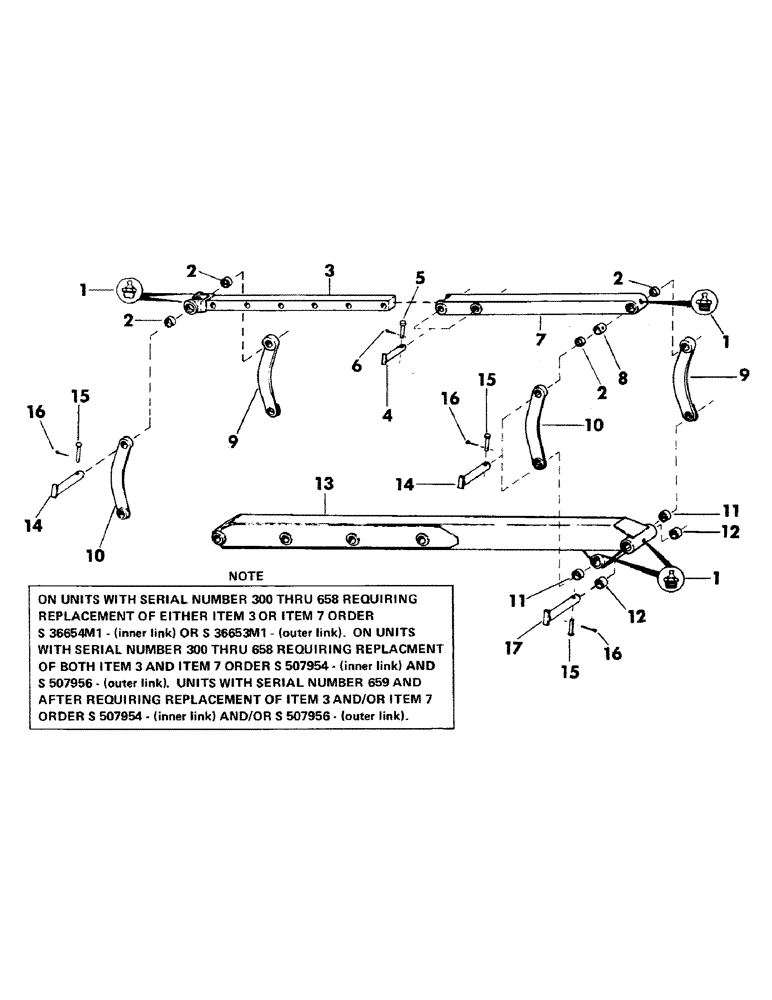

Запчасти Case 35YC (054) - "Y" TOOL BOOM EXTENSION (09) - BOOMS

1

S12031

FITTING,1/8"-27 x .66 lg

grease - 1/8" NPT - (Straight)

5шт.

2

S202134

BUSHING

4шт.

3

S36654M1

LINK

adjustable inner - (Used on units with serial number 300 thru 658)

1шт.

S507954

LINK

adjustable inner - (Used on units with serial number 659 and after)

1шт.

Change in listing.

1шт.

4

S206139M1

PIN

2шт.

5

S10785

PIN

clevis - 3/8" x 3.266" grip length

2шт.

6

S4641

PIN, SPLIT (COTTER)

PIN, cotter - 3/32" x 1" long

2шт.

7

S36653M1

LINK, adjustable outer - (Used on units with serial number 300 thru 658)

1шт.

S507956

LINK

adjustable outer - (Used on units with serial number 659 and after)

1шт.

8

S74929

SPACER

1шт.

9

S38355M1

LINK

LEVER - (Left hand)

2шт.

10

S38354

LINK

LEVER - (Right hand)

2шт.

11

S202134

BUSHING

2шт.

12

S202137

BUSHING,50.73mm ID x 63.63mm OD x 63.5mm L

2шт.

13

S54503M4

EXTENSION, tool boom

1шт.

14

S223986

PIN

3шт.

15

S61973

AXLE PIN

PIN, clevis - 1/2" x 3.766" grip length

4шт.

16

S4627

SPLIT PIN

PIN, cotter - 1/8" x 1" long

4шт.

17

S213911

PIN

1шт.
