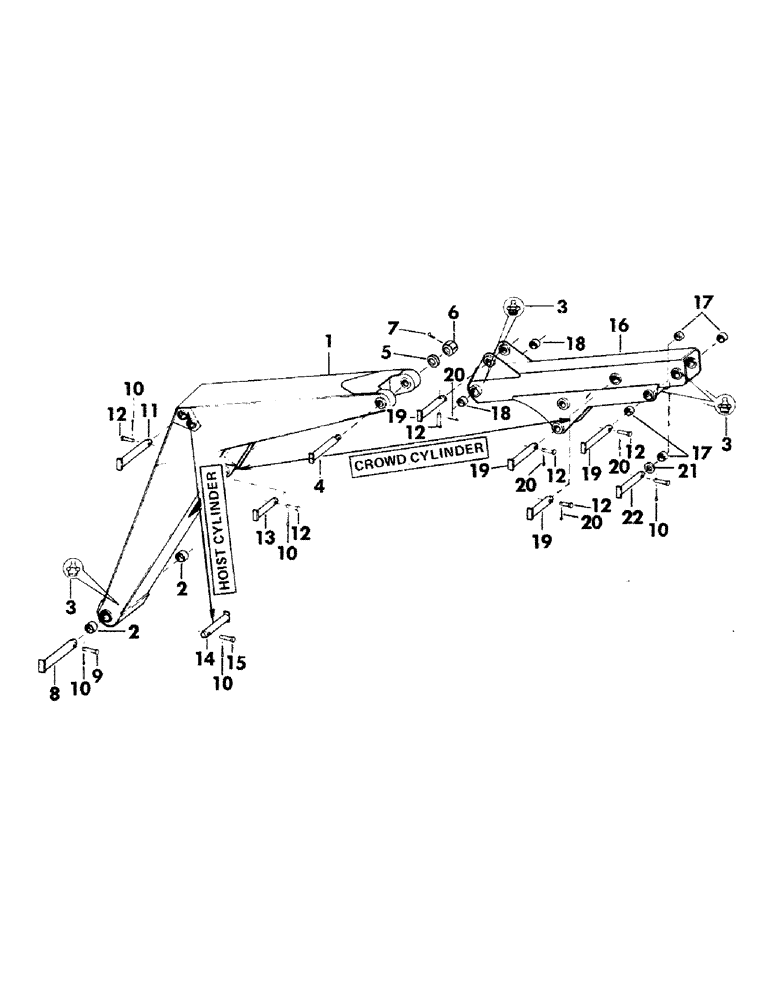

Запчасти Case 35YC (053) - "Y" MAIN BOOM AND "Y" TOOL BOOM (09) - BOOMS

1

S954062

BOOM

main - (Includes 2 of item 2 and 1 of item 3) - (Supersedes S952738) - (When kit no. S608904 is used see item 23)

1шт.

2

S210602

BUSHING,63.42mm ID x 76.31mm OD x 50.8mm L

1шт.

3

S12031

FITTING,1/8"-27 x .66 lg

grease - 1/8" NPT x (Straight)

1шт.

4

S220250

PIN ASSY.

PIN

1шт.

5

S7436

WASHER

flat - 2-5/8"

1шт.

6

S9396

NUT

slotted

1шт.

7

S4678

PIN

cotter - 1/8" x 1" long

1шт.

8

S201023M1

PIN

1шт.

9

S61976

CLEVIS PIN

PIN, clevis - 5/8" x 3.766" grip length

1шт.

10

S4627

SPLIT PIN

PIN, cotter - 1/8" x 1" long

5шт.

11

S208517

PIN ASSY.

PIN

1шт.

12

S61973

AXLE PIN

PIN, clevis - 1/2" x 3.766" grip length

7шт.

13

S223986

PIN

1шт.

14

S213911

PIN

1шт.

15

S61974

PIN

clevis - 1/2" x 4.266" grip length

1шт.

16

S54498M2

BOOM, tool - (Includes items 17, 18, and 4 of item 3)

1шт.

17

S202134

BUSHING

4шт.

18

S210602

BUSHING,63.42mm ID x 76.31mm OD x 50.8mm L

2шт.

19

S223986

PIN

4шт.

20

S4641

PIN, SPLIT (COTTER)

PIN, cotter - 5/32" x 1" long

1шт.

21

S68746

COLLAR

1шт.

22

S204746M1

PIN

1шт.

23

S608904

KIT, "Y" boom sound conversion - (Required on units with serial number 300 thru 707 when replacement of boom S952738 is required) - (Not illustrated)

1шт.
