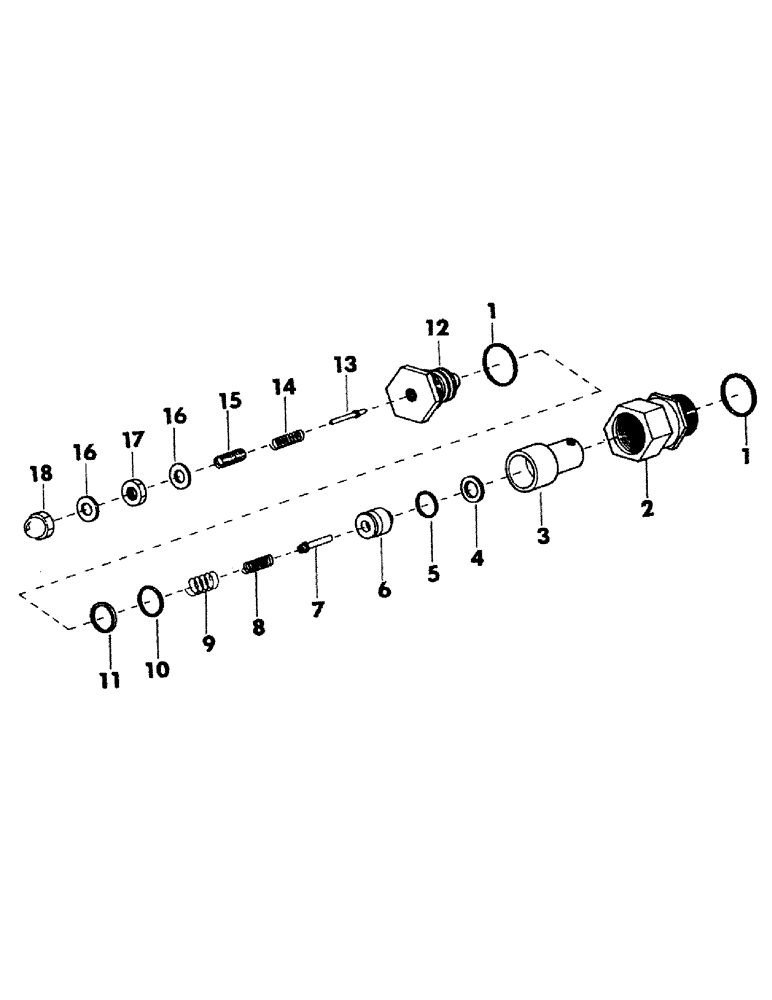

Запчасти Case 35YC (146) - PORT RELIEF CARTRIDGE (07) - HYDRAULIC SYSTEM

S81689M1

CARTRIDGE, port relief - set at 3000 PSI - complete (Consists of items 1 thru 18)

8шт.

S81796M1

VALVE

CARTRIDGE, port relief - set at 2250 PSI - complete (Consists of items 1 thru 18)

4шт.

S85640

VALVE

CARTRIDGE, port relief - set at 2500 PSI - complete (Consists of items 1 thru 18)

2шт.

1

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

2шт.

2

S62302

CAP

1шт.

3

S62303

POPPET

1шт.

4

S84098

BACK-UP RING,1/2" ID x 11/16" OD

back up

1шт.

5

S6476

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

"O" RING - .487" ID x .687" OD

1шт.

6

S62366

VALVE POPPET

POPPET

1шт.

7

S62324

PISTON

1шт.

8

S62326

SPRING

1шт.

9

S62368

SPRING

1шт.

10

S6574

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

"O" RING - .734" ID x 1.000" OD

1шт.

11

S84155

BACK-UP RING,76mm ID x 0.45mm Width

back up

1шт.

12

S62304

PLUG

1шт.

13

S62323

POPPET

1шт.

14

S62359

SPRING

1шт.

15

S62325

ADJUSTMENT SCREW

adjustment

1шт.

16

S62365

WASHER

copper

2шт.

17

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" NF

1шт.

18

S62363

NUT

acorn

1шт.
