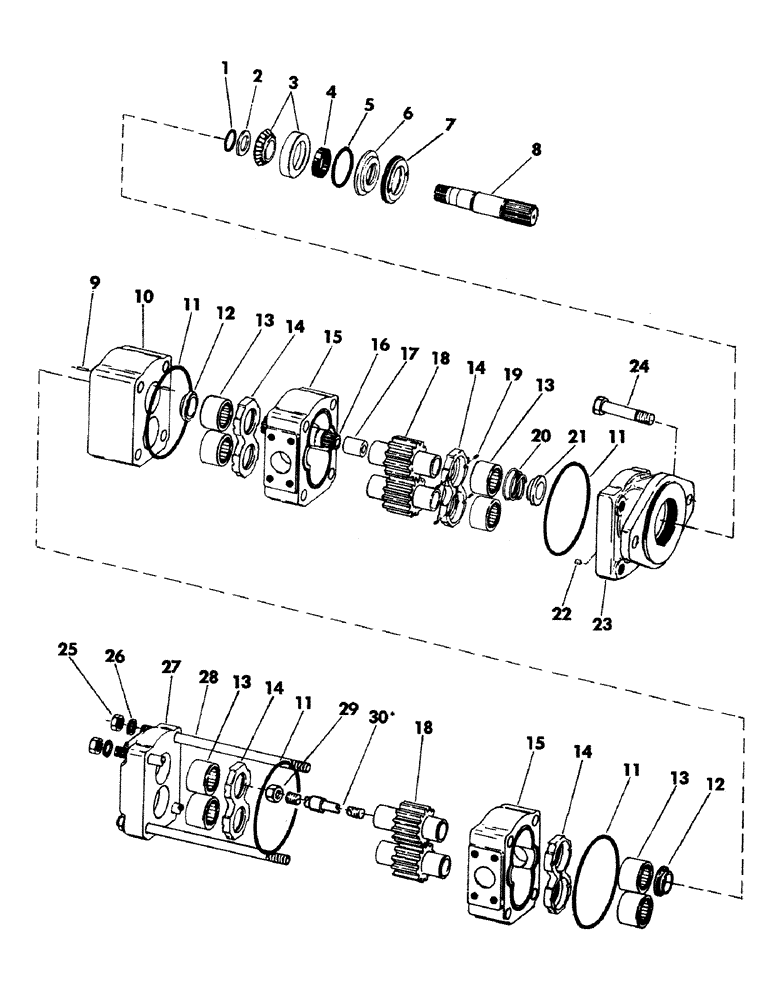

Запчасти Case 35YC (129) - HYDRAULIC TANDEM PUMP (07) - HYDRAULIC SYSTEM

S608014

PUMP

hydraulic tandem - complete (Consists of items 1 thru 30) - (Supersedes S205756)

1шт.

1

S63525

O-RING

RING, snap

1шт.

2

S63524

SPACER

shaft

1шт.

3

S63513

TAPERED BEARING

BEARING, roller

1шт.

4

S63515

SEAL

double lip

1шт.

5

S6592

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

"O" RING - 2.234" ID x 2.500" OD

1шт.

6

S63514

SEGMENT

RETAINER, seal

1шт.

7

S63516

RETAINER

RING, retainer

1шт.

8

S63523

SHAFT

drive

1шт.

9

S63529

PIN

roll

2шт.

10

S63527

CARRIER, bearing - (Supersedes S70399)

1шт.

Change in listing.

1шт.

11

S83751

SEAL

"O" RING - 4.250" ID x 4.500" OD - (Supersedes S6333)

4шт.

12

S63528

BUSHING

shaft

2шт.

13

S63517

ROLLER BEARING

roller

8шт.

14

S63522

LARGE PLATE

PLATE, thrust

4шт.

15

S101453

HOUSING

gear - (Supersedes S72564)

2шт.

16

S63530

SHAFT

1шт.

17

S76245

SPACER

2шт.

18

S72565

GEAR-SET

GEAR - set - 1-3/4"

2шт.

19

S17682

SEAL

pocket - (2 strips make enough seals for tandem pump)

2шт.

20

S63518

SPRING

1шт.

21

S63519

BUSHING

shaft

1шт.

22

S61749

VALVE

CHECK

2шт.

23

S63512

COVER, shaft end

1шт.

24

S2504

CPSW - 5/8" NC x 1-3/4" Gr 5 - (Pump mounting)

2шт.

25

S4206

NUT - 9/16" NF

4шт.

26

S80754

WASHER

flat - 21/32"

4шт.

27

S63520

COVER, port end

1шт.

28

S76269

STUD

connecting - external

4шт.

29

S63533

LOCK NUT

NUT, lock

1шт.

30

S76268

STUD, connecting - internal

1шт.
