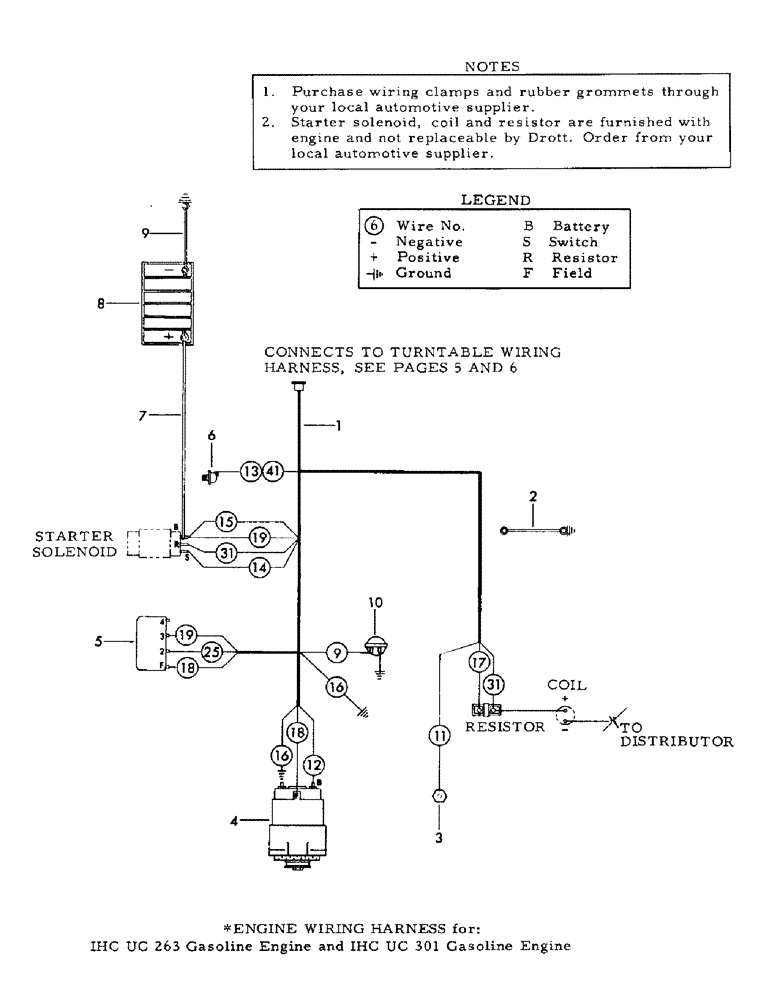

Запчасти Case 35YC (I01) - ENGINE WIRING HARNESS FOR: IHC UC 263 GASOLINE ENGINE AND IHC UC 301 GASOLINE ENGINE (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
57137
WIRING HARNESS - engine
1шт.
2
73079
CABLE - engine ground
1шт.
2401
LAMP
CPSW - 3/8" x 1" NC grade 5
1шт.
4397
LOCKWASHER - 3/8"
1шт.
4222
NUT - 3/8" NC
1шт.
3
27825M1
SENDING UNIT - engine temperature - Stewart Warner #362-X or F.E.
1шт.
4
ALTERNATOR - 12 volt, 55 amp, Delco-Remy #1100690, negative ground and counterclockwise rotation (Purchase locally)
1шт.
17276
NUT - alternator - #10 NF
1шт.
7480
LOCKWASHER - #10
1шт.
17277
NUT - alternator - #12 NF
1шт.
7481
LOCKWASHER - #12
1шт.
64612
SHIM,0.012" Thk
0.12" Thk, Boot, Rubber - Used on battery post of alternator
1шт.
32921
FAN - pulley alternator - Delco-Remy #1940994
1шт.
62938
PULLEY - alternator
1шт.
5
REGULATOR - voltage - 12 volt, Delco-Remy #1119513 and negative ground (Purchase locally)
1шт.
2350
STOP
CPSW - 1/4" x 3/4" NC grade 5
2шт.
4395
WASHER
LOCKWASHER - 1/4"
2шт.
7377
WASHER - flat - 1/4" (Used on CPSW which mounts ground wire and voltage regulator)
1шт.
4220
TOOL
NUT - 1/4" NC
2шт.
6
27826M2
SENDING UNIT - oil pressure - Stewart Warner #353-Z or F.E.
1шт.
Change in listing.
1шт.
7
63636
CROSS WRENCH
CABLE - battery - starter, Serial Range: solenoid-battery
1шт.
8
BATTERY - dry - purchase at your local dealer
1шт.
9
45608
ROLL PIN
CABLE - battery -, Serial Range: battery-frame
1шт.
2401
LAMP
CPSW - 3/8" x 1" NC grade 5
1шт.
7387
LOCTITE
WASHER - flat - 3/8"
1шт.
4397
LOCKWASHER - 3/8"
1шт.
10
27830M2
HOURMETER - Hamilton #572 or F.E. (Furnished with wires) (Used on units with serial number 1 thru 200)
1шт.
Change in listing.
1шт.
213391
SPACER
HOURMETER - Hamilton #571 or F.E. (Furnished with wires) (Used on units with serial number 201 and up) Refs. listed below used with hourmeter #213391
1шт.
added listing.
1шт.
85106
DAMPER
1шт.
Added listing.
1шт.
14510
SCREW - machine - #6 x 5/8" NC
3шт.
Added listing.
1шт.
7338
SPARE PART
LOCKWASHER - #6
3шт.
Added listing.
1шт.
17261
FUNNEL
NUT - #6 NC
3шт.
Added listing.
1шт.
Выбрано товаров: 39
