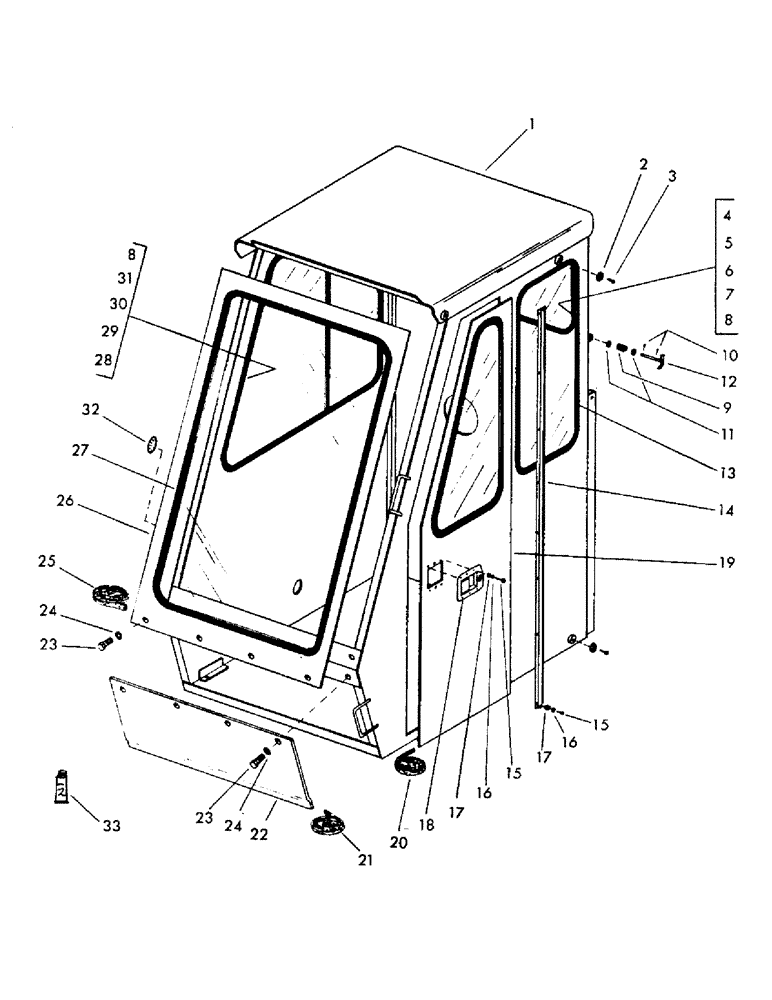

Запчасти Case 35YC (J13) - LOGGER CAB (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
59148
CAB - complete - (Consists of items 1 thru 36)
1шт.
1
952070
CAB - weldment
1шт.
2
NLS
NO LONGER SERVICED
BUMPER - door
2шт.
3
7642
SCREEN - round head, self tapping - #10 x 3/4" NC
2шт.
4
64677
SHAFT W/WORM SCREW
MOULDING - douple pane - (Bulk)
68шт.
5
64679
MOULDING - slide channel - (Bulk)
68шт.
6
64678
MOULDING - spacer - (Bulk)
68шт.
7
64680
SEAL - sliding windows
13шт.
8
64681
SCREW
HANDLE - sliding window
2шт.
9
78626
SPRING
1шт.
10
4627
COTTER PIN
PIN - cotter - 1/8" x 1" long
2шт.
11
7395
WASHER - plain - 1/2"
2шт.
12
212463
RING
HANDLE
1шт.
13
64704
DOWEL
MOULDING - single pane - (Bulk) - (2) pieces
84шт.
14
212503
HINGE - door
1шт.
15
63188
CPSW - button head - 1/4" x 5/8" NC GR 5
22шт.
16
4395
WASHER
LOCKWASHER - 1/4"
22шт.
17
4220
TOOL
NUT - 1/4" NC
14шт.
18
63183
LATCH - door
1шт.
19
502844
DOOR
1шт.
20
78497
STRIPPING - weather
150шт.
21
62996
STRIPPING - weather
19шт.
22
212499
PANEL - front
1шт.
23
2401
LAMP
CPSW - 3/8" x 1" NC GR 5
8шт.
24
4397
LOCKWASHER - 3/8"
8шт.
25
62996
STRIPPING - weather
97шт.
26
502841
FRAME - windshield
1шт.
27
64704
DOWEL
MOULDING - single pane - (Bulk)
128шт.
28
64677
SHAFT W/WORM SCREW
MOULDING - douple pane - (Bulk)
120шт.
29
64679
MOULDING - slide channel (Bulk)
120шт.
30
64678
MOULDING - spacer - (Bulk)
120шт.
31
64680
SEAL - sliding window
26шт.
32
77418
PLUG - button
1шт.
33
75839
SPARE PART
ADHESIVE - door weather stripping
1шт.
34
17169
NUT - self locking - 1/2" NC -, Serial Range: (Cab-platform)
9шт.
35
4399
WASHER
LOCKWASHER - 1/2" -, Serial Range: (Cab-platform)
9шт.
36
86132
SPROCKET ASSY.
WASHER - flat - 17/32" -, Serial Range: (Cab-platform)
9шт.
Выбрано товаров: 37
