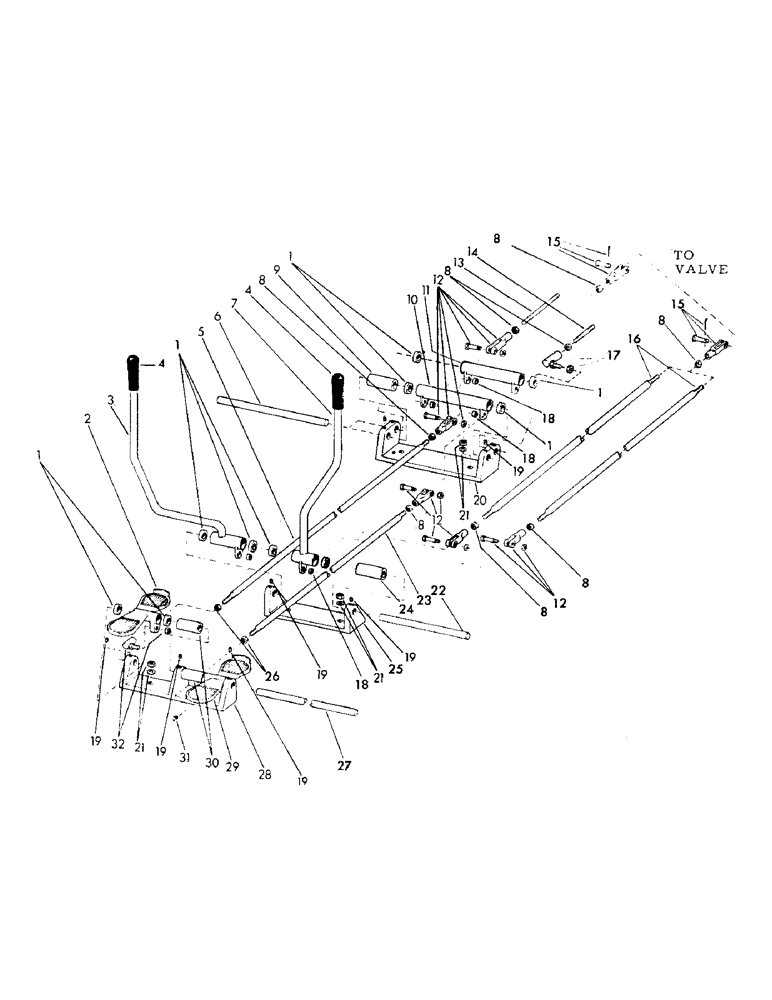

Запчасти Case 35YC (D06) - FUNCTION CONTROLS (CROWD, HOIST, SWING AND TOOL) (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
1
63168
BEARING
12шт.
2
55012
PEDAL - tool
1шт.
3
501632
BUSHING
LEVER - crowd (Includes grease fitting)
1шт.
49793
GUARD
FITTING - grease - 1/4" NPT (65 degrees)
1шт.
4
63411
KNOTTER
GRIP - handle
2шт.
5
201575
SPARE PART
ROD - link
1шт.
6
71864
SHAFT
2шт.
7
501633
SHAFT
LEVER - hoist (Includes grease fitting)
1шт.
49793
GUARD
FITTING - grease - 1/4" NPT (65 degrees)
1шт.
8
4243
SPRING COMPRESSOR
NUT - jam - 3/8" NF
10шт.
9
80390
SET SCREW,Sq Hd, 3/8"-16 x 1"
SPACER (Used in lieu of leveler control lever)
1шт.
10
209925
BELLCRANK (Includes grease fitting)
1шт.
46960
FITTING - grease - 1/4" NPT (Straight)
1шт.
11
209926
BELLCRANK (Includes grease fitting)
1шт.
49793
GUARD
FITTING - grease - 1/4" NPT (65 degrees)
1шт.
12
12514
CIRCLIP
YOKE
5шт.
40816
BOLT - shoulder - 3/8" NF
5шт.
17153
O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro
NUT - self locking - 3/8" NF
5шт.
13
80384
BELT
ROD - link
1шт.
14
80385
SET SCREW,Serrated, 1/2" x 3/4"
ROD - link
1шт.
15
12514
CIRCLIP
YOKE
4шт.
87016624
CLEVIS PIN,3/8" x 1 1/4"
- 3/8" x 1 1/4"
4шт.
4627
COTTER PIN
PIN - cotter - 1/8" x 1" long
4шт.
16
201576
ROD - link
2шт.
17
27134
BALLJOINT
1шт.
17153
O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro
NUT - self locking - 3/8" NF
1шт.
18
40815
ENGINE MOUNT
BEARING
5шт.
19
14045
DUST CAP
SCREW - set - 5/16" x 5/16" NC
9шт.
20
209930
BRACKET
1шт.
21
17167
LOCK NUT
NUT - self locking - 3/8" NC
6шт.
7389
WASHER - flat - 7/16"
6шт.
22
71862
SHAFT
1шт.
23
209931
ROD - link
1шт.
24
77611
SPACER
1шт.
25
206000
BRACKET
1шт.
26
4245
SEAL KIT
NUT - jam - 1/2" NF
2шт.
27
75354
CONTROL
SHAFT
1шт.
28
205433
BRACKET
1шт.
30
67750
SPACER
2шт.
7403
WASHER - flat - 11/16" (Not illustrated)
2шт.
31
49793
GUARD
FITTING - grease - 1/4" NPT (65 degrees)
2шт.
32
26213
CLIP
BALLJOINT
2шт.
17105
NUT - self locking - 1/2" NF
2шт.
Выбрано товаров: 44
