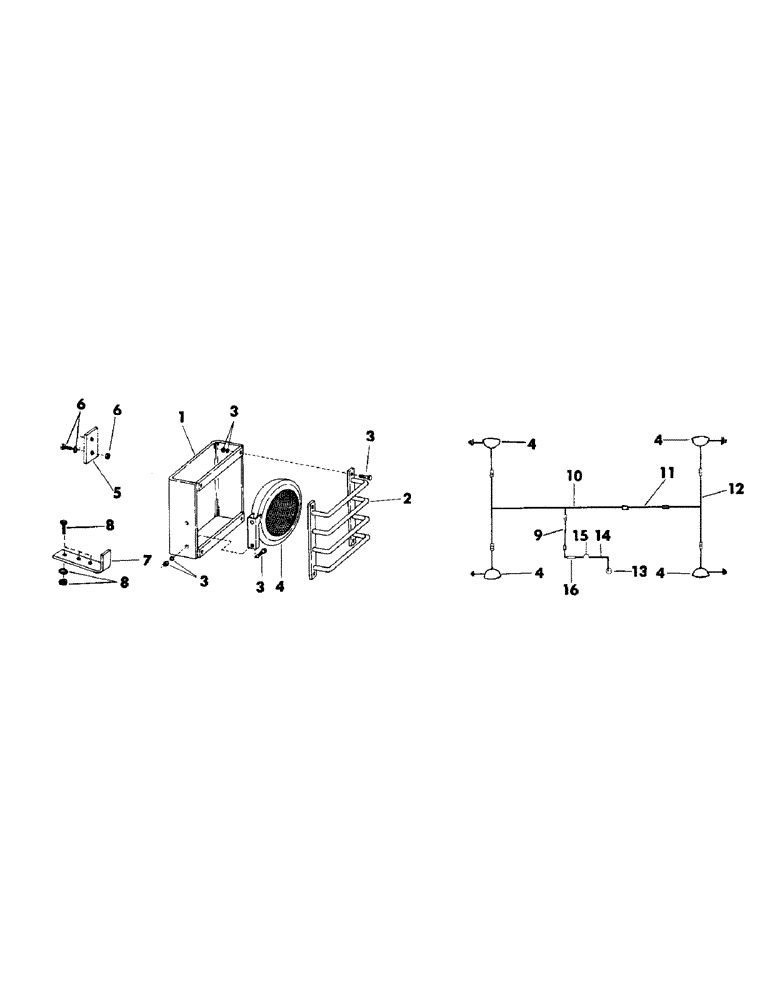

Запчасти Case 35EC (J03) - OPTIONAL WORK LIGHT AND GUARD WITH ELECTRICAL (18) - ATTACHMENT ACCESSORIES

S600615

LAMP, WORK

LIGHT - work with guard - (Includes items 1 thru 8)

4шт.

Change in listing.

1шт.

Added listing.

1шт.

1

S212579

GUARD

4шт.

2

S212578

PROTECTOR

GUARD

4шт.

3

S2402

BOLT

CPSW - 3/8" NC x 1-1/4" GR 5

24шт.

Change in listing.

1шт.

S4397

WASHER

- lock

24шт.

S4222

NUT

- 3/8" NC

24шт.

4

S204221

LIGHT

4шт.

5

S86493

SPACER

- (Used when work light is mounted to bottom cab and boom) - (Mounts on back of item 1)

4шт.

6

S2471

BOLT

CPSW - 7/16" NC x 1-1/4" GR 5

8шт.

Change in listing.

1шт.

S17086

NUT

- 7/16"

8шт.

Change in listing.

1шт.

7

S214615

BRACKET - (Used when work light is mounted above cab window) - (Welded on back of item 1)

4шт.

8

S2377

SCREW

CPSW - 5/16" NC x 1-1/4" GR 5

12шт.

Change in listing.

1шт.

S7381

WASHER

- flat - 5/16"

12шт.

231-1445

NUT,5/16"-18, GB

NUT - 5/16" NC

12шт.

Change in listing.

1шт.

9

S208710

WIRE - jumper - 14 gauge 58" long - (Used with high cab only)

1шт.

10

S214635

WIRE ASSEMBLY - 14 gauge 340" long

1шт.

11

S86527

WIRE - jumper - 14 gauge 109" long - (Used with "E" boom dipper stick only)

1шт.

12

S86526

WIRE ASSEMBLY - 14 gauge 27" long

1шт.

13

S76366

SWITCH

- ignition - Delco-Remy - #1116668 or F.E.

1шт.

14

2S06233

WIRE - jumper - 14 gauge 5" long

1шт.

15

S16866

SWITCH

- light

1шт.

16

S209089

HARNESS

WIRE ASSEMBLY - 14 gauge 8" long - (Includes fuse holder)

1шт.

S16869

HOLDER

- fuse

1шт.
