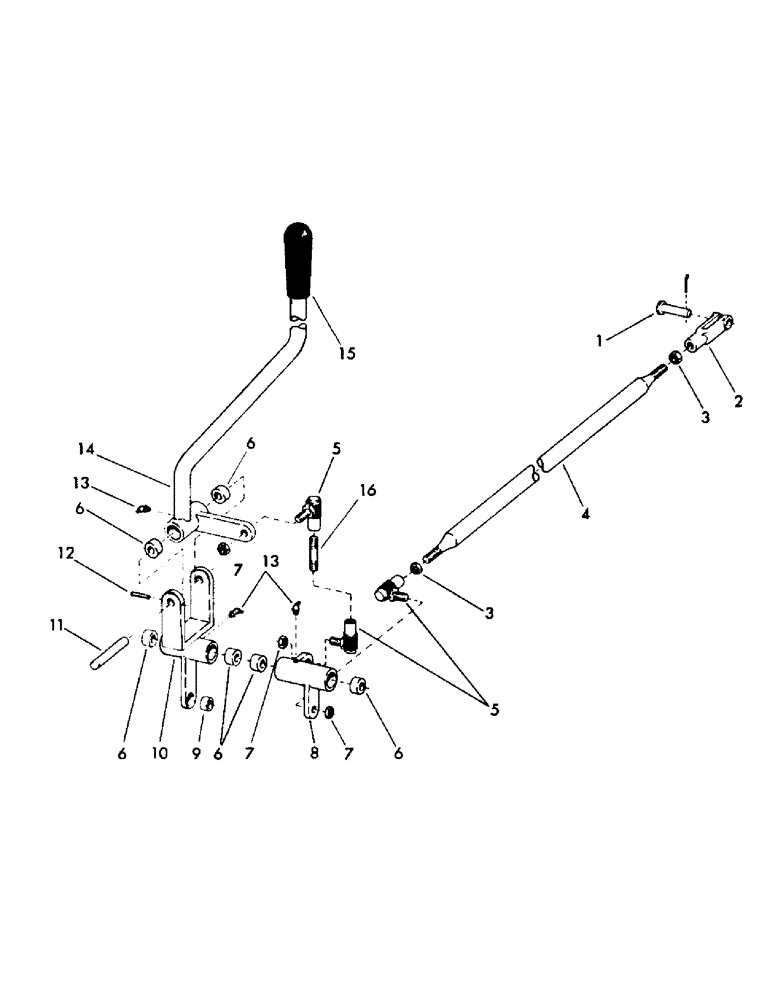

Запчасти Case 35EC (J02) - (OPTIONAL) DUAL CONTROL LINKAGE, (USED AS HOIST AND HYDRAULIC ATTACHMENT - LEVER) (18) - ATTACHMENT ACCESSORIES

1

87016624

CLEVIS PIN,3/8" x 1 1/4"

- 3/8" x 1 1/4"

1шт.

4627

COTTER PIN

PIN - cotter - 1/8" x 1" long

1шт.

2

12514

CIRCLIP

YOKE

1шт.

3

4243

SPRING COMPRESSOR

NUT - jam - 3/8" NF

2шт.

4

201576

ROD - link

1шт.

5

27134

BALLJOINT

3шт.

6

63168

BEARING

6шт.

7

17153

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

NUT - self locking - 3/8" NF

3шт.

8

208512

VALVE

BELLCRANK

1шт.

9

40815

ENGINE MOUNT

BEARING

1шт.

10

208513

CYLINDER BLOCK

BELLCRANK

1шт.

11

77485

PIN

1шт.

12

5323

PIN

- roll

1шт.

13

49793

GUARD

FITTING - grease - 1/4" NPT (65 degrees)

3шт.

14

38772

SPINDLE

LEVER

1шт.

15

63411

KNOTTER

GRIP - handle

1шт.

16

77484

STUD

1шт.
