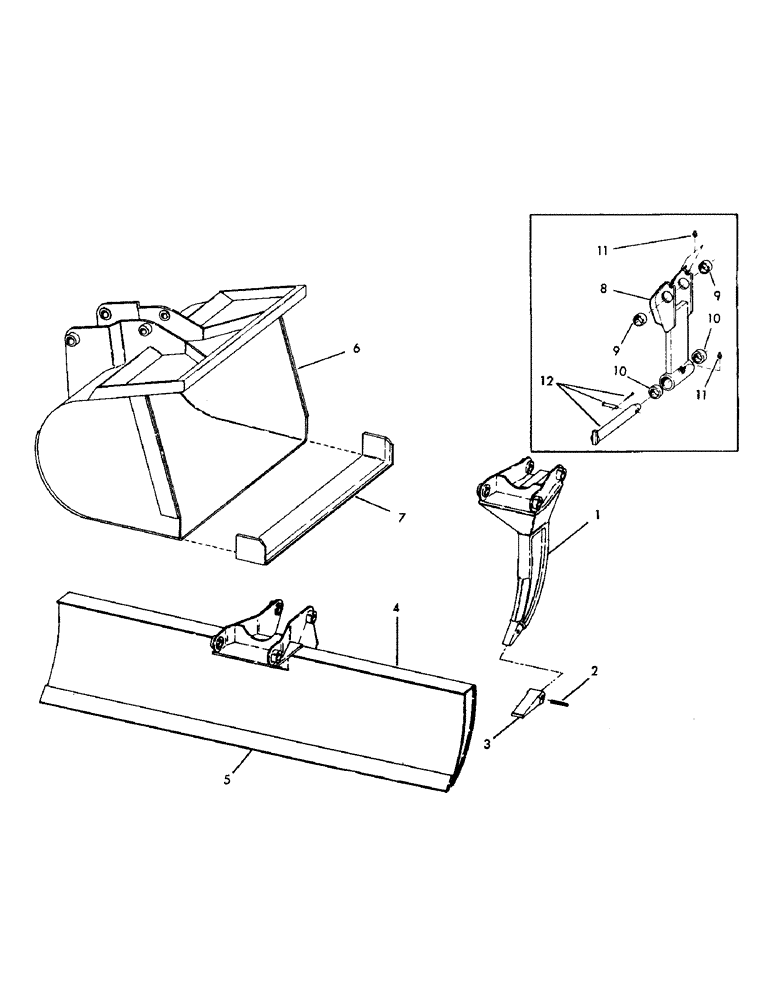

Запчасти Case 35EC (F04) - BACKDRAG BLADE, RIPPER AND SNOW BUCKET (18) - ATTACHMENT ACCESSORIES

1

52887M1

RIPPER - (Includes items 2 and 3)

1шт.

2

7895

WASHER

PIN - roll - 1/2" x 3" long

1шт.

3

25334M1

TIP - replaceable

1шт.

4

54037

SCREW

BLADE - backdrag - 8" - (Includes item 5)

1шт.

5

69345

EDGE - cutting - (Blade)

1шт.

6

950530M1

BUCKET - snow - 2 cubic yards - (Includes item 7)

1шт.

7

206946

EDGE - cutting - (Bucket)

1шт.

8

209890

LINK - (Used with ripper tooth and backdrag) - (Includes items 9 and 10)

1шт.

210256

LINK - (Used with snow bucket) - (Includes items 9 and 10)

1шт.

9

202073

BUSHING

2шт.

10

202070

STEERING KNUCKLE

BUSHING

2шт.

11

12031

FITTING - grease - 1/8" NPT x (Straight)

3шт.

12

200960M1

PIN

1шт.

10813

RETAINER COLLAR

PIN - clevis - 1/2" x 2.391" grip length - (Used with snow bucket)

1шт.

61972

PIN - clevis - 1/2" x 3.266" grip length - (Used with ripper tooth and backdrag)

1шт.

4641

PIN

- cotter - 5/32" x 1" long

1шт.
