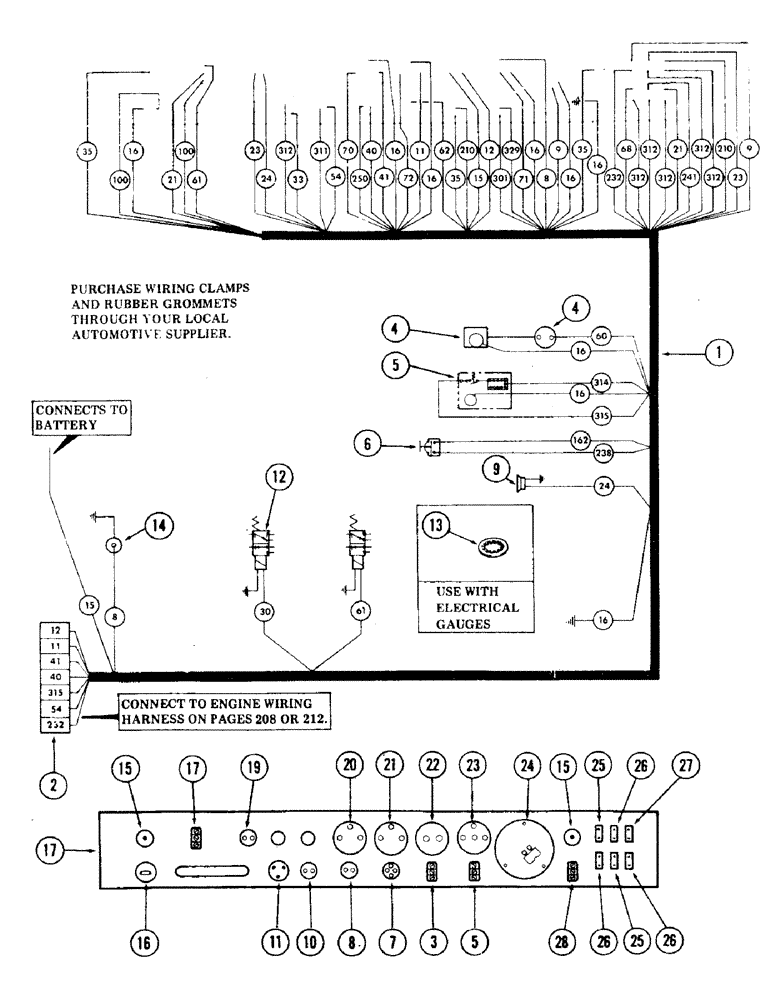

Запчасти Case 35 (204) - INSTRUMENT PANEL AND TURNTABLE WIRING HARNESS, (USED ON UNITS WITH PIN 6266131 THRU 6266300) (55) - ELECTRICAL SYSTEMS

1

S610693

HARNESS

WIRING HARNESS, instrument panel and turntable - (Used on units with PIN 6266131 thru 6266240)

1шт.

S612911

HARNESS

WIRING ASSEMBLY, instrument panel and turntable - (Used on units with PIN 6266241 and after)

1шт.

2

S99519

CONTAINER

CONNECTOR, electrical - (9 contact) - (Female)

1шт.

3

S88636

IGNITION SWITCH

SWITCH, panel light

1шт.

4

REF

INSTRUCTION

HEATER, hot water - (For breakdown, see Fig. 238)

1шт.

SWITCH, heater - (See item 11 on Fig. 238)

1шт.

5

S88636

IGNITION SWITCH

SWITCH, swing lockout override - (Optional)

1шт.

6

S109871

SWITCH

BUTTON, fast hoist (In left control handle) - (Used on units with PIN 6266131 thru 6266240)

1шт.

S218252

SWITCH

BUTTON, fast hoist - (In left control handle) - (Used on units with PIN 6266241 and after)

1шт.

7

S225028

IGNITION SWITCH

SWITCH, wiper

1шт.

8

D34924

SWITCH

BUTTON, cold start - (Optional)

1шт.

9

S203189

HORN

1шт.

10

D34924

SWITCH

BUTTON, starter

1шт.

11

S76366

SWITCH

ignition - (Used on units with PIN 6266131 thru 6266240)

1шт.

S108413

SWITCH

ignition - (Used on units with PIN 6266241 and after)

1шт.

D36822

KEY

ignition

1шт.

12

REF

INSTRUCTION

VALVE, solenoid cartridge - (Used with fast hoist and drive brake circuits) - (For breakdown, see Fig. 182 or 184)

2шт.

13

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, Int Tooth, #8

20шт.

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

20шт.

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER, lock - 1/4" - (Internal tooth)

20шт.

14

SENDING UNIT, fuel gauge - (See item 4 on Fig. 38)

1шт.

214-1202

CLAMP

- (Fuel gauge, Serial Range: wire-turntable)

3шт.

S48576

NUT

speed

3шт.

15

S85560

LIGHT

panel - (Used on units with PIN 6266131 thru 6266240)

2шт.

S107072

BULB

light - (Used on units with PIN 6266131 thru 6266240)

2шт.

S28822

LAMP

LIGHT, panel - (Used on units with PIN 6266241 and after)

2шт.

71421

BULB,R5W, 12V, 5W

light - (Used on units with PIN 6266241 and after)

2шт.

16

S96034

LIGHT

brake warning

1шт.

S97035

BULB

light

1шт.

17

S108079

SWITCH

drive brake

1шт.

18

PANEL, instrument - (See item 2 on Fig. 50)

1шт.

19

D34924

SWITCH

BUTTON, horn

1шт.

20

S27827

GAUGE

oil pressure - (Used on units with PIN 6266131 thru 6266240)

1шт.

S108397

ELECTRICAL GAUGE

GAUGE, oil pressure - (Used on units with PIN 6266241 and after)

1шт.

21

S27824

ELECTRICAL GAUGE

GAUGE, engine temperature - (Used on units with PIN 6266131 thru 6266240)

1шт.

S108395

GAUGE

engine temperature - (Used on units with PIN 6266241 and after)

1шт.

22

S235629

AMMETER

GAUGE, ammeter - (Used on units with PIN 6266131 thru 6266240)

1шт.

S110893

AMMETER

GAUGE, ammeter - (Used on units with PIN 6266241 and after)

1шт.

23

S27829

ELECTRICAL GAUGE

GAUGE, fuel - (Used on units with PIN 6266131 thru 6266240)

1шт.

S108399

ELECTRICAL GAUGE

GAUGE, fuel - (Used on units with 6266241 and after)

1шт.

24

S514333

HOURMETER

1шт.

A27780

FLANGE

DAMPER

1шт.

173-62

SCREW, machine - no. 6 NF x 9/16"

3шт.

129-13

NUT,#4-40

- no. 6 NF

3шт.

25

S231438

BREAKER

circuit - (10 amp)

2шт.

26

S231439

CIRCUIT-BREAKER

BREAKER, circuit - (15 amp)

3шт.

27

S231437

BREAKER

circuit - (25 amp)

1шт.

28

S88636

IGNITION SWITCH

SWITCH, work light - (Optional)

1шт.
