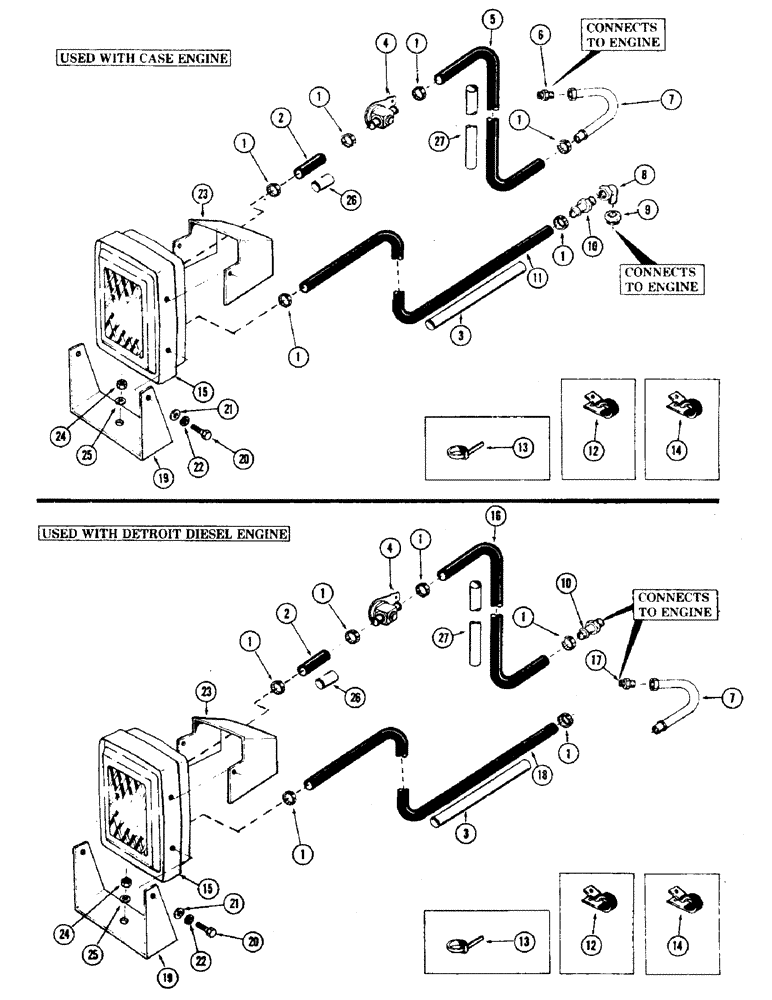

Запчасти Case 35 (236) - HEATER AND HOSES (50) - CAB CLIMATE CONTROL

1

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP

6шт.

2

S49608

HOSE

low pressure - (Bulk) - 1 piece - 5/8" ID x 4" long

1шт.

3

S113778

CONDUIT

1шт.

4

S223937

VALVE

heater

1шт.

5

S49608

HOSE

low pressure - (Bulk) - 1 piece - 5/8" ID x 110" long

1шт.

6

218-1026

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

ADAPTER - (5/8" tube) - 7/8" - 14 male x 3/8" NPT male - 37 degrees flared

1шт.

7

S232219

TUBE,0.62" OD x 3.06, 4.68" L

coolant

1шт.

8

217-1019

ELBOW,1/2" - 14 Female x 1/2" - 14 Male

90 degrees pipe - 1/2" NPT female x 1/2" NPT male

1шт.

9

221-93

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING, reducer - 1/2" NPT female x 3/4" NPT male

1шт.

10

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

INSERT, hose - 5/8" ID x 1/2" NPT male

1шт.

11

S49608

HOSE

low pressure - (Bulk) - 1 piece - 5/8" ID x 134" long

1шт.

12

R14668

CLAMP

- (Secures hoses under floor plate and engine flywheel) - (Use existing hardware to mount 3 clamps)

4шт.

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC - (Use with clamp to stud)

1шт.

195-525

WASHER,3/8", SAE

flat - 3/8"

1шт.

13

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP, CABLE

1шт.

14

R14668

CLAMP

- (Secures hoses to engine block)

2шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

195-525

WASHER,3/8", SAE

flat - 3/8"

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

REF

INSTRUCTION

HEATER - (For breakdown, see Fig. 238)

1шт.

16

S49608

HOSE

low pressure - (Bulk) - 1 piece - 5/8" ID x 115" long

1шт.

17

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - (5/8" long) - 7/8" - 14 male x 3/4" NPT male - 37 degrees flared

1шт.

18

S49608

HOSE

low pressure - (Bulk) - 1 piece - 5/8" ID x 135" long

1шт.

19

S513714

BRACKET, heater support

1шт.

20

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

21

195-518

WASHER,1/4", SAE

flat - 1/4"

4шт.

22

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

23

S237006

SHROUD, heater

1шт.

24

131-206

NUT,3/8"-16

NUT, self locking - 3/8" NC

1шт.

25

195-104

WASHER,3/8"

flat - 3/8"

1шт.
