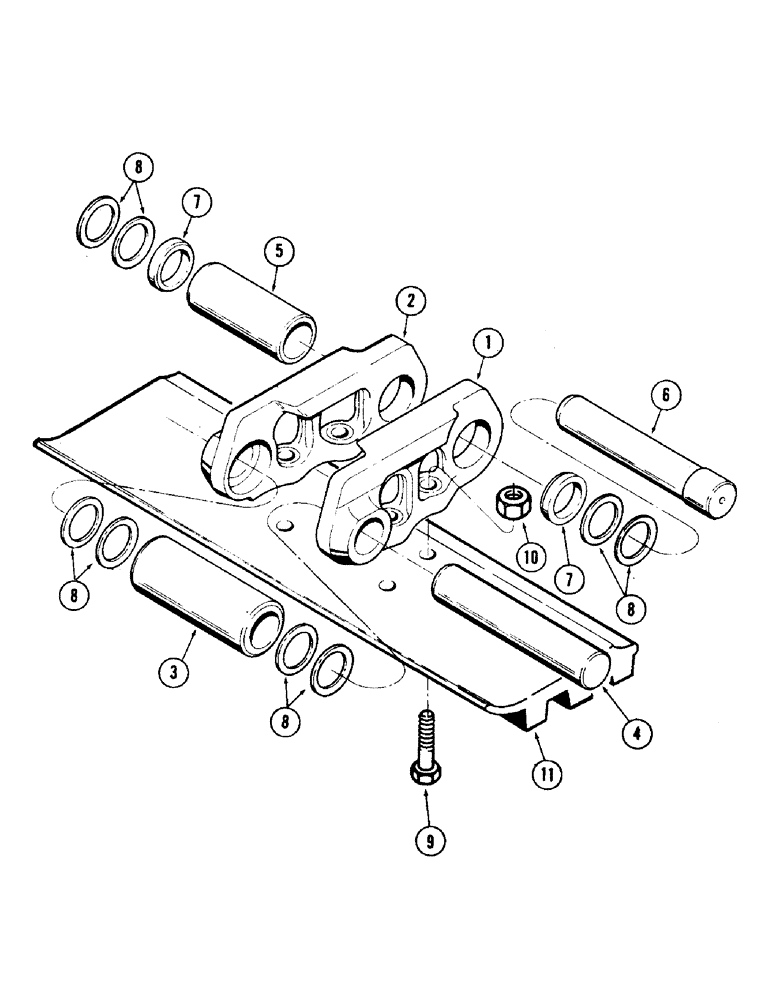

Запчасти Case 35 (012) - TRACK SHOES AND LINKS, (24" WIDE TRACK ASSEMBLY), TRACK SHOES AND LINKS (30" WIDE TRACK ASSEMBLY) (48) - TRACKS & TRACK SUSPENSION

S232395

CHAIN (CE)

CHAIN ASSEMBLY 50 unit, sealed track

2шт.

1

D31710

LINK

- track R.H.

50шт.

2

D31709

LINK

- track, L.H.

50шт.

3

D45075

SLEEVE,35.23mm ID x 50.77mm OD x 115.16mm L

track long

49шт.

4

R14893

PIN,34.9mm OD x 176.22mm L

track, standard

49шт.

5

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

short master

1шт.

6

D36511

PIN

master track

1шт.

7

D45272

BUSHING

spacer

2шт.

8

D45076

BELLEVILLE SPRING

SEAL, washer

196шт.

9

S113061

BOLT

special

200шт.

10

S113062

NUT

special

200шт.

11

R25986

TRACK SHOE

SHOE - 24", 3 bar grouser

50шт.

S237785

CHAIN (CE)

CHAIN ASSEMBLY 50 unit, sealed track

2шт.

1

D31710

LINK

track R.H.

50шт.

2

D31709

LINK

track L.H.

50шт.

3

D45075

SLEEVE,35.23mm ID x 50.77mm OD x 115.16mm L

track long

49шт.

4

R14893

PIN,34.9mm OD x 176.22mm L

track, standard

49шт.

5

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

short master

1шт.

6

D36511

PIN

master track

1шт.

7

D45272

BUSHING

spacer

2шт.

8

D45076

BELLEVILLE SPRING

SEAL, washer

196шт.

9

S113061

BOLT

special

200шт.

10

S113062

NUT

special lock

200шт.

11

S116419

CHAIN (CE)

SHOE, 30", 3 BAR GROUSER

50шт.
