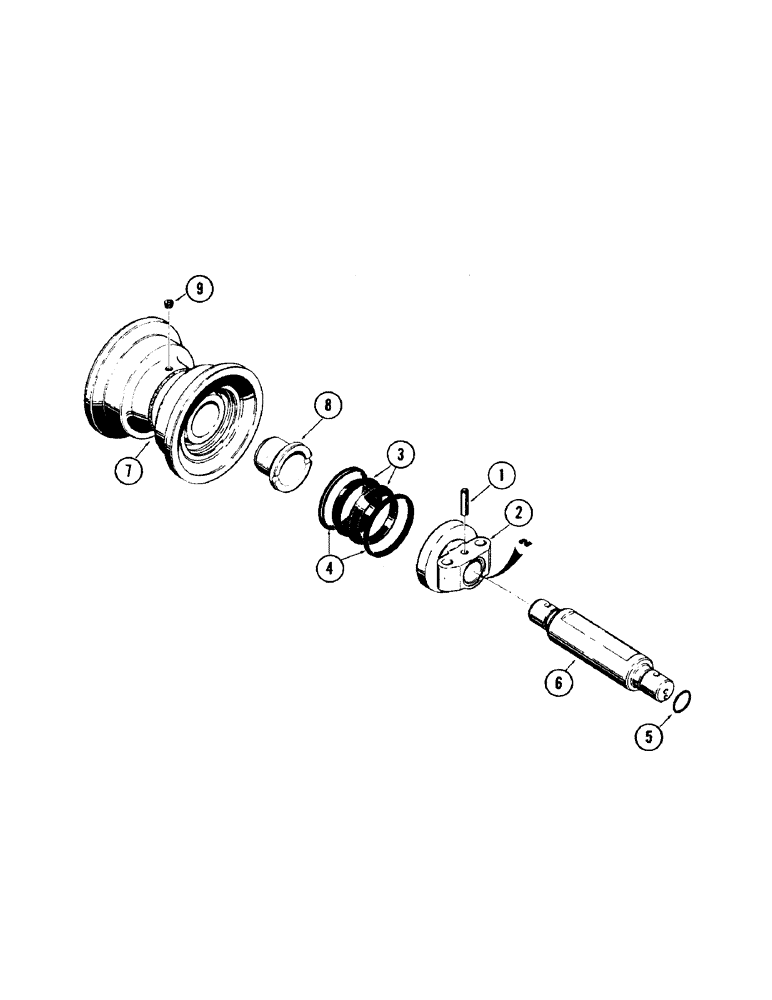

Запчасти Case 35 (010) - TRACK ROLLER, (LOWER), CARRIER ROLLER, (UPPER) (48) - TRACKS & TRACK SUSPENSION

R33552

ROLL

ER, track

14шт.

1

R33563

ROLL PIN

PIN, cap retaining

2шт.

2

R33560

BUSHING

CAP, end collar

2шт.

R33564

SEAL

face

4шт.

3

NSS

NOT SOLD SEPARAT

SEAL, rubber

2шт.

4

NSS

NOT SOLD SEPARAT

RING, sealing

2шт.

5

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL, "o" ring

2шт.

6

R33561

SHAFT

roller

2шт.

R33558

ROLLER

HUB ASSEMBLY

1шт.

7

NSS

NOT SOLD SEPARAT

HUB, roller

1шт.

8

R33556

BUSHING,50.28mm ID x 70.5mm OD x 46mm L

roller

2шт.

9

R33557

PLUG

roller

1шт.

R33965

ROLLER

ROLER, track carrier

4шт.
