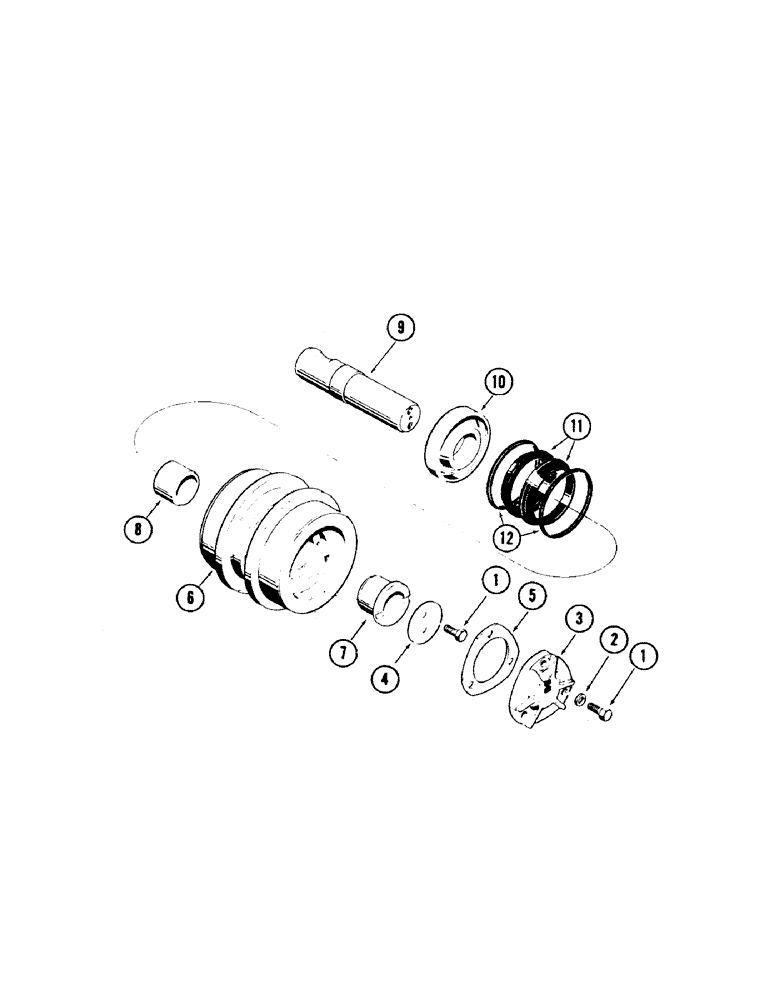

Запчасти Case 35 (010[1]) - CARRIER ROLLER (UPPER) (48) - TRACKS & TRACK SUSPENSION

1

S112314

CPSW, metric

5шт.

2

D32117

COPPER WASHER

WASHER, COPPER, Hardened

3шт.

3

R33959

CYLINDER END CAP

CAP, roller

1шт.

4

R33960

PLATE

RETAINER, washer

1шт.

5

R33964

GASKET

cap

1шт.

R33967

CARRIER

HUB ASSEMBLY, roller

1шт.

6

NSS

NOT SOLD SEPARAT

HUB, roller

1шт.

7

R33951

BUSHING

roller

1шт.

8

R33958

BUSHING

roller

1шт.

R33969

SHAFT

ASSEMBLY, roller

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT, roller

1шт.

10

R33962

RETAINER

seal

1шт.

R33607

SEAL

face

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL, rubber

2шт.

12

NSS

NOT SOLD SEPARAT

RING, sealing

2шт.
