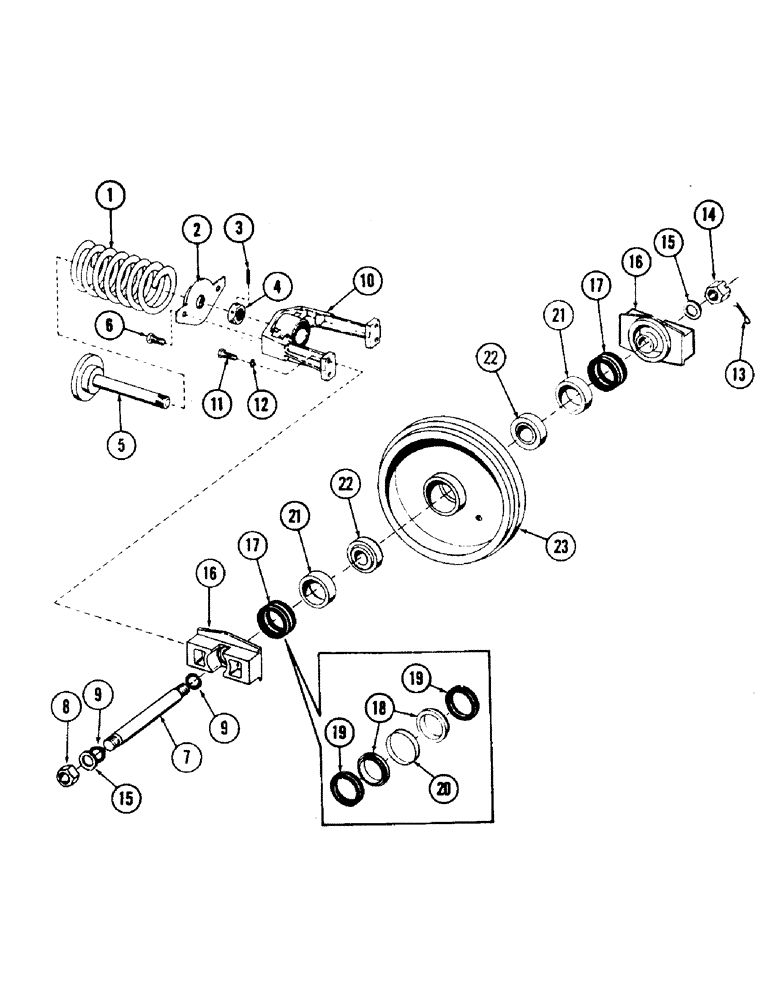

Запчасти Case 35 (006) - IDLER WHEEL AND TRACK ADJUSTER (48) - TRACKS & TRACK SUSPENSION

S512125

SHOCK ABSORBER

SPRING, track tension

1шт.

1

S215129

SPRING

1шт.

2

S233910

PLATE

end

1шт.

3

138-143

LOCK PIN,1/4" x 2 1/4", Slotted

PIN, roll - 1/4" dia. x 2-1/2"

1шт.

4

S87010

NUT

1шт.

5

S215127

GUIDE

ASSEMBLY

1шт.

6

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

4шт.

7

S218864

IDLE SHAFT

SHAFT, idler wheel

1шт.

8

131-92

LOCK NUT,1 1/2"-12

NUT, hex lock - 1-1/2" NF

1шт.

9

S93149

O-RING

"O" RING

2шт.

10

S602025

YOKE

front idler

2шт.

1

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

13

132-102

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

1шт.

14

25-1324

SLOTTED NUT,1 1/2"-12, G5

NUT, castle - 1-1/2"

1шт.

15

D36065

WASHER

idler wheel shaft

2шт.

16

S505503

GUIDE

idler

2шт.

17

D35267

SEAL

face

1шт.

18

NSS

NOT SOLD SEPARAT

BODY, seal - split

1шт.

D36826

SEAL KIT

KIT, repair

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL, rubber

2шт.

20

NSS

NOT SOLD SEPARAT

RETAINER, plastic

2шт.

21

D36069

RING

seal retaining

2шт.

22

A27732

BEARING CUP

BEARING

2шт.

#22---ALSO REQUIRES PN 40413 CONE.

1шт.

23

D42886

FRONT IDLER

WHEEL, idler

2шт.
