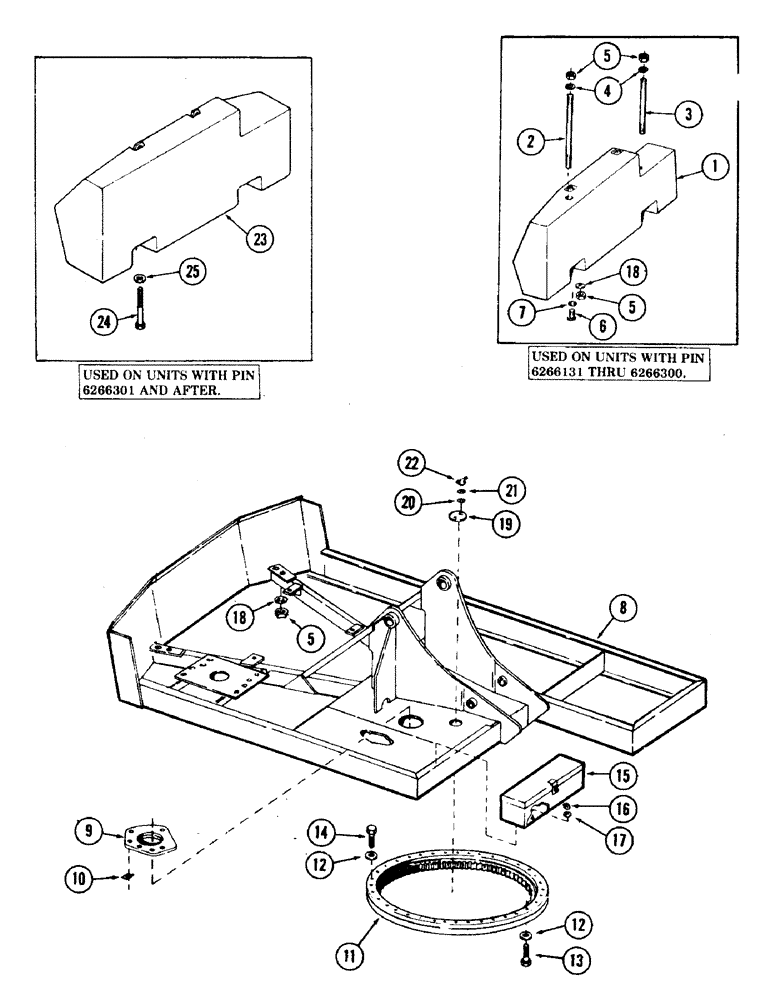

Запчасти Case 35 (042) - TURNTABLE, COUNTERWEIGHT, BEARING AND ATTACHING PARTS (39) - FRAMES AND BALLASTING

1

S612871

COUNTERWEIGHT

1шт.

2

S113747

STUD - long

1шт.

3

S110080

STUD - short

1шт.

4

196-55

WASHER,1.06" ID x 2.5" OD x 0.13" Thk

- flat - 1"

2шт.

5

131-20

LOCK NUT,1"-8, GB

NUT - lock - 1" NC

2шт.

6

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- 1-1/4" x 2-1/2" NC (Grade 5)

2шт.

7

196-65

WASHER,1 3/8" x 2 1/2" x .180", HDN

2шт.

8

S611906

TURNTABLE

1шт.

9

S510936

PLATE

- swing reducer mounting

1шт.

10

S77916

SHIM,.005" Thk

Reducer plate to turntable .005" Thk

1шт.

S77917

SHIM,.010" Thk

Reducer plate to turntable .010" Thk

1шт.

S77918

SHIM,.015" Thk

Reducer plate to turntable .015" Thk

1шт.

S77919

SHIM,.030" Thk

Reducer plate to turntable .030" Thk

1шт.

S77920

SHIM,.060" Thk

Reducer plate to turntable .060" Thk

1шт.

S84889

SHIM,.003" Thk

Reducer plate to turntable .003" Thk

1шт.

S84890

SHIM,.007" Thk

Reducer plate to turntable .007" Thk

1шт.

11

S508668

SLEWING RING

BEARING - turntable

1шт.

12

S92353

WASHER

- hardened 5/8"

72шт.

13

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- 5/8" x 2" NC (Grade 8)

36шт.

14

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- 5/8" x 2-1/4" NC (Grade 8)

36шт.

15

S219842

BOX, TOOL

TOOL BOX - (Optional)

1шт.

16

131-52

NUT,3/8"-16, GC

NUT - lock 3/8" NC

4шт.

17

195-525

WASHER,3/8", SAE

- flat 3/8"

4шт.

18

195-2272

WASHER - flat

2шт.

19

S76664

COVER

- (Bearing access and cleaning hole)

1шт.

20

195-103

WASHER,5/16"

- flat 3/8"

2шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

22

S77941

NUT, wing 3/8" NC

2шт.

23

S955958

COUNTERWEIGHT

1шт.

24

13-2048

BOLT - 1/4" x 3" NC (Grade 5) Hex, 1 1/4-7 x 3", G5, Full Thd

2шт.

25

196-65

WASHER,1 3/8" x 2 1/2" x .180", HDN

- flat 1-1/4"

2шт.

26

S108048

LUG

- lift - (Optional) - (For crawler rear) - (Not illustrated)

2шт.

240-13

SHACKLE

- (For crawler front on mast ears) - (Not illustrated)

2шт.
