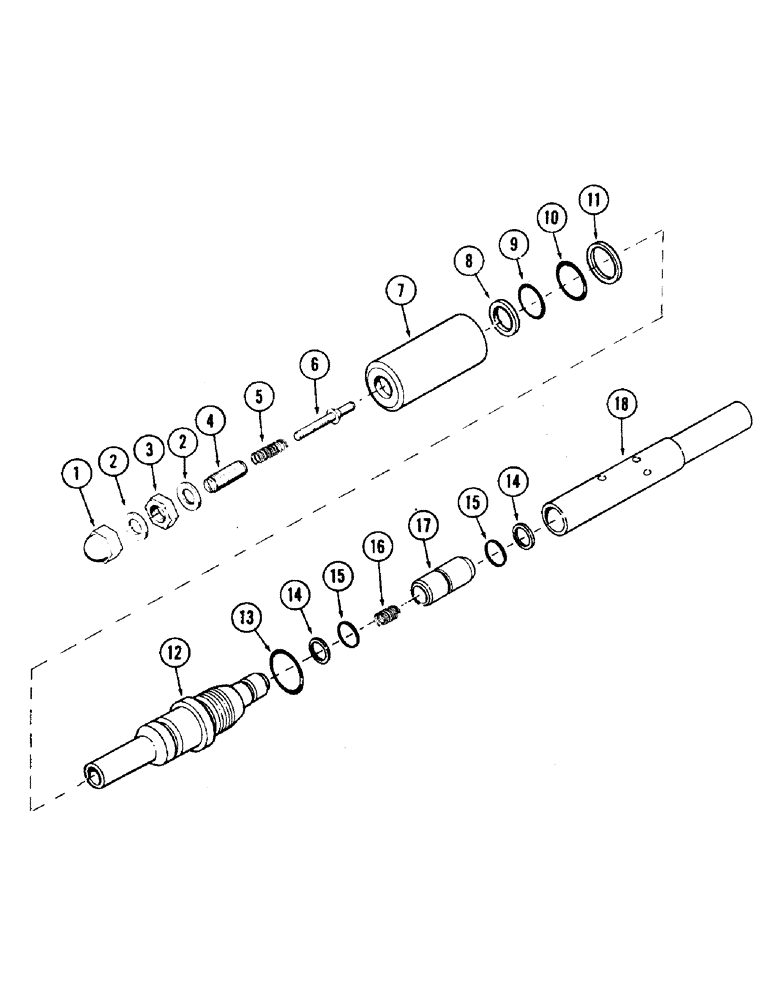

Запчасти Case 35 (200) - MAIN RELIEF CARTRIDGE (35) - HYDRAULIC SYSTEMS

S512272

VALVE

CARTRIDGE, main relief - set at 2650 PSI

2шт.

1

129-536

NUT,Crown, 9/16"-18

1шт.

2

S93370

WASHER

2шт.

3

S93371

NUT

1шт.

4

S113675

SCREW

1шт.

5

S106763

SPRING

1шт.

6

S106770

POPPET

1шт.

7

S113902

CAP

1шт.

8

S113901

RING, back up

1шт.

9

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING

1шт.

10

L15402

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

"O" RING

1шт.

11

S113900

RING, back up

1шт.

12

S113903

PLUG

1шт.

13

S5807

O-RING,0.984" ID x 1.262" OD x 0.139"

"O" RING - .984" ID x 1.250" OD

1шт.

14

C11865

RING

back up

2шт.

15

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

"O" RING

2шт.

16

S62326

SPRING

1шт.

17

S109967

VALVE POPPET

POPPET

1шт.

18

S113904

SLEEVE

1шт.
