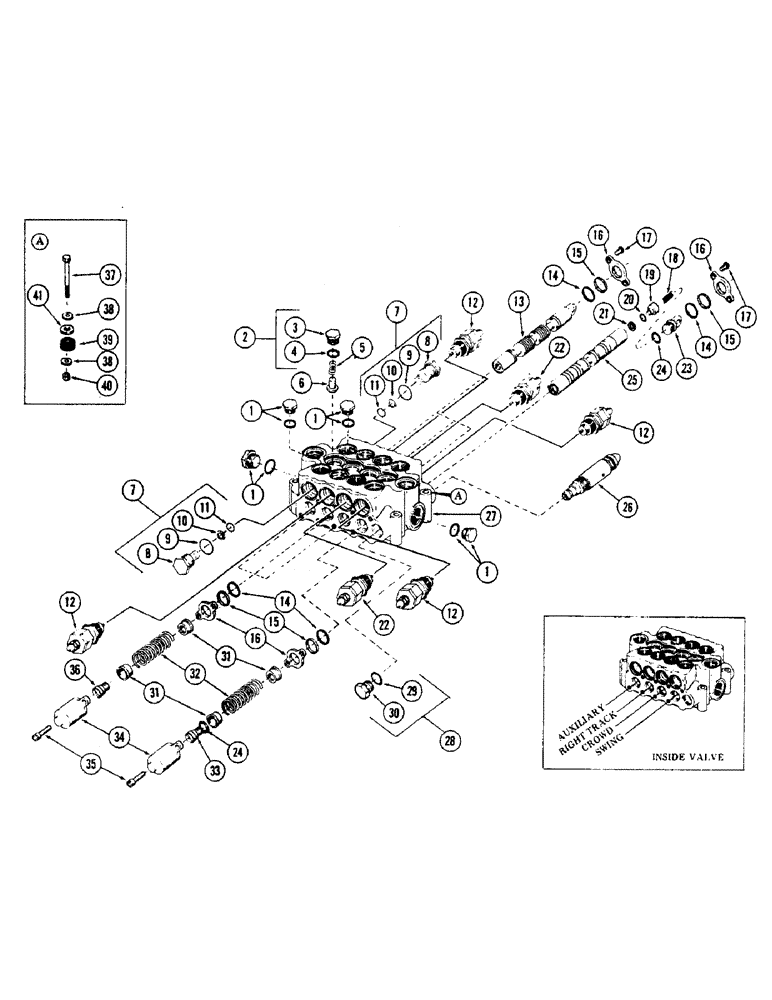

Запчасти Case 35 (198) - 4-SPOOL MAIN CONTROL VALVE, (USED WITH SWING, CROWD, RIGHT TRACK AND AUXILIARY CIRCUITS) (35) - HYDRAULIC SYSTEMS

S513227

VALVE, 4-spool main control - (Inside valve)

1шт.

1

S8985

PLUG

4шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

1шт.

2

S105089

PLUG

ASSEMBLY

4шт.

3

NSS

NOT SOLD SEPARAT

PLUG

1шт.

4

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING

1шт.

5

S13715

SPRING

4шт.

6

S13716

VALVE POPPET

POPPET

4шт.

7

S81690

PLUG

port overload

2шт.

8

NSS

NOT SOLD SEPARAT

PLUG

1шт.

9

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

1шт.

10

S93829

BACK-UP RING,0.609" ID x 0.052" Width

back up

1шт.

11

S5706

O-RING,0.562" ID x 0.75" OD x 0.93"

"O" RING - .549" ID x .750" OD

1шт.

12

REF

INSTRUCTION

CARTRIDGE, port relief - set at 2500 PSI - (For breakdown, see Fig. 202)

4шт.

13

NSS

NOT SOLD SEPARAT

SPOOL

3шт.

14

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING

8шт.

15

S62092

WIPER

8шт.

16

S13829

PLATE

seal

8шт.

17

166-25

12 PT SCREW,Flg, 5/16" - 18 x 7/8", Gr 8

SCREW, machine - 3/8" NC x 1/2"

8шт.

18

S62189

SPRING

1шт.

19

S62291

VALVE POPPET

POPPET

1шт.

20

S6476

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

"O" RING - .487" ID x .687" OD

1шт.

21

S84098

BACK-UP RING,1/2" ID x 11/16" OD

back up

1шт.

22

REF

INSTRUCTION

CARTRIDGE, port relief - set at 3000 PSI - (For breakdown, see Fig. 202)

2шт.

23

S62289

END

PLUNGER

1шт.

24

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING - .644" ID x .818" OD

1шт.

25

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

26

REF

INSTRUCTION

CARTRIDGE, main relief - set at 2650 PSI - (For breakdown, see Fig. 200)

1шт.

27

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

28

S105090

PLUG

ASSEMBLY

1шт.

29

NSS

NOT SOLD SEPARAT

PLUG

1шт.

30

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING

1шт.

31

S62288

SEAT

spring

8шт.

32

S113620

SPRING

4шт.

33

S62290

BOLT

special

1шт.

34

S62278

CAP

plunger

4шт.

35

61-616

HEX SOC SCREW,3/8"-16 x 1"

BOLT - 3/8" NC x 1" gr 8 - (Socket head)

8шт.

36

S62292

BOLT

special

1шт.

37

113-482

BOLT - 1/2" NC x 4-3/4" gr 5 - (Mounts, Serial Range: valve-turntable)

4шт.

38

196-10

WASHER,.521" x 2" x .134", HDN

flat - (Special) - (Used on units with PIN 6266131 thru 6266300)

8шт.

39

S110886

MOUNTING PARTS

MOUNT, lord - (Used on units with PIN 6266131 thru 6266300)

4шт.

40

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

4шт.

41

S115695

SPACER

- (Used on units with PIN 6266301 and after)

4шт.
