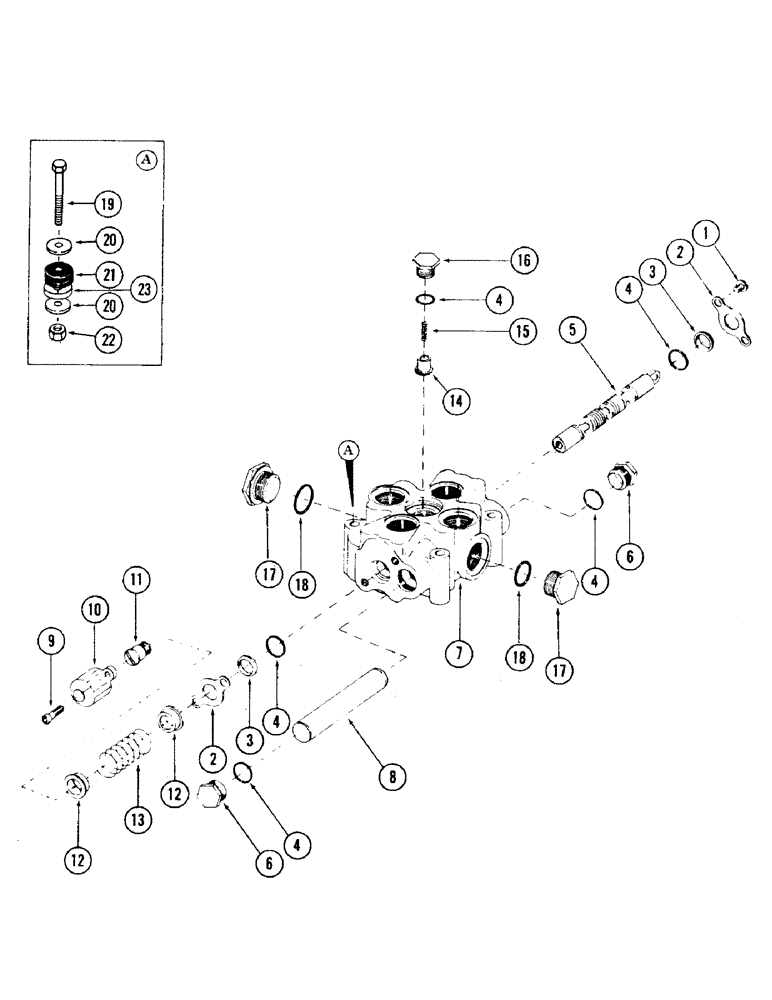

Запчасти Case 35 (192) - 1-SPOOL MAIN CONTROL VALVE, (USED WITH LEVELER CIRCUIT) (35) - HYDRAULIC SYSTEMS

S506848

VALVE, 1-spool main control

1шт.

1

166-25

12 PT SCREW,Flg, 5/16" - 18 x 7/8", Gr 8

SCREW, machine - 3/8" NC x 1/2"

2шт.

2

S13829

PLATE

seal

2шт.

3

S62092

WIPER

2шт.

4

S5807

O-RING,0.984" ID x 1.262" OD x 0.139"

"O" RING - .984" ID x 1.250" OD

5шт.

5

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

6

S13707

PLUG

2шт.

7

NSS

NOT SOLD SEPARAT

HOUSING, valve

1шт.

8

S62276

PLUG

1шт.

9

61-616

HEX SOC SCREW,3/8"-16 x 1"

BOLT - 3/8" NC x 1" gr 8 - (Hexagon socket head)

1шт.

10

S62278

CAP

plunger

1шт.

11

S62292

BOLT

- (Special)

1шт.

12

S62288

SEAT

spring

2шт.

13

S62269

SPRING

1шт.

14

S13716

VALVE POPPET

POPPET

1шт.

15

S13715

SPRING

1шт.

16

S13714

PLUG

1шт.

17

S62190

PLUG

2шт.

18

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING

2шт.

19

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

Mounts valve to turntable Hex, 1/2"-13 x 4 3/4", G5

3шт.

20

S111135

WASHER

flat - (Special) - (Used on units with PIN 6266131 thru 6266300)

6шт.

21

196-10

WASHER,.521" x 2" x .134", HDN

MOUNT, lord - (Used on units with PIN 6266131 thru 6266300)

3шт.

22

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

3шт.

23

S115695

SPACER

- (Under valve) - (Used on units with PIN 6266301 and after)

3шт.
