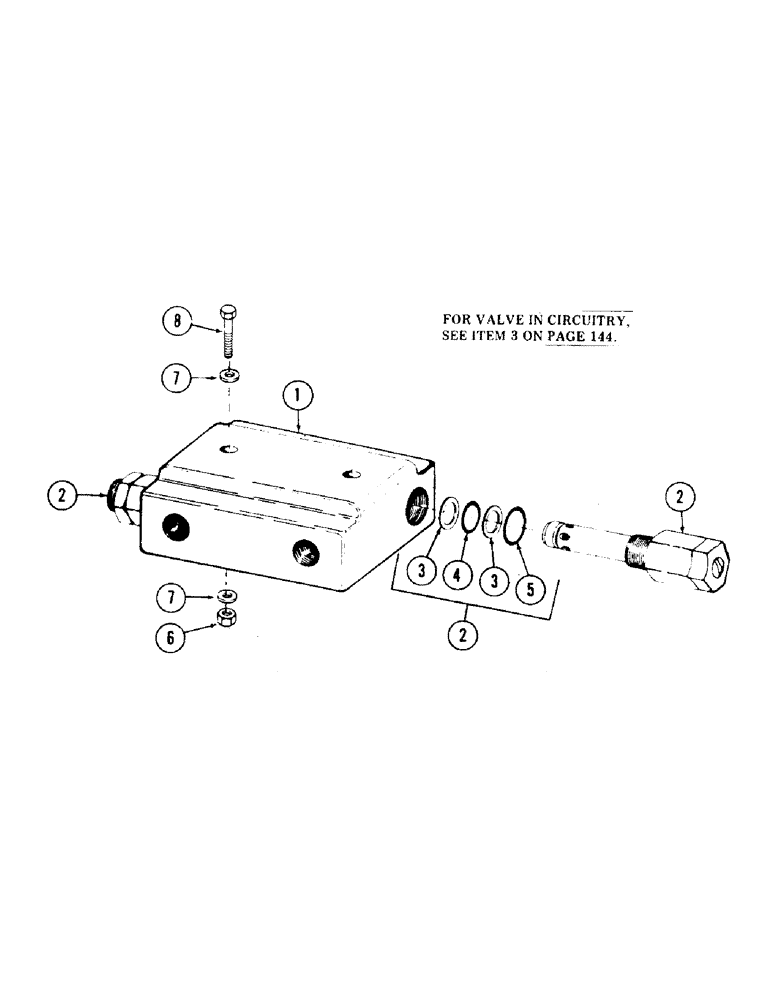

Запчасти Case 35 (188) - SWING INLINE RELIEF VALVE, OPTIONAL LEVELER CHECK VALVE (35) - HYDRAULIC SYSTEMS

S236820

VALVE

swing inline relief

1шт.

1

S114840

HOUSING

valve

1шт.

2

S73968

CARTRIDGE

relief

2шт.

3

D24036

WASHER

RING, back up

2шт.

4

S6483

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

"O" RING - 0924" ID x 1.125" OD

1шт.

5

S6579

O-RING

"O" RING - 1.046" ID x 1.312" OD

1шт.

6

113-462

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

NUT, self locking - 5/16" NC

2шт.

7

195-521

WASHER,5/16", SAE

flat - 3/8"

4шт.

8

113-167

BOLT,Hex, 5/16" - 18 x 4", Gr 5

2шт.
