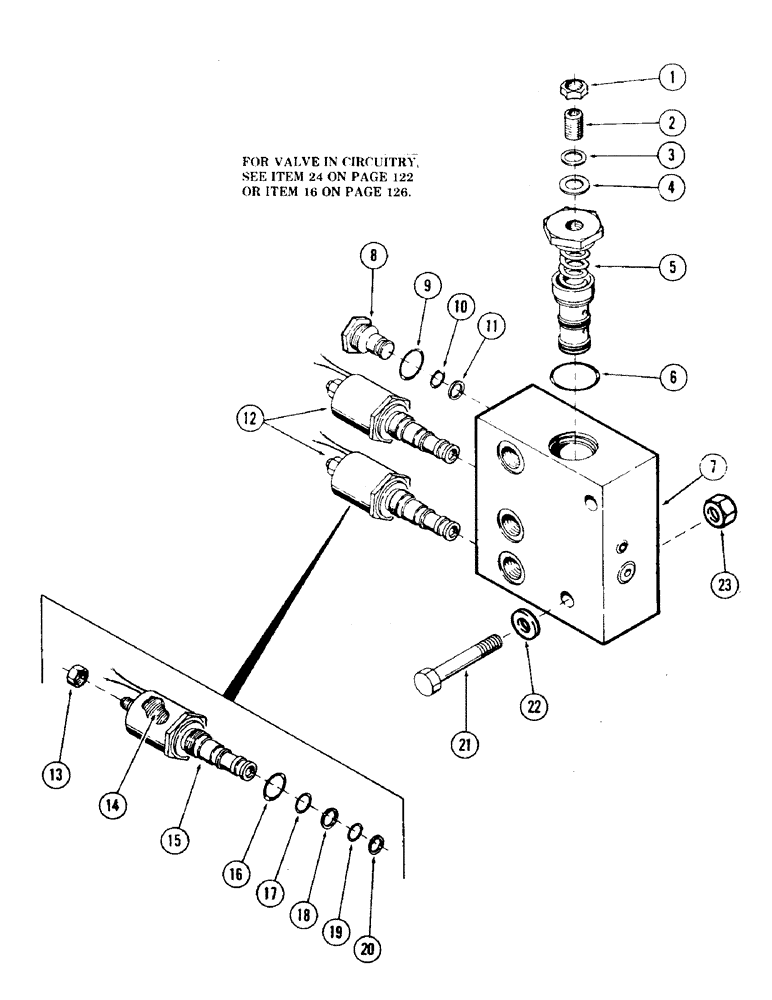

Запчасти Case 35 (182) - SOLENOID MONOBLOCK VALVE, (USED ON UNITS WITH PIN 6266131 THRU 6266300) (35) - HYDRAULIC SYSTEMS

S231451

VALVE

solenoid monoblock

1шт.

1

S109478

NUT

1шт.

2

S109482

SCREW, adjustment

1шт.

3

S109479

WASHER

1шт.

4

S109477

WASHER, special

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY, cartridge

1шт.

6

S5713

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

"O" RING - .987" ID x 1.187" OD

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

8

NSS

NOT SOLD SEPARAT

PLUG

1шт.

9

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING - .644" ID x .818" OD

1шт.

10

S5605

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

"O" RING - .364" ID x .500" OD

1шт.

11

S109476

RING

WASHER, back-up

1шт.

12

S231452

VALVE

CARTRIDGE, solenoid valve

2шт.

13

S109473

NUT

1шт.

14

S109474

COIL

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY, cartridge

1шт.

16

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING - .644" ID x .818" OD

1шт.

17

S5605

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

"O" RING - .364" ID x .500" OD

1шт.

18

S109476

RING

back-up

1шт.

19

S5604

O-RING

"O" RING - .301" ID x .437" OD

1шт.

20

S109475

BACK-UP RING

back-up

1шт.

21

113-138

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

2шт.

22

195-102

WASHER,1/4"

flat - 5/16"

2шт.

23

131-462

NUT,5/16"-18

NUT, self locking - 5/16" NC

2шт.
